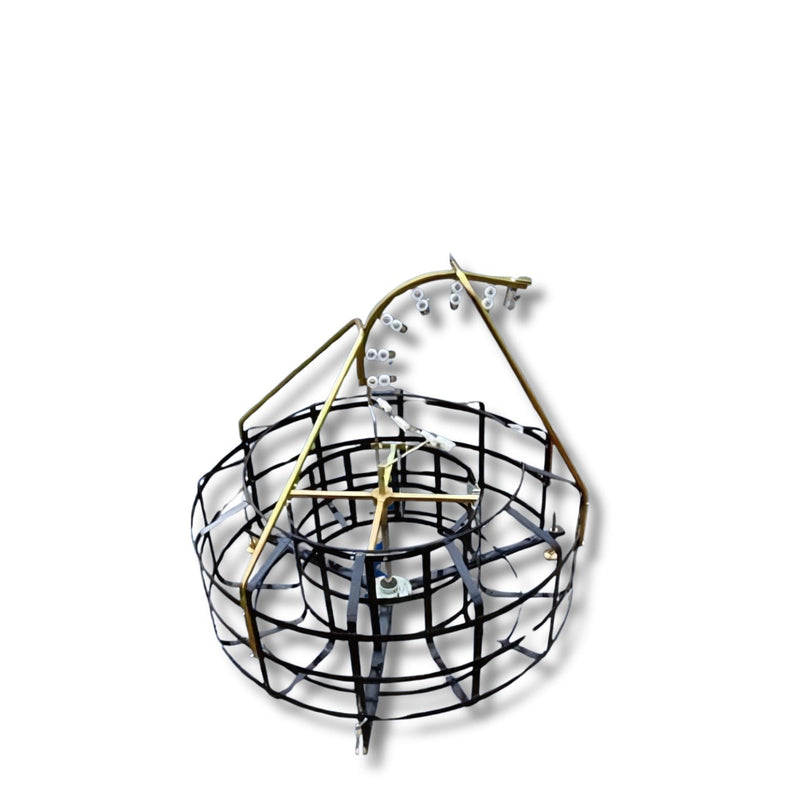

Micro Cable Fleeter (89002)

DESCRIPTION

The Micro Cable Fleeter replaces the manual method of “figure eighting” cable at the midpoint and provides protection and security for the cable. Following installation of the cable in the first leg of the duct route the balance of the cable is removed from the drum and fed into the “Fleeter”, thereby releasing the cable end ready for blowing into the second leg. The Fleeter provides a smooth and simple system while ensuring cable protection from pedestrians or vehicles and prevents contamination from mud, soil or dust.
The Fleeter is designed to work in conjunction with the GMP Breeze or Air Stream Cable Blowing Machine, which provides the cable feed in and out of the “Fleeter”
It has a nominal capacity to store 6500 ft. (2000 meters) of 8.5mm diameter cable.

Note: Please have your microduct O.D. available when ordering to select the correct duct clamp that’s included with your purchase.

SPECIFICATIONS

Cable diameter: 5 – 8.5mm (0.196 in. – 0.334 in.) OD Max
Cable Storage Length: 6500 Feet (2000 Meters) of 8.5mm diameter cable
Microduct Size: 8 mm – 18 mm ø

DIMENSIONS

Basket Diameter: 47.25 in. (1200mm)
Max. Width: 50.6 in. (1825mm)
Height: 55.9 in (1420mm)

Common Questions About the GMP Micro Cable Fleeter

What is the GMP Micro Cable Fleeter?
The GMP Micro Cable Fleeter is a cable management system designed to safely store and manage micro cable at the midpoint of a duct route during blowing operations.

What is the GMP Micro Cable Fleeter used for?
It replaces manual figure eighting by temporarily storing cable after the first leg of a duct route, then smoothly feeding the cable back out for installation into the second leg.

Who is the GMP Micro Cable Fleeter designed for?
This system is designed for fiber installation contractors and telecommunications crews performing micro cable blowing on multi leg duct routes.

What makes the GMP Micro Cable Fleeter different from manual cable handling?
The Fleeter protects cable from contamination, pedestrians, and vehicles, prevents twisting or damage, and works in conjunction with GMP Breeze or Air Stream Cable Blowing Machines for controlled cable feed.

At a Glance

• Stores up to 6500 feet of 8.5 mm diameter cable
• Designed for cable diameters from 5 to 8.5 mm
• Compatible with microduct sizes from 8 mm to 18 mm
• Protects cable from damage and contamination during installation
