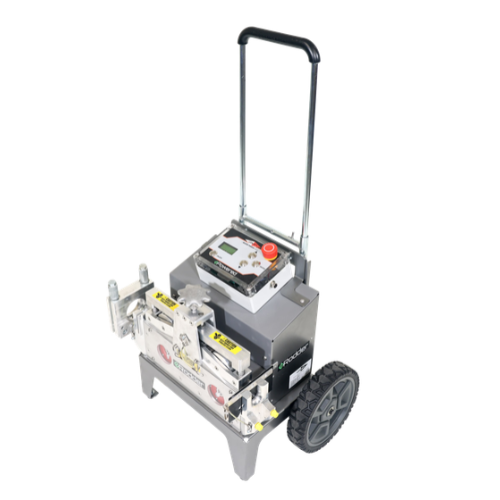

eRodder Low Profile Electric Duct Rod Pusher (77200)

IMPORTANT NOTICE: DUCT ROD PUSHER REQUIRES A CUSTOM SHIPPING QUOTE

Due to varying freight/shipping fees, eRodder cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please include the following information for faster processing:

• First & Last Name:
• Company Name (if applicable):
• Shipping Address:
• Part Name:
• Part Number:

DESCRIPTION

Experience unmatched efficiency and convenience with the GMP eRodder Low Profile, powered by DEWALT FLEXVOLT® battery technology.

Designed for quiet, emission-free operation, this innovative tool delivers 180 lbs of force at an impressive 125 feet per minute. Perfect for professionals, it offers:

• Variable Speed Control: Operate with precision using the remote hand control or
  optional foot control.
• Ultimate Maneuverability: Mounted on a three-wheel cart with airless off-road tires
  and a foldable handle for easy transport.
• Enhanced Safety: Quiet operation improves jobsite communication, while the rod
  distance counter and duct clamps ensure accuracy and stability.
• One-Man Operation: Simplify your workflow with a tool designed for efficiency and
  ease.
• Optional Foot Pedal Control: Variable speed with foot operated forward and reverse allowing enhanced precision and exceptional ease of use.


With a rod capacity of 1/4 – 9/16 inch (6.4 – 14.3mm), with proven DEWALT battery technology, the eRodder LP is your go-to solution for duct rod pushing. Say goodbye to engines and emissions—upgrade to the future of duct rod pushing today!

SPECIFICATIONS

Operating Capacities

• Duct Rod Size: 1/4—9/16 inch (6.4—14.3mm)
• Max Pushing Load: 180lbs. (800 N)
• Max Pushing Speed: 125 feet/minute (38m/min)


eRodder Dimensions

• Height: 44 in (1118mm)
• Height Folded: 30 in (762mm)
• Length: 52 in (1321mm)
• Width: 26 in (660mm)
• Weight: 80 lbs. (36kg)

Battery

• Battery Type: DEWALT FLEXVOLT® 12.0 Ah Battery (DCB612)
• Battery Size: 60V
• Height: 7.75 in (197mm)
• Length: 7.875 in (200mm)
• Width: 3.625 in (92mm)
• Weight: 3.4 lbs. (1.5kg)

eRodder Manual

WHAT'S INCLUDED

• eRodder
• Duct Collet, Size Your choice*
• 60V DEWALT FLEXVOLT® 12.0 Ah Battery (DCB612)
• DEWALT Charger
• Trigger control (foot pedal optional)
  manual

*Available Duct Clamp Sizes: (OD Controlled)
.75” P/N 89033
1” P/N 89021
1.25” P/N 89041
1.50” P/N 89061
2” P/N 89071

Accessory Foot Pedal with 15 ft Cable PN 71800

• Allows the user to work hands-free at a safe distance
• Variable Speed
• 15 ft heavy-duty cord
• Foot operated forward and reverse
• Durable powder-coated frame
• Designed to be used in damp environments

Common Questions About the GMP eRodder Low Profile Electric Duct Rod Pusher (77200)

What is the GMP eRodder Low Profile Electric Duct Rod Pusher used for?

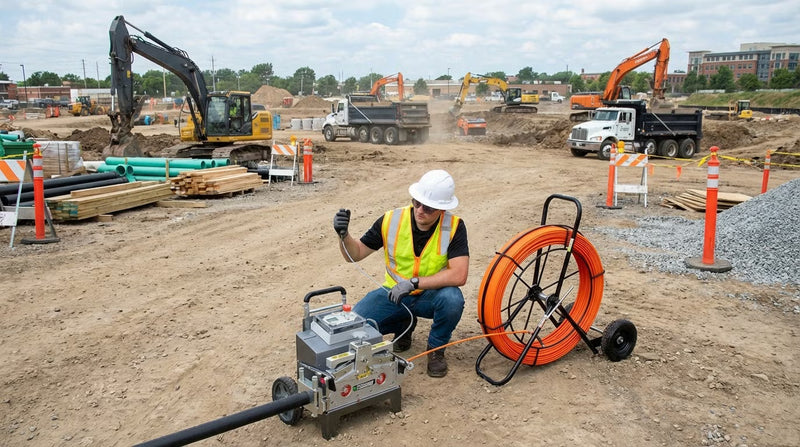

The GMP 77200 eRodder Low Profile is a battery-powered duct rod pusher designed to automate duct rod installation for telecommunications, fiber optic, and underground utility applications. Powered by DEWALT FLEXVOLT battery technology, it provides quiet, emission-free operation and supports efficient, single-operator use in the field.

What is the pushing capacity and speed of the GMP 77200 eRodder?

The GMP 77200 delivers a maximum pushing force of 180 lbs. (800 N) and a maximum pushing speed of 125 feet per minute (38 m/min). It accommodates duct rods ranging from 1/4 inch to 9/16 inch (6.4 to 14.3 mm) and features variable speed control for precise operation.

What is included with the GMP 77200 eRodder Low Profile?

The GMP 77200 includes the eRodder unit, one selected duct collet, a DEWALT FLEXVOLT 60V 12.0 Ah battery, DEWALT charger, and trigger control. An optional foot pedal with a 15-foot cable is available separately for hands-free forward and reverse operation.

At a Glance

• Battery-powered electric duct rod pusher for telecommunications and underground utility installations
• Maximum pushing force of 180 lbs. with speeds up to 125 feet per minute
• Accommodates duct rod diameters from 1/4 inch to 9/16 inch
• DEWALT FLEXVOLT 60V battery provides quiet, emission-free operation
• Three-wheel cart with airless off-road tires, folding handle, and rod distance counter
• Includes battery, charger, trigger control, and selected duct collet; optional foot pedal available
