GMP | Cable Overblowing Junction Box 2 inch SDR | #GMP89068

General Machine Products | PART #GMP89068

DESCRIPTION

The GMP  Cable Overblowing Junction Boxes have been designed to install a new cable or innerduct into an existing occupied 1-1/4 in., 1-1/2 in. and 2 in.  innerduct (subject to space being available).

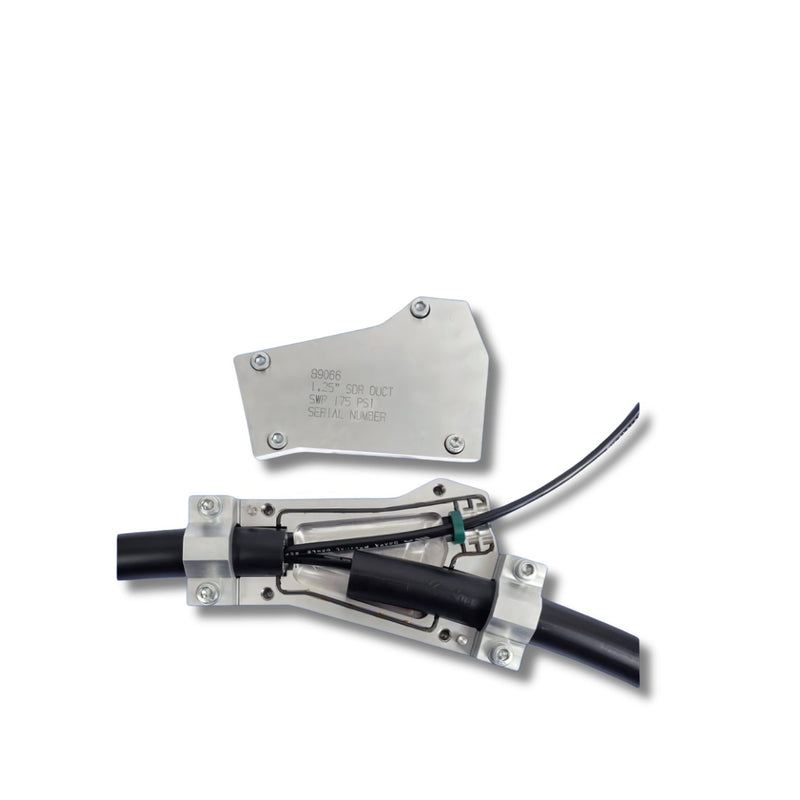

The Single Size Junction Box comprises an aluminum base and lid that form a pressurized air chamber into which one end of an existing occupied innerduct can be attached. The existing cable can exit the box through an opening that has 3 cable seal slots, one of which will house the seal to suit the size of the existing cable. The third branch is then connected to a GMP Cable Blowing Machine via a short slave length of innerduct for the installation of the extra cable or tube(s). A collection of seals ranging from 7.5 – 20 mm included with junction box.

Duct Range Limit: 2 in. SDR

Installation Principle: Viscous Drag

Max Operating Pressure: 175 psi (12 Bar)

Length: 12" (305 mm)

Width: 11.5" (292 mm)

Height: 3.3" (84 mm)

Weight: 14.5 lbs. (6.6kg)

Min Flow Acceptance: 700 cfm (20 m3/min)
