GMP | Accelair 2 PLUS Fiber Cable Blowing Machine | #GMP89860
Accelair 2 PLUS Fiber Cable Blowing Machine (89860)
IMPORTANT NOTICE: BLOWING MACHINES REQUIRE A CUSTOM QUOTE
Due to varying configurations, blowing machines cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please include the following information for faster processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
- Configurations (see below):
DESCRIPTION
Designed to suit the smaller end of fiber range, the AccelAir 2 completes the range of Tornado, JetSteam, Hurricane, AirStream, Whisper, and Microdrive blowing installation systems all from one company.

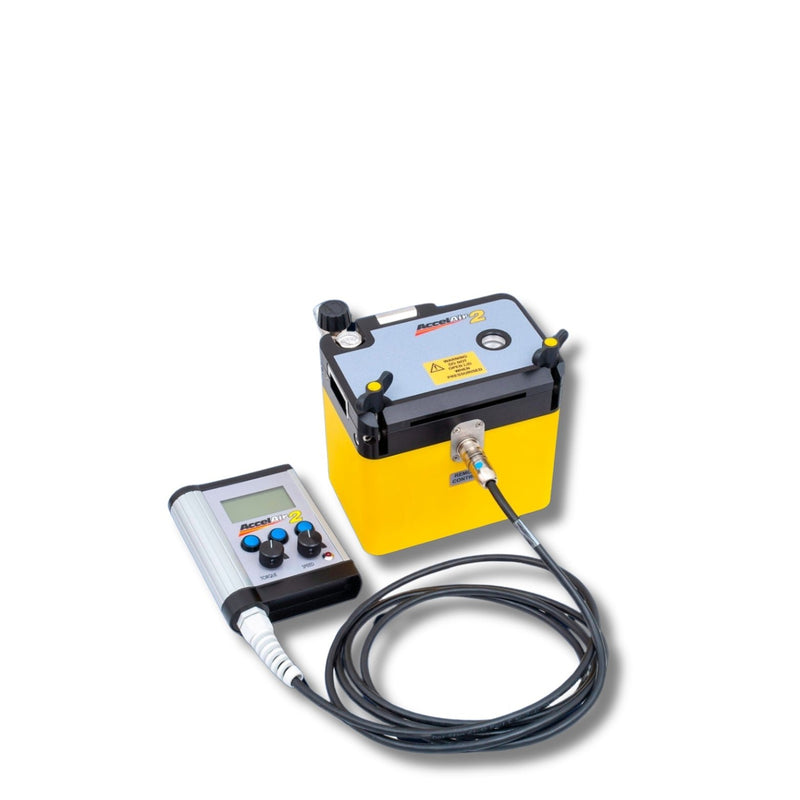

A compact integrated fiber-blowing machine, the AccelAir 2 benefits from full automation and fiber management. Its sophisticated fiber protection is designed to ensure that the blown fiber’s mechanical and optical integrity is maintained. The machine is self-contained and only requires a single electrical supply and compressed air to operate.
With the Accelair 2 Plus, you get 3 complete of the most common fiber/tube blowing sets.
FEATURES
- Installs cable diameters of .8 to 1.5 mm with buckle protection and up to 3 mm without buckle protection
- Accommodates microduct sizes of 3 to 10 mm
- Powered directly by the supplied 120/240v universal power supply
- Lightweight, durable construction with precision machined parts
- Single person operation
- Digital cable speed and distance monitoring
- Integral air valve and pressure gauge
- Supplied with a heavy-duty waterproof carry case
WHAT'S INCLUDED WITH YOUR WHISPER
- AccelAir 2 Cable Blowing Machine
- Remote Control
- Buckle (w/5 shuttles) or blowing plate for (1) cable size of your choice
- Infeed guide for cable size of your choice
- Tube clamp and 5 seals for (3) tube sizes of your choice
- Toolkit
- Heavy-duty weatherproof case
- Manual
ACCELAIR 2 PLUS CONFIGURATIONS
SPECIFICATIONS
- Cable Diameter: .8 to 3 mm
- Tube Size (Outside Dia): 3 to 10mm
- Cable Speed (Adjustable): 0-328 ft/min (0-100m/min) without buckle detection, 0-164 ft/min (0-50 m/min) with buckle detection
- Max Air Pressure: 220 psi (15 Bar) 8.5 cfm (.24 m/min)
- Power Requirement: 120/220v power supply or optional 24v battery pack
- Width: 7.2 in. (184 mm)
- Length: 6.5 in. (166 mm)
- Height: 8.5 in. (216mm)
- Weight: 6.6 lbs (3 kgs)
DOCUMENTS
Common Questions About the Accelair 2 PLUS Fiber Cable Blowing Machine
What is the Accelair 2 PLUS used for?
The Accelair 2 PLUS is a compact fiber cable blowing machine designed for installing small diameter fiber optic cable into microduct systems.
What cable sizes can the Accelair 2 PLUS install?
It installs fiber cables from 0.8 to 3 mm in diameter and supports microduct sizes from 3 to 10 mm.
Does the Accelair 2 PLUS include fiber protection features?
Yes. It includes buckle protection, controlled pushing force, and monitoring to help maintain the fiber’s mechanical and optical integrity during installation.
What power is required to operate the Accelair 2 PLUS?
The machine operates using a supplied 120 or 240 volt universal power supply and compressed air, with an optional 24 volt battery pack available.
Is the Accelair 2 PLUS suitable for single person operation?
Yes. Its lightweight, automated design allows for efficient single person operation in field environments.
At a Glance
• Designed for small diameter fiber installations
• Supports 0.8 to 3 mm fiber and 3 to 10 mm microduct
• Built in buckle protection and fiber management
• Digital speed and distance monitoring
• Lightweight, compact, and portable design
• Single electrical supply and compressed air operation
