GMP | 3/16" x 300' Duct Rodder | #89283
GMP | PART #GMP89283

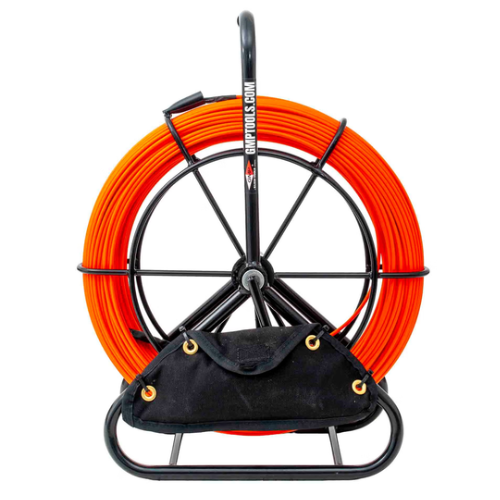

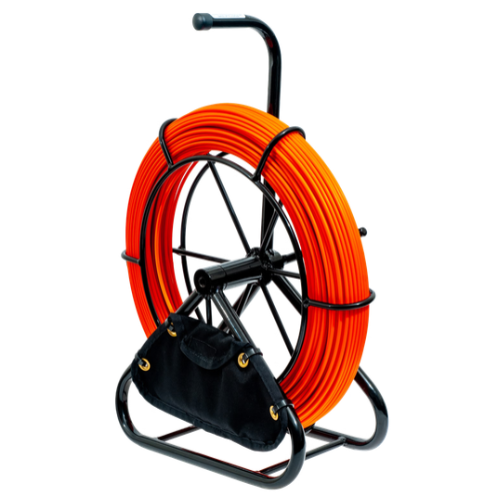

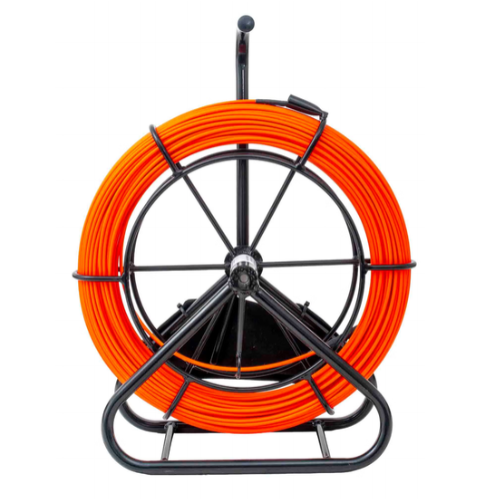

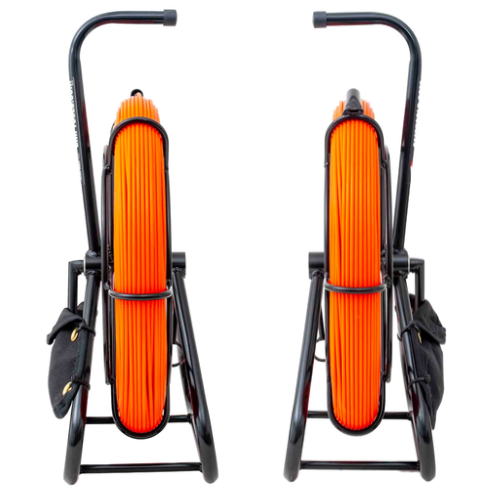

3/16" x 300' Duct Rodder (89283)
Due to varying freight fees, this product cannot be purchased directly from our online store. For a customized quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please provide the following details for quicker processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name:
- Part Number:
DESCRIPTION

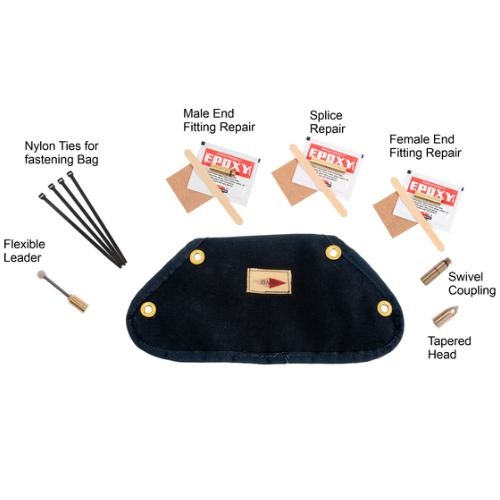

Ideal for running conduit both inside and outside drops, as well as home drops from hand-hole boxes to buildings. Its design supports pulling duct. The included accessory kit has a flexible leader, replacement ends, swivel coupling, tapered head, and a carrying pouch, enhancing its versatility and convenience.
- High Pull Strength: Loads up to 350 lbs. (159kg)
- Dimensions: 16 in. x 8 in. x 21 in. (413mm x 203mm x 537mm)
- Non-Conductive Material: Rod is constructed of a fiberglass composite with a polypropylene outer layer that provides water, oil, and chemical resistance.
- 10%+ Lighter than the leading competition.
- Powder coated tubular steel frame with integrated brake.
- Rod carrier runs on 2 heavy duty ball bearings for smooth operation.
| P/N | 3/16 in. (4.5MM) Duct Rodders | Weight |
| 89283 | 3/16" X 300' | 14.3 lbs. (5.1kg) |
SPECIFICATIONS
| Rod Specifications | ||||
| Nominal Size | End Fitting Threads | Rated Tensile Strength | Rated Pull Strength | Minimum Bend Diameter |
| 3/16 in. (4.5mm) | 1/4 x 20 | 1400 lbs.-f (6.2kN) | 350 lbs.-f (1.6kN) | 5.3 in. (135mm) |
| Rodder Carrier Dimensions | ||||
| Nominal Size | Cassette Dia. in. (mm) | Length in. (mm) | Width in. (mm) | Height in. (mm) |
| 3/16 in. (4.5mm) | 16 .25 (413) | 16.25 (413) | 8 (203) | 21.13 (537) |
Common Questions About the GMP 3/16" x 300' Duct Rodder (89283)
What is the GMP 3/16" x 300' Duct Rodder used for?
The GMP 89283 Duct Rodder is designed for routing and pulling cables through underground conduits, including inside and outside drops and residential service connections from hand-hole boxes to buildings. Its 300-foot fiberglass rod provides extended reach for telecommunications, fiber optic, and utility installations.
What is the pulling capacity of the GMP 89283 Duct Rodder?
The GMP 89283 features a 3/16-inch (4.5 mm) fiberglass composite rod with a rated pulling strength of 350 lbs. (1.6 kN) and a tensile strength of 1,400 lbs. (6.2 kN). Its polypropylene outer layer provides resistance to water, oil, and chemicals.
What accessories are included with the GMP 89283 Duct Rodder?
The GMP 89283 includes an accessory kit with a flexible leader, replacement ends, swivel coupling, tapered head, and carrying pouch. The rodder also features a powder-coated tubular steel frame with an integrated brake and heavy-duty ball bearings for smooth operation.
At a Glance
• 3/16-inch (4.5 mm) diameter fiberglass duct rodder with 300-foot length
• Ideal for telecommunications, fiber optic, utility, and residential drop installations
• Rated pulling strength of 350 lbs. with 1,400 lbs. tensile strength
• Non-conductive fiberglass composite rod with water, oil, and chemical-resistant outer layer
• Powder-coated steel frame with integrated brake and heavy-duty ball bearings
• Includes flexible leader, replacement ends, swivel coupling, tapered head, and carrying pouch
