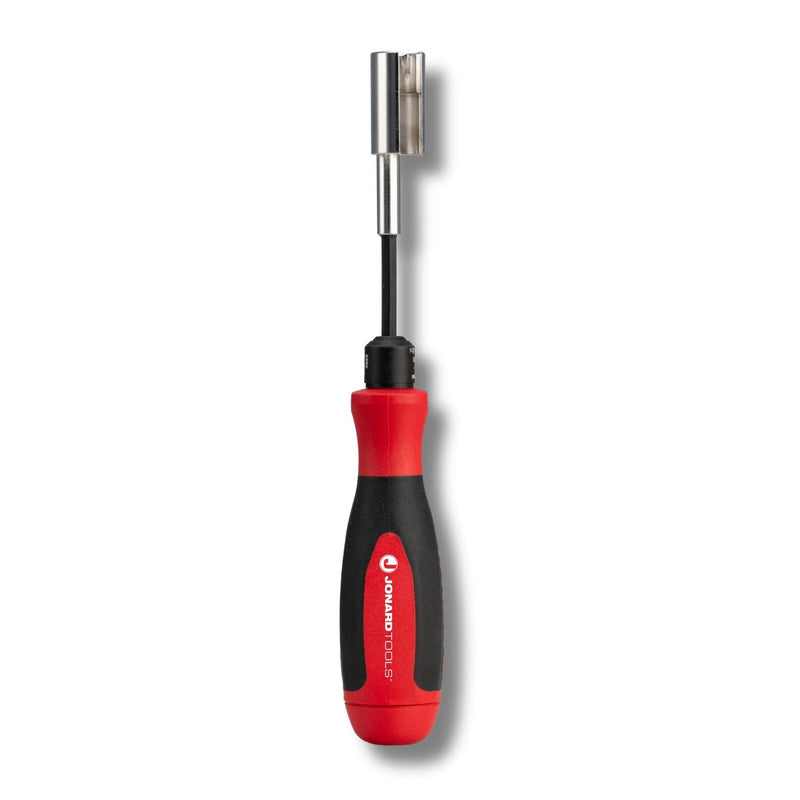

JONARD | F Connector Torque Wrench, 30 in-lb, 8 inch | #CTW-71638
JONARD TOOLS | PART #CTW-71638
F Connector Torque Wrench, 30 in-lb, 8 inch
DESCRIPTION
This torque wrench includes: CTW-7168 F Connector Torque Wrench Shaft, 8" CTW-H F Connector Torque Wrench Handle
- Ideal for use in high-density locations such as headends
- Handle has audible click sound that lets you know when the connector is fully torqued to 30 in-lb
- Turn clockwise to tighten the connector and counterclockwise to remove
- Preset calibration to 30 in-lb (3.4 N-m) to meet most manufacturers' recommended torque requirements for their F connectors so no adjustments are needed
- 8" shaft provides easy access to connectors in tight locations
- Lifetime Warranty
SPECIFICATIONS
| Connector Type |
F Connector |
|---|---|
| Head Type | |
| Torque |
30 in-lb (3.4 N-m) |
| Size |
7/16" F Connectors & 11 mm Nuts and Bolts |
| Head Angle |
0 degrees |
| Finish | |
| Shaft Length |
8" (20.32 cm) |
| Assembled Length |
8.625" (21.91 cm) |
| Dimensions | 7.81 in x 1.32 in x 1.33 in (19.84 cm x 3.35 cm x 3.38 cm) |
| Weight | 0.31 lb (140.74 g) |
| UPC # | 811490018433 |
Common Questions About the CTW 71638 F Connector Torque Wrench 30 in-lb, 8 Inch
What is the CTW 71638 F Connector Torque Wrench used for?
The CTW 71638 is used to torque F connectors to 30 in-lb (3.4 N-m), ensuring proper tightening or loosening in high-density locations.
Who is this torque wrench designed for?
This tool is ideal for telecom technicians, cable installers, and anyone working in headends or other tight F connector locations.
What makes the CTW 71638 different from standard torque wrenches?
The CTW 71638 features a preset 30 in-lb calibration, audible click for torque confirmation, 8" chrome vanadium steel shaft, ergonomic rubberized handle, and compatibility with the 12" shaft (CTW-71612) for extended reach.
At a Glance
• F connector torque wrench preset to 30 in-lb (3.4 N-m)
• Audible click confirms full torque
• 8" chrome vanadium steel shaft, ergonomic rubberized handle
• Ideal for high-density locations, compatible with CTW-71612 12" shaft
