JONARD | DIP/IC Extractor (24-40 Pins) | #EX-2
JONARD TOOLS | PART #EX-2

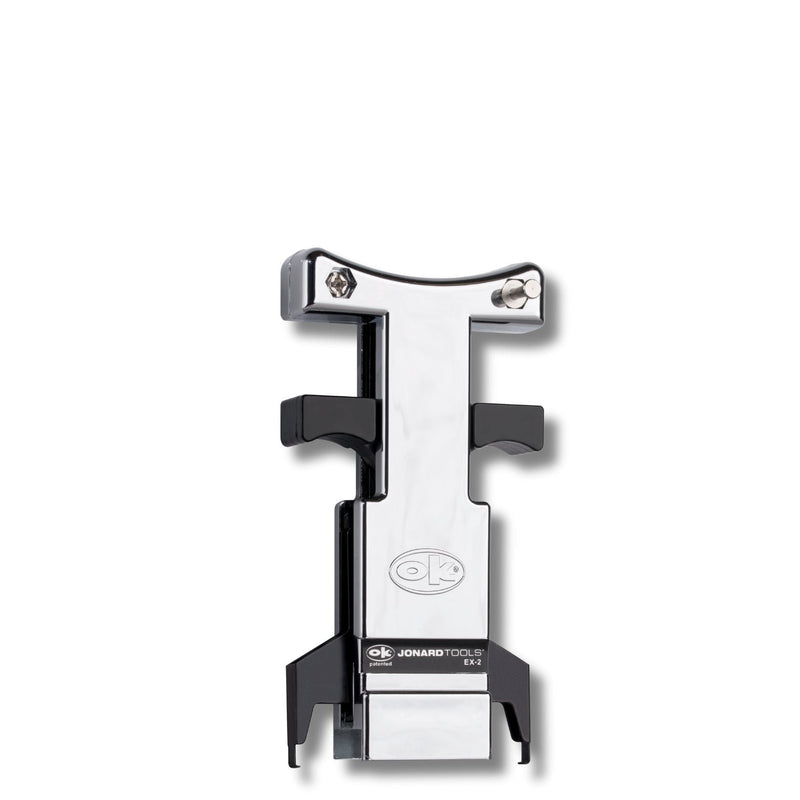

DIP/IC Extractor (24-40 Pins)
DESCRIPTION

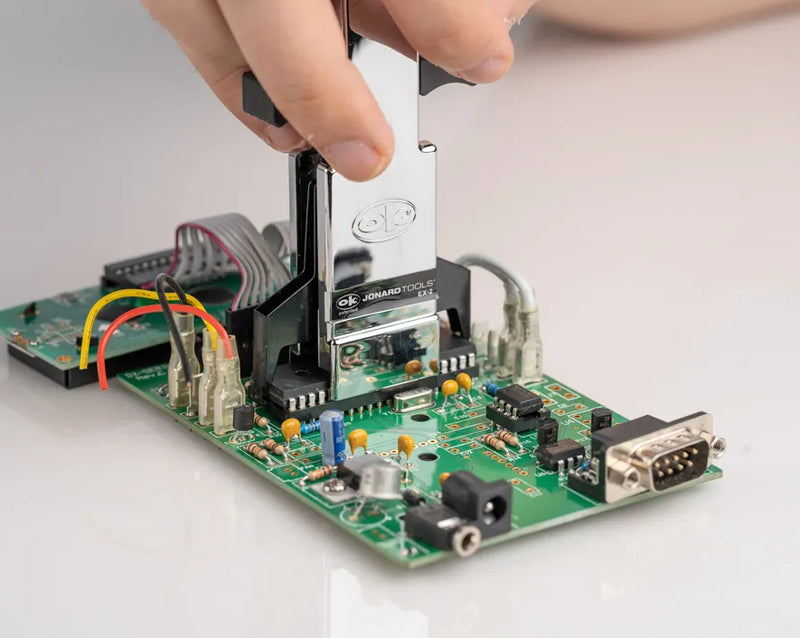

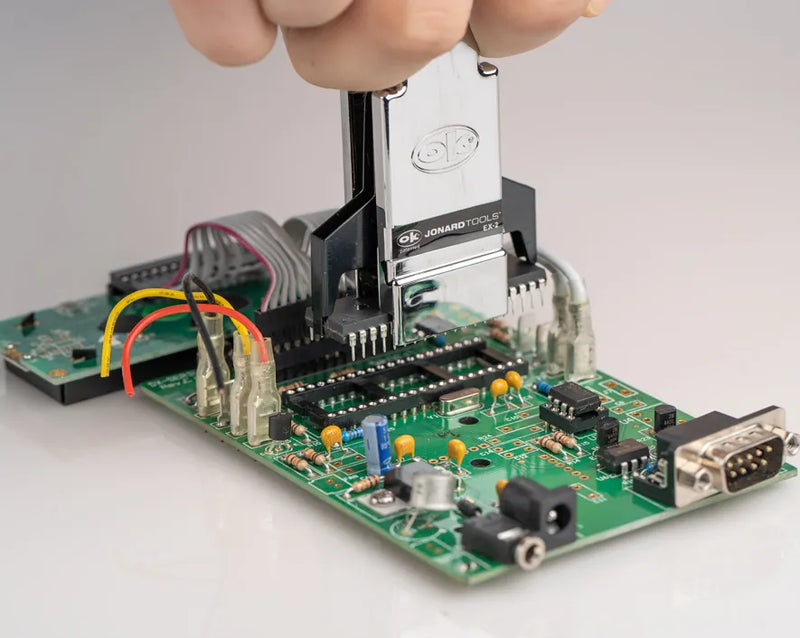

Designed to extract internal components from DIP Sockets as well as LSI, MSI, and SSI Devices, this DIP/IC Extractor is perfect for removing chips with 24-40 pins. This DIP/IC Extractor features the following:
- Built-in grounding lug helps protect from short circuiting or static discharge
- Specially designed hooks firmly grasp chips without damaging them.
SPECIFICATIONS
| Function |
Extraction |
|---|---|
| Chip Package Type |
DIP |
| Pin Count |
24-40 |
| Pitch |
0.60" (15.24 mm) |
| Dimensions | 4 in x 2 in x 0.65 in (10.16 cm x 5.08 cm x 1.65 cm) |
| Weight | 1.8 lb (817.2 g) |
| UPC # | 811490010673 |
Common Questions About the EX 2 DIP/IC Extractor 24-40 Pins
What is the EX 2 DIP/IC Extractor used for?
The EX 2 tool is used to safely extract DIP sockets and LSI, MSI, or SSI devices with 24–40 pins without damaging the components.
Who is this DIP/IC extractor designed for?
This tool is ideal for electronics technicians, engineers, and repair professionals who need precise and safe chip removal.
What makes the EX 2 different from standard extractors?
The EX 2 features a built-in grounding lug to prevent short circuits or static discharge and specially designed hooks to firmly grasp chips without causing damage.
At a Glance
• DIP/IC extractor for 24–40 pin chips and sockets
• Built-in grounding lug for short-circuit and static protection
• Specially designed hooks to prevent chip damage
• Ideal for LSI, MSI, and SSI devices
