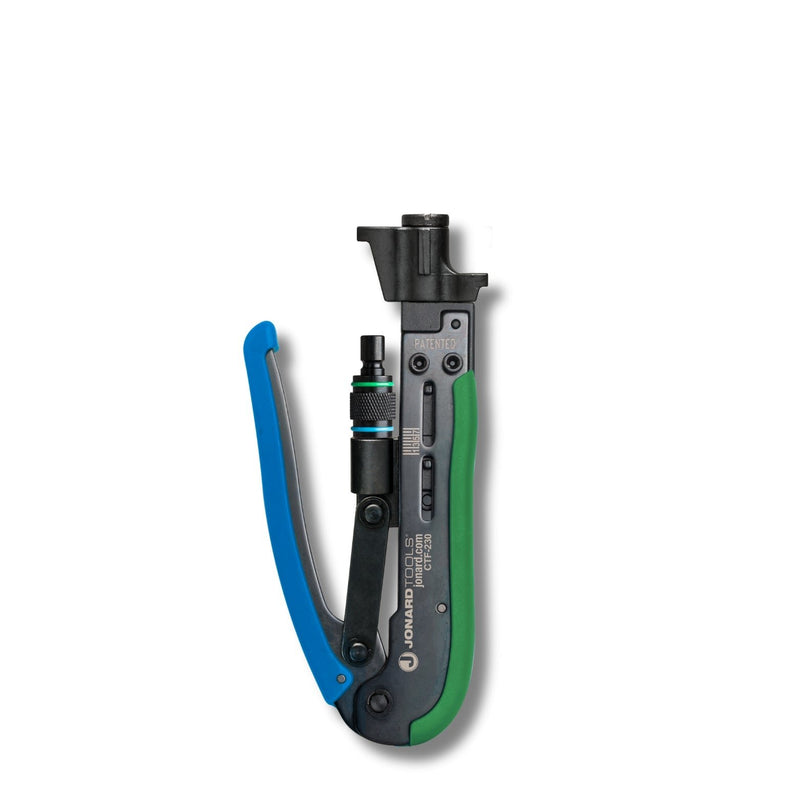

JONARD | Dual Compression Tool - Short and Long Style F Connectors | #CTF-230

by Jonard
Sale Sale
Original price $66.95
Original price $66.95 - Original price $66.95
Original price $66.95
Current price $63.60
$63.60 - $63.60
Current price $63.60

JONARD TOOLS | PART #CTF-230

DESCRIPTION

The Jonard Tools Dual Short and Long Compression Tool is designed for use on both short and long style F connectors, such as the PPC EX6 and PPC EX6XL connectors as well as most RG11 connectors. The green side of the plunger is for short style PPC EX6 connectors and the blue side is for long style EX6XL connectors. The tool is ideal for installing CATV network cables and features the following:

  • Dual Head design: Green for short Style F connectors, Blue for Long F style connectors. To change: Pull to remove, rotate and reinsert
  • Rotatable head to choose from RG11 or RG6 connectors
  • Made of durable high carbon steel with a black oxide finish
  • Plastic grips provide a comfortable and ergonomic experience
  • Fixed design so no adjustments are needed

Compatible Connectors:

  • PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC
  • Digicon: DS6, DS59, DS59Q, DS11, DS7
  • Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
  • Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RG11-CX3, FM-RG7-CX3, F-CX3
  • Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
  • ATX Networks: 9-MPF-CQ

Plus many other brands and styles of short and long F connectors!

Model: F Short & F Long

        DOCUMENTS

        Compression Tool Datasheet

        SPECIFICATIONS

        Connector Type

        F Short, F Long

        Material

        Carbon Steel

        Length 6(15.24cm)
        Weight 0.97 lb (439.018 g)
        UPC # 811490016996
