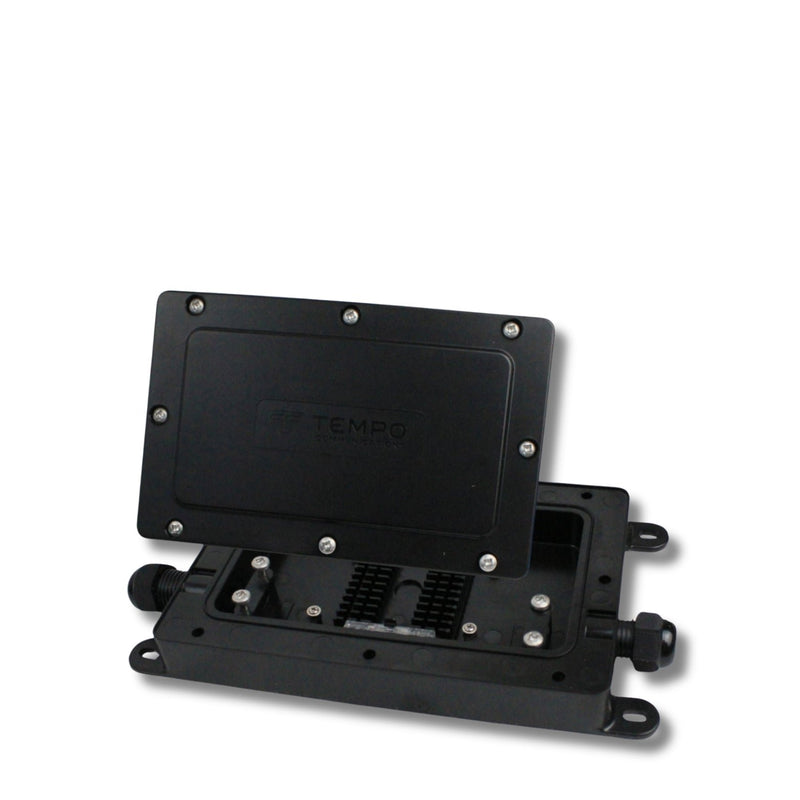

TEMPO | Drop Fiber Enclosure Kit, 2 Port Stub | #DFE101

Original price $49.61 - Original price $49.61
Original price $49.61
$49.61
$49.61 - $49.61
Current price $49.61

TEMPO COMMUNICATIONS | PART #DFE101

DESCRIPTION

The Drop Fiber Enclosure Kit is used to facilitate repairs of fiber optic cables. Common fiber sizes of 8.1mm, 5.4mm and 5.1mm rectangular cables, and 3.0mm and 5.1mm round cables are accommodated with the supplied sealing gaskets.

Both fusion splices (total of 24) and two mechanical splices are securely positioned within the IP68-rated, GR771 compliant enclosure. The enclosure can be permanently buried or mounted onto the side of a building.

Two DFE enclosures are typically used to repair a drop fiber as there is typically not enough slack cable to reconnect the fibers.

The DFE provides a splice point location within the network build as well as a demarcation point at the premises.

Three versions of the DFE are available:

  • Drop Fiber Enclosure Kit (DFE100): Two Port In-Line

  • DFE101: Two Port Stub

  • DFE104: Four Port

OVERVIEW

  • IP68 rated for buried applications

  • GR771 compliant

  • Accommodates up to 26 splices

  • Individual gaskets for 8.1, 5.4 and 5.1mm rectangular and 3.0 mm and 5.1 round cables

  • Fast assembly with common tools

DOCUMENTS

DFE100 Datasheet

DFE Instruction Sheet

Application Note: Installing Fibers in the DFE100



Attribute Name

Attribute Value

IP Rating

IP68

Compliance

Telcordia GR771

Cables Sizes

8.1mm, 5.4mm, 5.1mm rectangular, 3mm and 5.1mm round

Mechanical Splice Locations

2

Fusion Splice Locations

24

Size

8.85 x 4.72 x 1.34 (225 x 120 x 34mm)

Weight

0.66lb (0.3kg); 0.8lb (0.36kg) (DFE104)

Material

Polycarbonate (UV resistant)

Color

Black

Operating Temperature

-40 to +80C

Storage Temperature

-40 to +80C
