TEMPO | Drop Fiber Enclosure Kit, Two Port in Line | #DFE100
TEMPO COMMUNICATIONS | PART #DFE100

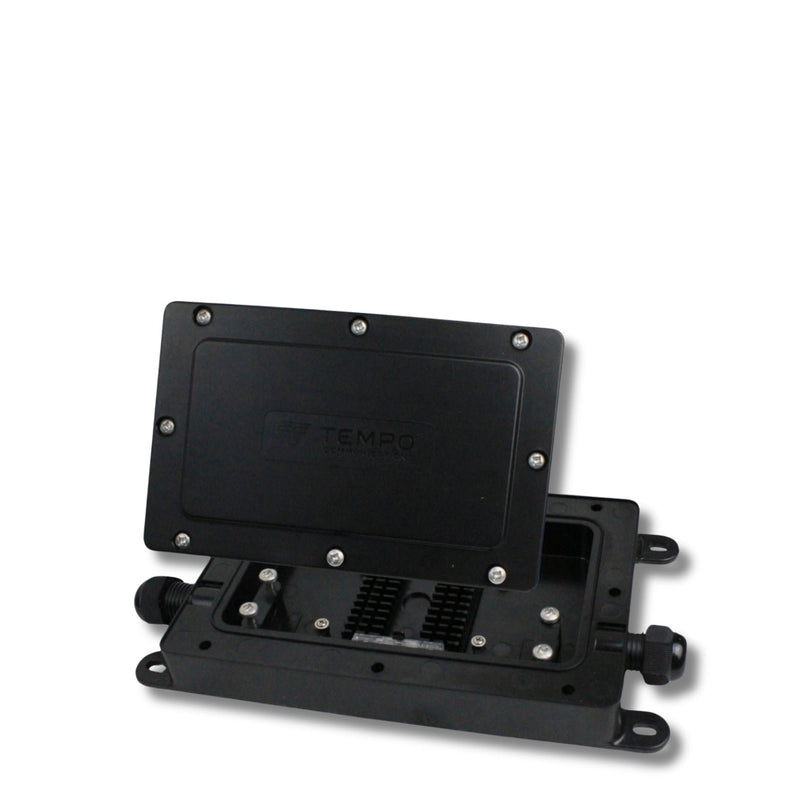

Drop Fiber Enclosure Kit, Two Port in Line
DESCRIPTION
The Drop Fiber Enclosure Kit is used to facilitate repairs of fiber optic cables. Common fiber sizes of 8.1mm, 5.4mm and 5.1mm rectangular cables, and 3.0mm and 5.1mm round cables are accommodated with the supplied sealing gaskets
Both fusion splices (total of 24) and two mechanical splices are securely positioned within the IP68-rated, GR771 compliant enclosure. The enclosure can be permanently buried or mounted onto the side of a building.
Two DFE enclosures are typically used to repair a drop fiber as there is typically not enough slack cable to reconnect the fibers.
The DFE provides a splice point location within the network build as well as a demarcation point at the premises.
Three versions of the DFE are available:
-
Drop Fiber Enclosure Kit (DFE100): Two Port In-Line
-
DFE101: Two Port Stub
-
DFE104: Four Port
OVERVIEW
-
IP68 rated for buried applications
-
GR771 compliant
-
Accommodates up to 26 splices
-
Individual gaskets for 8.1, 5.4 and 5.1mm rectangular and 3.0 mm and 5.1 round cables
-
Fast assembly with common tools
DOCUMENTS
Application Note: Installing Fibers in the DFE100
|
Attribute Name |
Attribute Value |
|---|---|
|
IP Rating |
IP68 |
|
Compliance |
Telcordia GR771 |
|
Cables Sizes |
8.1mm, 5.4mm, 5.1mm rectangular, 3mm and 5.1mm round |
|
Mechanical Splice Locations |
2 |
|
Fusion Splice Locations |
24 |
|
Size |
8.85 x 4.72 x 1.34 (225 x 120 x 34mm) |
|
Weight |
0.66lb (0.3kg); 0.8lb (0.36kg) (DFE104) |
|
Material |
Polycarbonate (UV resistant) |
|
Color |
Black |
|
Operating Temperature |
-40 to +80C |
|
Storage Temperature |
-40 to +80C |
Common Questions About Drop Fiber Enclosure Kit DFE100
A drop fiber enclosure is used to protect fiber splices and provide a secure repair and demarcation point within a fiber access network.
What is the configuration of the DFE100?
The DFE100 is a two port in line enclosure designed for straight through drop fiber repairs and splicing.
How many splices can the DFE100 support?
The DFE100 supports up to 24 fusion splices and 2 mechanical splices, for a total of 26 splice locations.
Can the DFE100 be buried or mounted outdoors?
Yes, the DFE100 is IP68 rated and GR771 compliant, making it suitable for permanent burial or exterior wall mounting.
At a Glance
• Two port in line drop fiber enclosure
• Supports up to 26 total splices
• IP68 rated for buried applications
• GR771 compliant enclosure
• Accepts multiple rectangular and round cable sizes
• Fast assembly with common tools
