CONDUX | Gulfstream 300QC Micro Fiber Blower | #08787000
CONDUX | PART #08787000

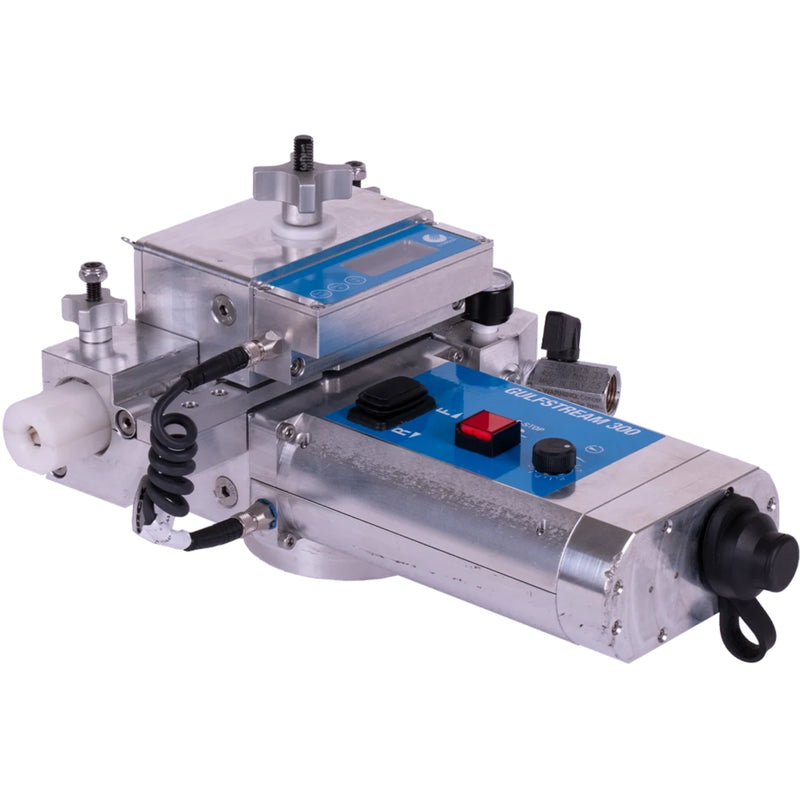

Gulfstream 300QC Micro Fiber Blower
Due to varying configurations, fiber blower cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please provide the following details for quicker processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name & Number:
DESCRIPTION
The Gulfstream™ 300 is another highly effective blower from Condux for middle mile fiber installations. The Gulfstream™ 300 can install fiber optic cable ranging in size from 2.5mm - 8mm into duct from 7mm - 18mm. The unit can be tripod mounted for optimum productivity.
The Condux Gulfstream™ 300 tackles middle mile installations with the power to get the fiber in and the job done. The unit’s tractor delivers up to 30 lbs. of push force for the tough installs. That push force is adjustable as well giving the Gulfstream™ 300 the right amount finesse to protect the cable. Plus, it’s tripod mountable. How’s that for easy access and user friendly? Exactly what contractors need in the middle mile!
Blower Size
Dimensions: 11″ (l) x 8″ (w) x 6″ (h) – 279 mm (l) x 203 mm (w) x 152 mm (h)
Weight: 9 lbs/4.1 kg
Microduct Range
5mm – 18mm
0.197″ – 0.709″
Built in clamping system with interchangeable seals
Fiber Cable Range
2.5mm – 8 mm
0.098″ – 0.315″
Power System
Electric drive motor
48v AC Power Supply
(Plugged into wall or 1000 w Generator)
Drive
Belt drive
Maximum push force of 30 lbs (133 N)
Speed: 0-230 fpm (0 – 70mpm) with 48V inverter
Features
- Forward/reverse switch
- Speed control to regulate motor speed
- Emergency stop button for instant shutdown
- Screen that monitors speed, distance and life counter
- Push force adjustment
Pressure and Flow
Air connections: 3/8″ EU or US Coupling
Air Pressure Requirements (BAR)*: 10-15
Air Pressure Requirements (PSI)*: 150-205
Flow Requirements (CMM)*: 0.5-1.5
Flow Requirements (CFM)*: 10-35
*Air pressure and flow requirements depend on the size of duct and the size of fiber being installed into that duct.
Gulfstream 300QC Micro Fiber Blower Manual
Included in standard kits:
Blower Size Overview:
Common Questions About the Condux Gulfstream 300QC Micro Fiber Blower
What is the Condux Gulfstream 300QC Micro Fiber Blower used for?
The Condux Gulfstream 300QC Micro Fiber Blower is used to install fiber optic cable into microduct for middle mile fiber construction projects.
What cable and duct sizes can the Gulfstream 300QC handle?
This blower installs fiber cable from 2.5 mm to 8 mm into duct ranging from 5 mm to 18 mm, making it ideal for a variety of microduct configurations.
What makes the Gulfstream 300QC effective for middle mile installations?
The unit delivers adjustable push force up to 30 lbs, variable speed control, tripod mounting capability, and built in monitoring for precise and efficient cable installation.
At a Glance
• Micro fiber blower for middle mile installations
• Adjustable push force up to 30 lbs
• Supports 2.5 mm to 8 mm fiber cable
• Tripod mountable with variable speed control
