CONDUX | Fiber Optic Puller - Includes Puller, Foot Control and Hoses | #08690002
CONDUX | PART #08690002
Fiber Optic Puller - Includes Puller, Foot Control and Hoses
Due to varying freight charges and fees, Fiber Optic Cable Puller cannot be purchased directly through our online store. To receive an accurate quote, please contact us directly via phone or email.
PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us
When emailing, please provide the following details for quicker processing:
- First & Last Name:
- Company Name (if applicable):
- Shipping Address:
- Part Name & Number:
DESCRIPTION

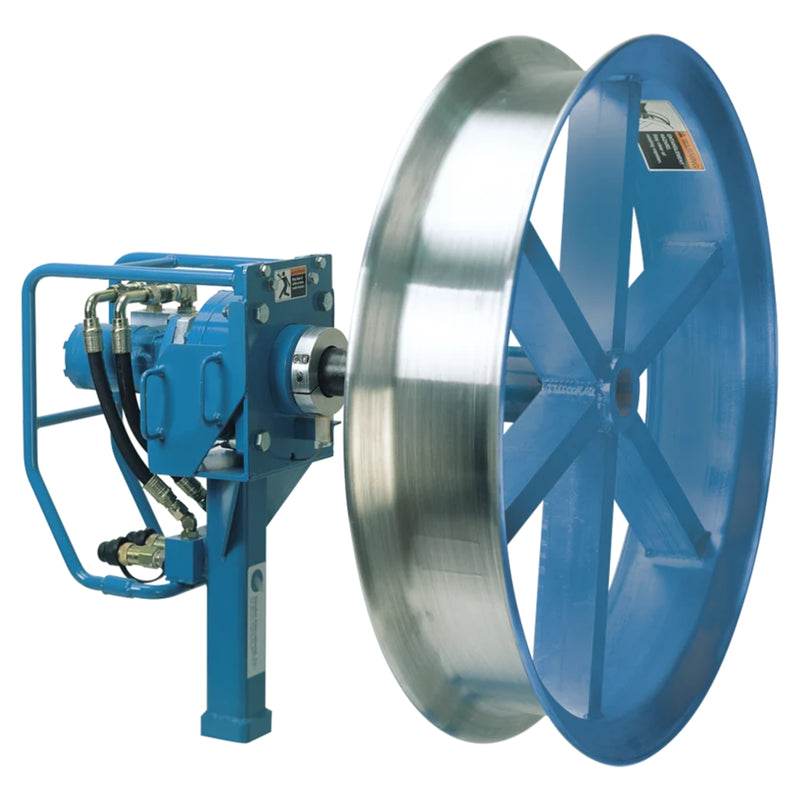

The Fiber Optic Cable Puller from Condux sets new standards for safe, accurate pulling of fiber optic cables. Only the Condux puller can offer load cell torque input for the most accurate tension measuring available. Unlike most hydraulic measuring systems, this system is not affected by changes in oil temperature, component age and power source. That means the Condux Fiber Optic Cable Puller does not need to be recalibrated under different weather conditions.
Standard Features
These pullers consist of a hydraulic motor and variable speed foot control. All pullers are calibrated for a maximum pull tension of 600 lbs. on a 30" capstan; maximum pull tension can be adjusted using the manually adjustable pressure relief valve.
Optional Features
The Condux Fiber Optic Cable Puller features an optional electronic tension control system with adjustable digital load limits and a load cell tension measuring device with a paperless recorder and trend display, compact flash drive with 64MB flash card and USB interface.
Warning: The Fiber Optic Cable Puller is not to be used as a hoist or for lifting, supporting or transporting people or loads.
Easy to Set Up, Safe to Use

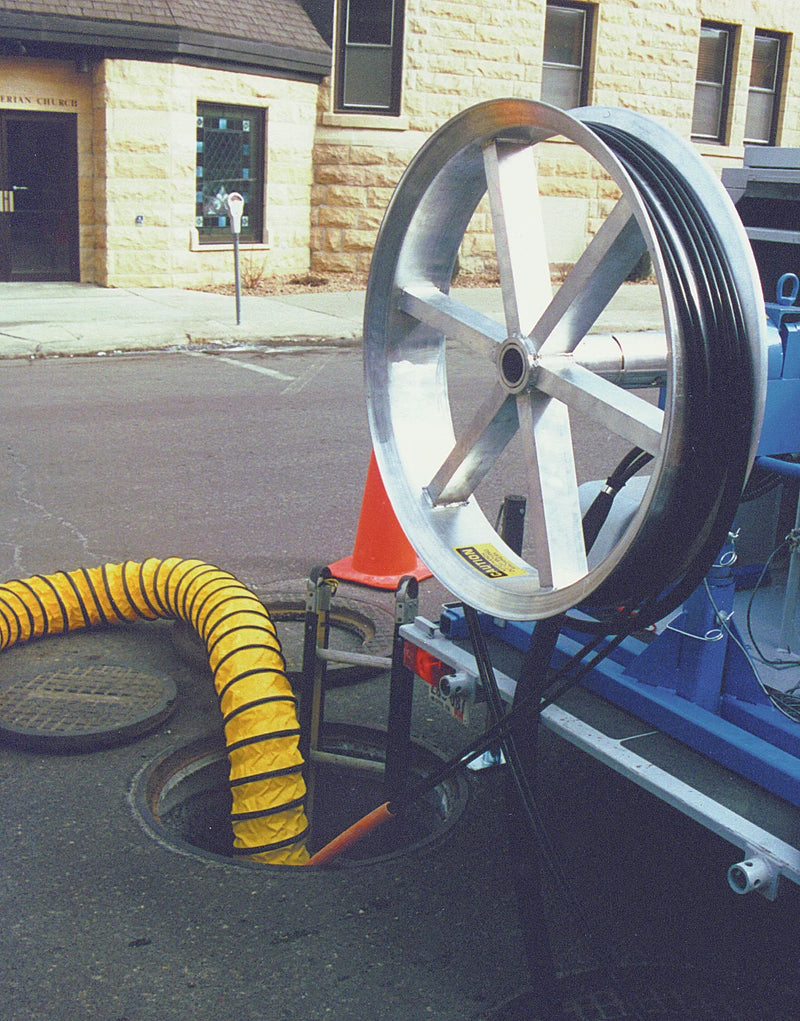

Condux Fiber Optic Cable Pullers set up easily at a variety of jobsite layouts. Components are modular, adding to versatility and operator safety.

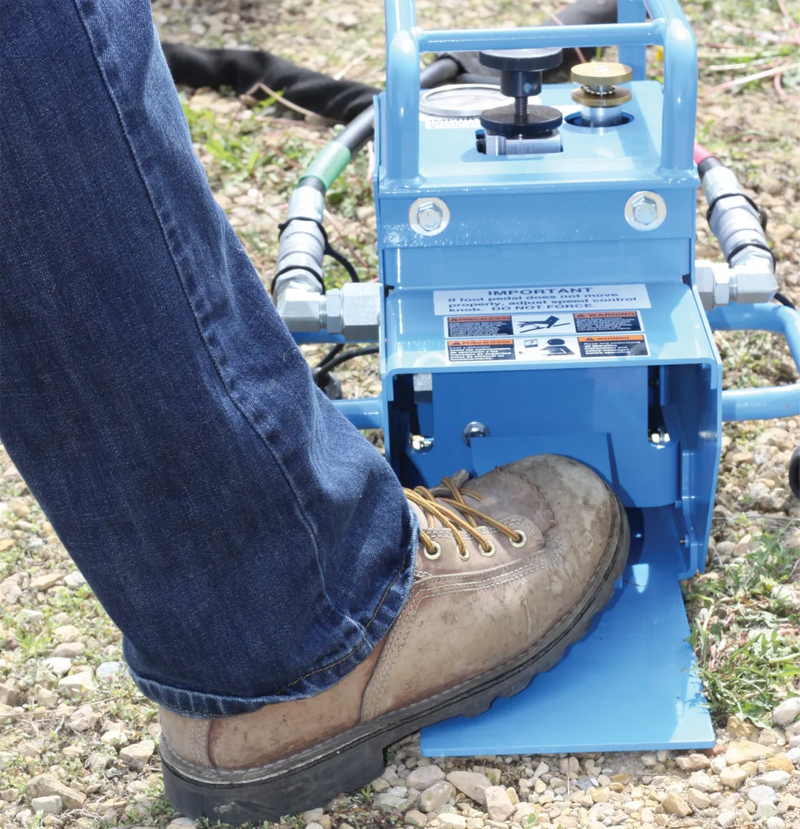

Variable Speed Foot Control
Like the accelerator pedal in your car or truck, the Variable Speed Foot Control allows the operator to easily manage the speed of the pull.
Fiber Optic Cable Puller Manual
Common Questions About the Condux Fiber Optic Cable Puller
What is the Condux Fiber Optic Cable Puller used for?
The Condux Fiber Optic Cable Puller is used to safely and accurately pull fiber optic cable while precisely monitoring pulling tension during installation.
Who is this fiber optic cable puller designed for?
This puller is designed for fiber construction crews, telecommunications contractors, and utility teams that require controlled cable pulling with accurate tension measurement.
What makes this Condux cable puller different from standard hydraulic pullers?
Unlike standard systems, this puller uses load cell torque input for highly accurate tension measurement that is not affected by oil temperature, component wear, or weather conditions.
At a Glance
• Fiber optic cable puller with load cell tension measurement
• Variable speed foot control for precise pulling control
• Modular design for flexible job site setups
• Calibrated for safe and accurate cable pulling operations
