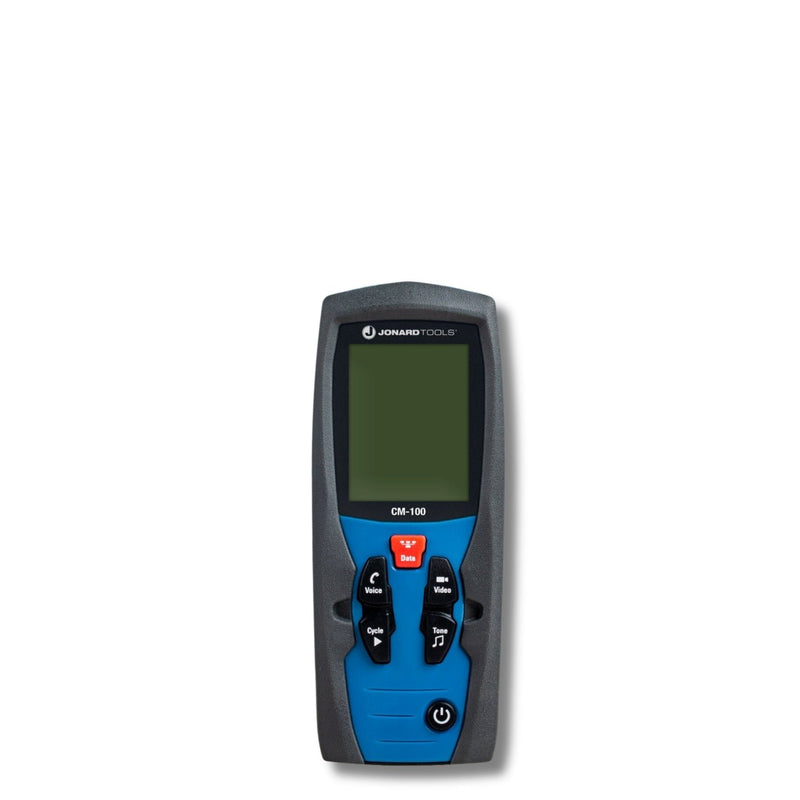

Cable Mapper Pro
DESCRIPTION
Designed for finding and identifying up to 8 COAX and network cables in main cable boxes, this cable mapper and toner is the perfect tool for use on cables for CATV, network installations, satellite installations, telephone systems, audio-video equipment, CCTV, and security & alarm installations. This 8-way cable mapper and toner kit features the following.
- Maps up to 8 COAX or Network Cables simultaneously, up to 1,000 ft
- Tone Generator makes it quick and easy to locate cables in wiring closets or patch panels
- Tests Network and Telephone Cables using RJ11 or RJ45 connectors for shorts and wire mispairs
- Backlit LCD clearly maps out connections and describes wiring faults when testing
- Rugged rubber housing protects it from accidental drops and damage
- Live voltage detection warns you if the cable is live
- Powered by (2) AA Batteries (included) and automatically powers off after 30 minutes to conserve battery life
DOCUMENTS
SPECIFICATIONS
| Includes |
Cable Mapper/Tester/Toner, 8 COAX Identifiers, 8 Network Cable Identifiers, 2 Data Patch Cords, Coax Patch Cord, Network Cable Remote, Rugged Nylon Case, 2 AA Batteries, and an Instruction Sheet |
|---|---|
| Display |
Backlit LCD |
| Max Cable Length |
1000 ft (304.8 m) |
| Max DC Cable Resistance |
100 Ohms |
| Batteries |
x2 AA |
| Dimensions |
4.75" x 2.1" x 6.5" (12.1 cm x 5.3 cm x 16.5 cm) |
| Weight | 0.93 lb (422.22 g) |
| UPC # | 810053350874 |
Common Questions About the Cable Mapper Pro
What is the Cable Mapper Pro used for?
The Cable Mapper Pro is used to identify, map, and trace coax and network cables while detecting wiring faults in telecom, CATV, and network installations.
Who is the Cable Mapper Pro designed for?
This tool is designed for telecom technicians, network installers, security installers, and AV professionals working with coax and network cabling systems.
What makes the Cable Mapper Pro useful for troubleshooting cables?
This tool maps up to eight cables at once, includes a built in tone generator, detects live voltage, and displays wiring faults on a backlit screen.
At a Glance
• Maps and identifies up to eight coax or network cables
• Built in toner for locating cables in panels and closets
• Detects wiring faults and live voltage
• Backlit display with rugged protective housing
