TEMPO | Active Clad Fusion Splicer and Cleaver Kit | #915FS-KIT1
TEMPO COMMUNICATIONS | Part #915FS-KIT1

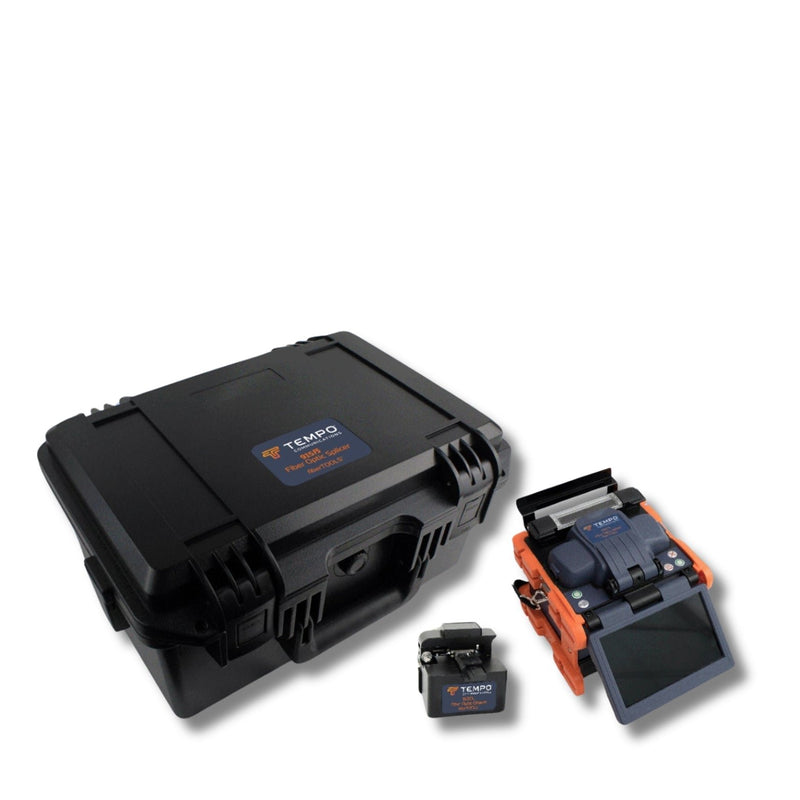

Active Clad Fusion Splicer and Cleaver Kit (SPLICER & CLEAVER ONLY)
DESCRIPTION
The 915FS touchscreen optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTTx, P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The 915FS uses the Tempo Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure prone mechanical connector. Splice on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice on connector is pre-cleaved and also eliminates the need for a splice tray.
OVERVIEW
-
Active clad four motor technology
-
Seven-second splicing
-
Five-second boot time
-
200 complete cycles per battery charge
-
Compact and lightweight for the most demanding jobs
-
Compatible with loose tube fibers
-
Screenshot capable
-
Drop tested to 76cm
-
Eighteen-second shrink time
-
5,000 burns electrode life
-
Attenuation mode capable
-
Password protection for anti-theft
-
Compatible with splice on connectors, SC, LC, FC, and ST
-
IP52 compliant
-
On-board instruction manual
-
5.0” Color LCD touchscreen
-
3-year warranty
-
Cleaver P/N #915CL
SPECIFICATIONS
|
Attribute Name |
Attribute Value |
|---|---|
|
Applicable Fibers |
SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF |
|
Fiber Cleaved Length |
10mm |
|
Cladding Diameter |
100 to 1000µm |
|
Fiber Count |
Single |
|
Fiber Aligning Method |
Active Clad |
|
Splice Loss |
(Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF) |
|
Splicing Mode |
60 Preset / User Definable Modes |
|
Splice Time |
7 seconds |
|
Boot Time |
5 seconds |
|
Number of Splices Per Battery Charge |
200 (including 60mm heat shrink cycle) |
|
Splice Connector |
SC, LC, FC, ST |
|
Arc Calibration Mode |
Automatic & Manual |
|
Protection Sleeve Length |
60mm, 40mm, Micro Sleeves |
|
Ingress Protection |
IP5X (Dust); IPX2 (Water) |
|
Storage of Splice Results |
5,000 Results, 100 screenshots |
|
Drop Test |
76cm on five axis |
|
Tension Test |
2N |
|
Fiber Display Magnification |
200x |
|
Tube Heating Time |
18 seconds |
|
Attenuator Mode |
0.1 to 15 dB |
|
Electrode Life |
5,000 Splices |
|
Display |
5" Color LCD Touchscreen |
|
Connectivity |
USB |
|
Storage Temperature |
-40 to +158F (-40 to +70C) |
|
Operating Conditions |
Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55C) |
|
Power Supply |
100 to 240V AC Adapter; Li-ion Battery (4400 mAh) |
|
Weight |
3.3lbs (1.5kg) |
|
Dimensions |
4.9" x 4.9" x 5.3" (125 x 125 x 135mm) |
|
Password Protection |
Yes |
DOCUMENTS
Common Questions About Active Clad Fusion Splicer and Cleaver Kit, 915FS-KIT1
An active clad fusion splicer aligns fibers using the cladding rather than the core, delivering reliable low-loss splices while remaining more cost effective than core alignment systems.
What is included in the 915FS-KIT1?
The 915FS-KIT1 includes the 915FS active clad fusion splicer and the 915CL fiber cleaver. No additional accessories are included.
What types of fiber does the 915FS support?
The 915FS supports single mode, multimode, dispersion shifted, non-zero dispersion shifted, bend insensitive, and erbium doped fibers.
Is this kit suitable for FTTH and FTTx installations?
Yes, the 915FS-KIT1 is designed for FTTH, FTTx, and point-to-point installations using standard and specialty fibers.
At a Glance
• Active clad alignment fusion splicer with cleaver
• Seven-second splice time
• Supports splice-on connectors
• Compact and lightweight field design
• Stores up to 5,000 splice results
• IP5X dust and IPX2 water protection
