JONARD | 1000A Digital Clamp Meter | #ACM-1000
JONARD TOOLS | PART #ACM-1000

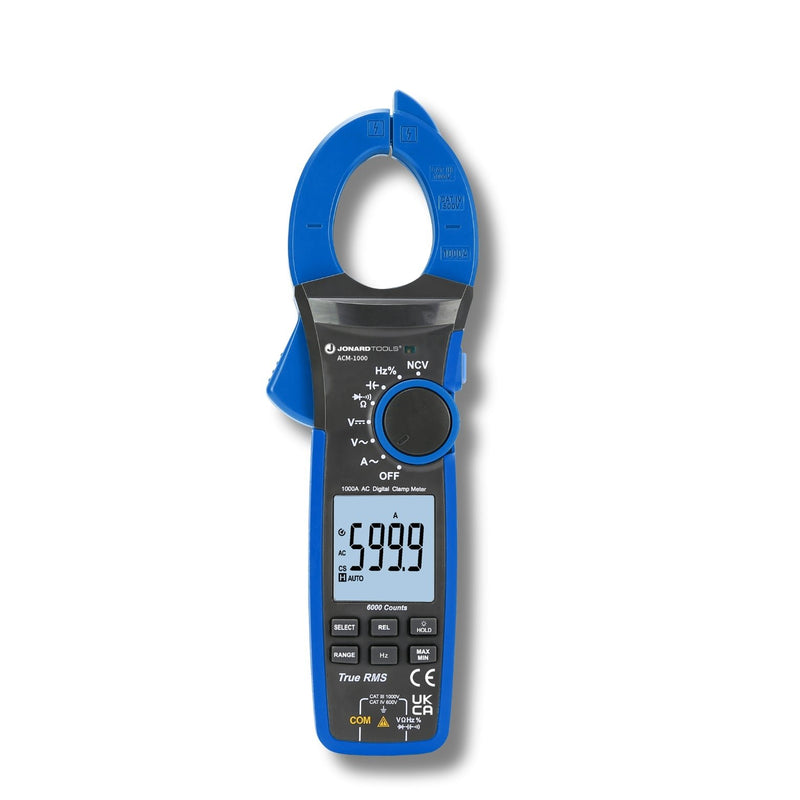

1000A Digital Clamp Meter
DESCRIPTION
Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy. This product features the following.
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- 45MM clamp opening for a wide range of applications
- Unique design with grooved housing for superior grip
- Non-contact voltage tester integrated into the clamp
- Includes (3) AAA batteries required for operation
DOCUMENTS
SPECIFICATIONS
| AC Current |
1000A |
|---|---|
| AC voltage |
1000V |
| Resistance |
40MO |
| Capacitance |
40mF |
| Temperature |
-C40-C1000/-F40-F1832 |
| Jaw Opening |
45mm |
| Overvoltage Category |
CAT IV 600V, CAT III 1000V |
| Dimensions | 12.25 in x 5.55 in x 2.48 in (31.12 cm x 14.08 cm x 6.29 cm) |
| Weight | 1.7 lb (773.616 g) |
| UPC # | 00810053359518 |
Common Questions About the 1000A Digital Clamp Meter
What is the Jonard Tools ACM-1000 used for?
The Jonard Tools ACM-1000 is used to measure AC current, AC and DC voltage, resistance, continuity, frequency, capacitance, and temperature in electrical and industrial applications.
Who is this digital clamp meter designed for?
This clamp meter is designed for electricians, technicians, and contractors who need accurate, safe electrical measurements in residential, commercial, and industrial environments.
What makes the ACM-1000 different from standard clamp meters?
The ACM-1000 features true RMS auto ranging accuracy, a wide 45 mm clamp opening, integrated non contact voltage detection, and high safety ratings up to CAT IV 600V.
At a Glance
• Digital clamp meter with 1000 amp AC current capability
• True RMS auto ranging for accurate measurements
• Integrated non contact voltage tester
• CAT IV 600V and CAT III 1000V safety rated
