TEMPO | Active Clad Fusion Splicer Kit (CONTRACTOR BUNDLE) | #915FS-KIT2
TEMPO COMMUNICATIONS | PART #915FS-KIT2

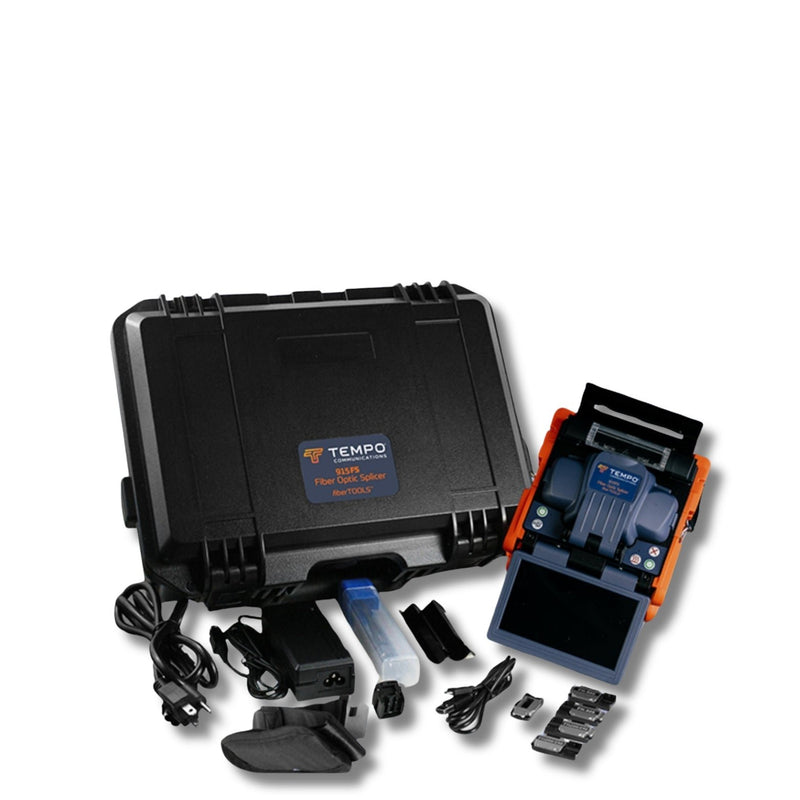

Active Clad Fusion Splicer Kit (CONTRACTOR BUNDLE)
Bundles the fusion splicer, cleaver, an extra battery, and fiber strippers so that the technician has all of the tools they will need. Backed by 3-year warranty.
DESCRIPTION
The 915FS touchscreen optical fusion splicer uses active cladding alignment technology which allows the technician to reliably fuse fiber optic cables with low splice losses. Active clad technology splicers provide a more cost effective splicing alternative to core alignment but still provides low splice losses which is ideally suited for FTTH installations.
The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTTx, P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.
The 915FS uses the Tempo Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure prone mechanical connector. Splice on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice on connector is pre-cleaved and also eliminates the need for a splice tray.
OVERVIEW
- Active clad four motor technology
- Seven-second splicing
- Five-second boot time
- 200 complete cycles per battery charge
- Compact and lightweight for the most demanding jobs
- Compatible with loose tube fibers
- Screenshot capable
- Drop tested to 76cm
- Eighteen-second shrink time
- 5,000 burns electrode life
- Attenuation mode capable
- Password protection for anti-theft
- Compatible with splice on connectors, SC, LC, FC, and ST
- IP52 compliant
- On-board instruction manual
- 5.0” Color LCD touchscreen
- 3-year warranty
