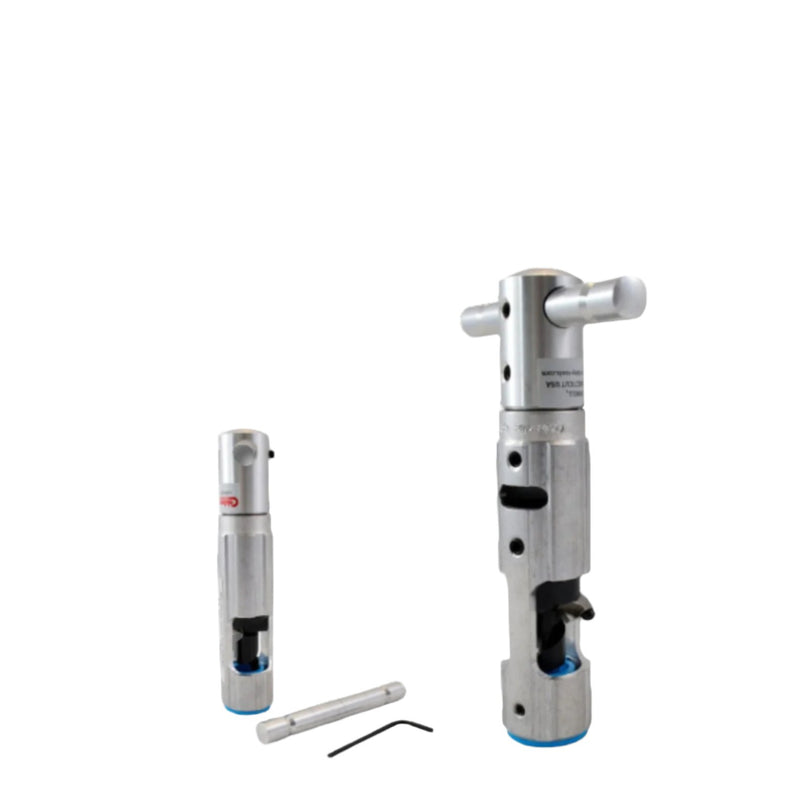

RIPLEY CABLEMATIC | CST 625 Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter | #32010

RIPLEY CABLEMATIC | PART #32010

CST 625 Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter

DESCRIPTION

Ripley's CST-625 features manual or drill operation with a standard "T" handle and a built in 3/8" drill adapter. It also features a heat treated, sheath cutting blade that produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit. The CST-625 is a great addition to any tool kit with its ability to be used on CommScope P1, P3 Cable Guard Cable; Times Fiber T4, T6, T10 Cable; Alcatel Cable Benelux - ACE Cable. Coring and Stripping has never been easier

OVERVIEW

• Combination tool quickly strips the sheath & cores the dielectric on cables in one precise operation
• Durable, all-metal construction with color-coded guide sleeves provide easy identification
• Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced
• Strip stops available for strip lengths of 0.5″ to 2″ (12.7 to 50.8 mm)
• Standard models feature a “T” handle with a built-in 3/8″ drill adapter & ratchet models feature a ratchet “T” handle with a separate 3/8″ drill adapter for manual or drill operations

SPECIFICATIONS

•    Standard "T" handle with a separate 3/8" drill adapter
•    Cable Type: 625 kcmil
•    Sleeve Color: Blue
•    Length: 6.88 in.
•    Weight: 13 oz.

Common Questions About the Ripley Cablematic CST 625 Coring, Stripping and Chamfering Tool

What is the Ripley Cablematic CST 625 used for?
The Ripley Cablematic CST 625 is used to core dielectric foam, strip the polyethylene jacket, and chamfer the aluminum sheath on trunk and distribution coaxial cables in one precise operation.

Who is this coring and stripping tool designed for?
This tool is designed for cable technicians, broadband installers, and CATV maintenance crews working with mid size trunk and distribution coaxial cable systems.

What makes the CST 625 different from standard coring tools?
Unlike single function tools, the CST 625 combines coring, stripping, and chamfering into one durable all metal tool, features color coded guide sleeves for quick identification, and supports both manual and drill powered operation using a 3/8 inch drill adapter.

At a Glance

• Combination coring, stripping, and chamfering tool
• Cores dielectric and strips jacket in one operation
• Compatible with 625 kcmil coaxial cable
• Works with P1, P3, T4, T6, T10, and ACE cables
• Heat treated, replaceable sheath cutting blade
• Manual or drill operation with 3/8 inch drill adapter
