RIPLEY MILLER | ACS-2 Cable Slitter for Armored & Heavy-Duty Cable | #37897

RIPLEY MILLER | PART #37897

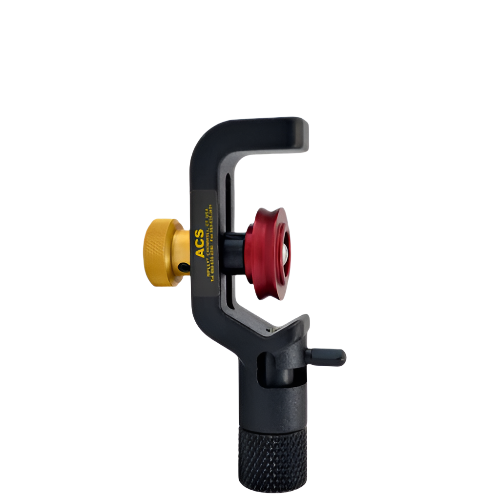

ACS-2 Cable Slitter for Armored & Heavy-Duty Cable

DESCRIPTION

Professional-grade tool ideal for slitting the armor layer on fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables

ACS Tools are designed to work on jacketed or jacketed and armored multi-fiber cable. Their main purpose is to gain midspan access to fiber optic conductors by slitting the outer jacket or jacket and armor on the above cables. The tools are designed with a precision adjustable blade to avoid damage to the fibers. The cable outer diameter range is noted below for each model. The blade can be set up to .215”(5.5mm) deep for each model.

OVERVIEW

• Professional-grade tool ideal for slitting the armor layer on fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables
• Versatile design features a guide wheel for stability to accurately slit the outer polyethylene jacket & armor in one step
• Performs longitudinal slitting & circumferential (ringing) stripping on cable ends
• Red guide wheel blade lever activation rotates the blade 90° to easily prepare cable mid-spans

SPECIFICATIONS

• Patent Number(s): U.S. Patent # D505,056S
• Guide Wheel: 37896
• Guide Wheel Color: Red
• Length: 5" (127 mm)
• Weight: 10 oz (284 g)
• Replacement Blade Part: 37884
