TREND NETWORKS | FiberMASTER Quad OTDR | #R240-QIP

FiberMASTER Quad OTDR

DESCRIPTION

The Trend Networks R240QIP FiberMASTER Quad OTDR with SC Connectors, Inspection Port and Power Meter features high dynamic range and small dead zones providing precision required for installation and troubleshooting. The software simplifies certification of cabling to meet TIA/ISO/IEC/IEEE requirements with simple pass/fail results

• Test longer fibers and maintain accuracy on high-loss fibers
• Surroundeded by thick rubber housing
• No boot up time or delay

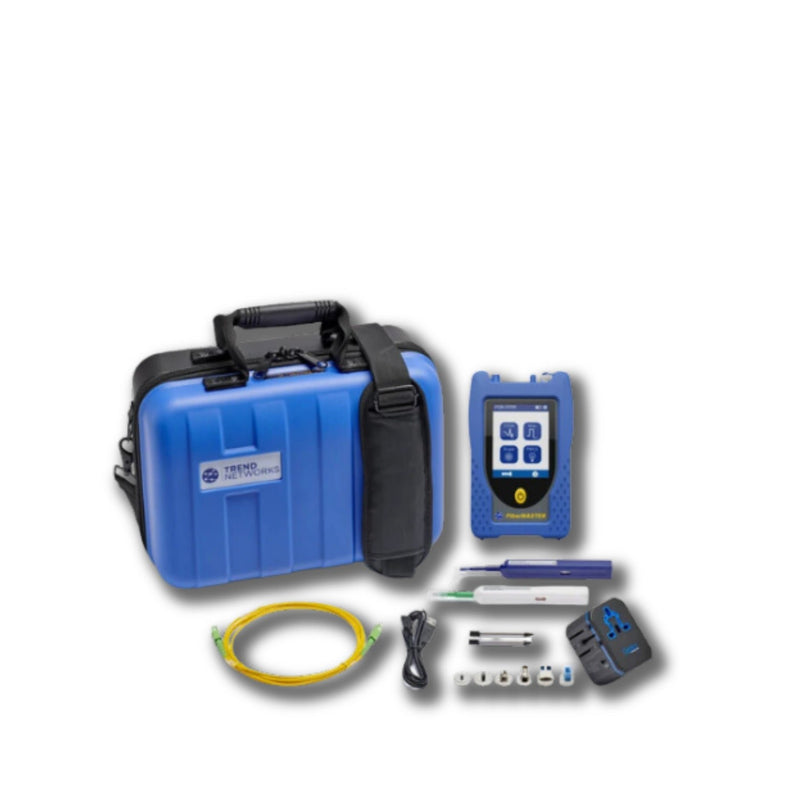

INCLUDES

• 1 - FiberMASTER Quad OTDR: 850 / 1300 / 1310 / 1550 nm
• 1 - Inspection Port
• 1 - Power Meter: 850 to 1625 nm
• 2 - Styluses
• 1 - USB Cable
• 1 - Power Adapter
• 1 - Cleaning Pen, 2.5mm
• 1 - Cleaning Pen, 1.25mm
• 1 - SM Cable SC-SC, 2m
• 1 - SM Cable LC-SC, 2m
• 1 - MM Cable SC-SC, 2m
• 1 - MM Cable LC-SC, 2m
• 1 - Hard Carrying Case


FEATURES

• FiberMASTER Quad OTDR (850/1300/1310/1550) with SC Connectors, Inspection Port and Power Meter
• Distance accuracy verified by German test laboratory, GHMT AG in accordance with Telcordia GR-196 specifications
• Test longer fibers, PON systems and maintain accuracy on high-loss fibers
• Surroundeded by thick rubber housing
• No boot up time or delay, simply turn on and start testing
• Touchscreen user interface will guide users through setup and testing process to reduce potential mistakes as well as saving time in training field technicians
• High quality rigid case keeps device as good as new

DOCUMENTS

FiberMASTER Quad OTDR Datasheet

Common Questions About the FiberMASTER Quad OTDR

What is the FiberMASTER Quad OTDR used for

The FiberMASTER Quad OTDR is used for fiber optic testing, installation verification, troubleshooting, and certification of single mode and multimode fiber networks.

What wavelengths does the FiberMASTER Quad OTDR support

This Quad OTDR supports 850, 1300, 1310, and 1550 nm wavelengths, allowing technicians to test both multimode and single mode fiber with one device.

Who is the FiberMASTER Quad OTDR designed for

This OTDR is designed for fiber installation technicians, telecom contractors, network engineers, and maintenance crews who need accurate testing for short and long fiber runs, including high loss and PON environments.

Does the FiberMASTER Quad OTDR include a power meter and inspection port

Yes. The FiberMASTER Quad OTDR includes an integrated power meter covering 850 to 1625 nm and a built in inspection port for end face inspection, reducing the need for additional test equipment.

How the FiberMASTER Quad OTDR Supports Fiber Testing and Certification

The FiberMASTER Quad OTDR is built to simplify fiber testing while maintaining high accuracy. With small dead zones, high dynamic range, and automated pass fail results, it helps crews quickly certify fiber links, identify faults, and troubleshoot issues without complex setup or training delays.

At a Glance

• Quad wavelength OTDR for single mode and multimode fiber testing
• Supports installation, troubleshooting, and certification workflows
• Integrated inspection port and power meter
• Designed for long distance and high loss fiber networks
• Durable housing for field use
