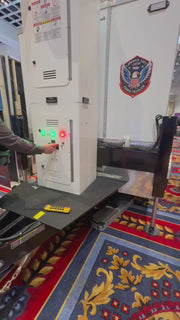

Trailer comes with a remote control that has an auto-level feature once you have positioned the trailer. An app is also available on your phone that does the auto-leveling, and you can control the jacks individually as well. Trailer was tip tested with 500 lbs. of weight. It is less likely to tip than a conventional bucket truck. To err on the safe side, we recommend not exceeding 300 lbs. of weight in the bucket.

Trailers cannot be purchased directly through our online store. For a customized quote, please contact us directly via phone or email.

PHONE: 812-501-5043 | EMAIL: orders@destinysolutions.us

When emailing, please provide the following details for quicker processing:

• First & Last Name:
• Company Name (if applicable):
• Shipping Address:
• Part Name & Number:

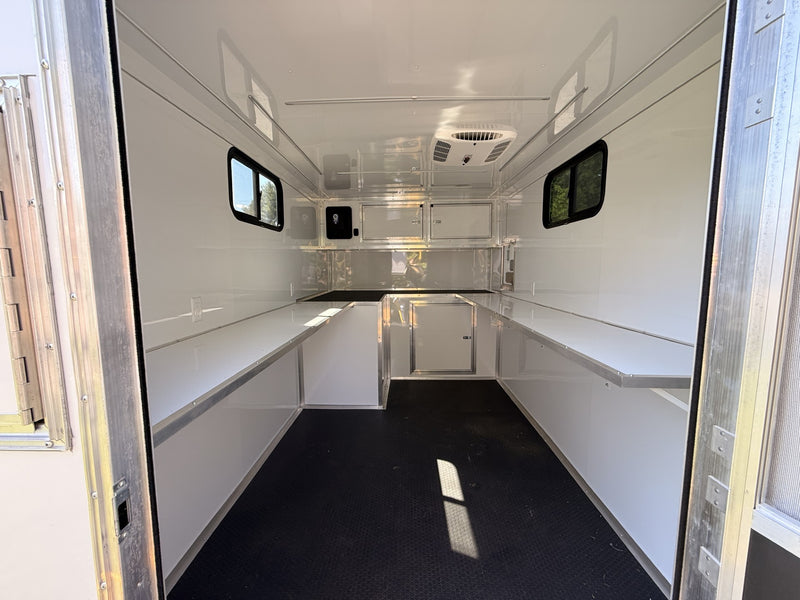

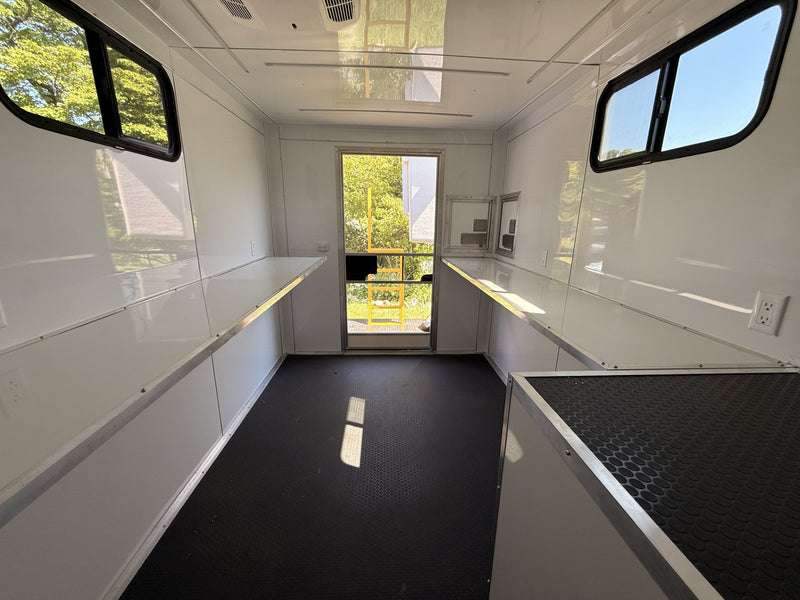

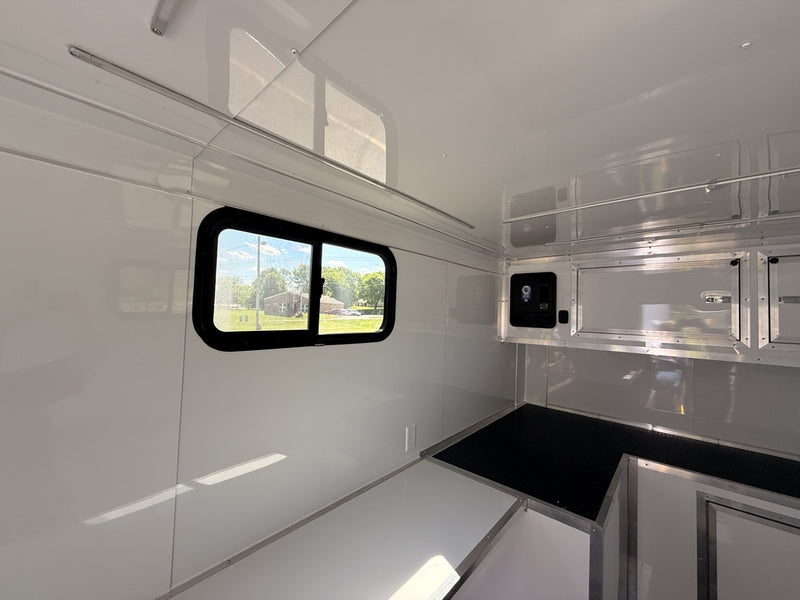

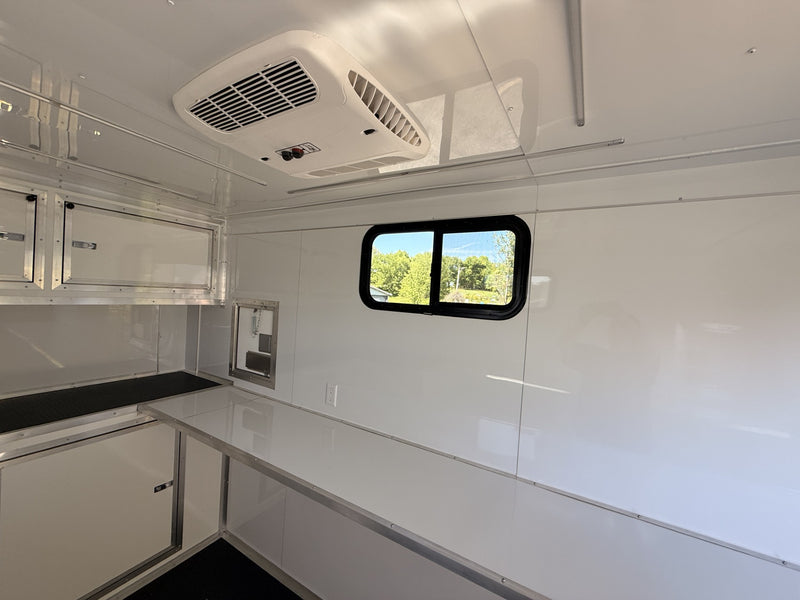

• 7x12' Splicing Cab
• 7 G 2x8 Frame/Outer Rail
• Splicing Bridge
• 2 - 20x20" Fiber Splicing Doors

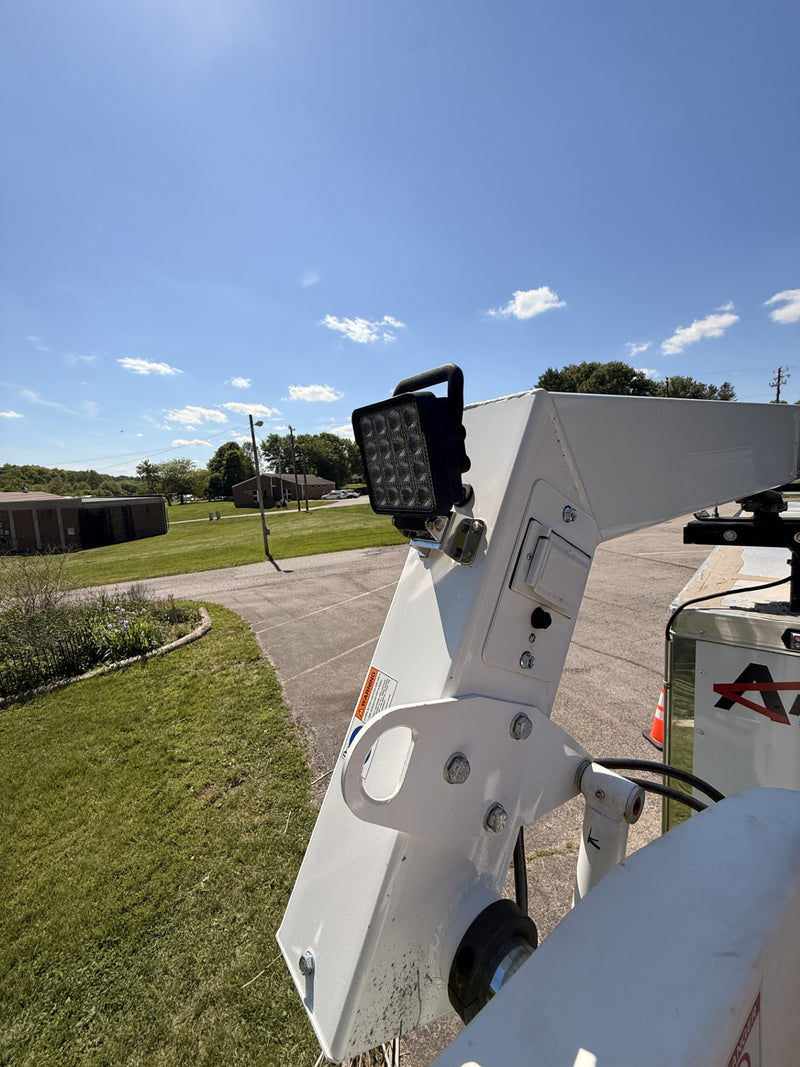

• Directional Light Bar
• 3/4" Floor, 3/8" Wall Liner
• 1 Piece Aluminum Roof
• Tongue Weight - 900lb
• Overall Weight – 8,250lb
• 2 - 7Llb Tandem Axels
• Auto leveling system – with app

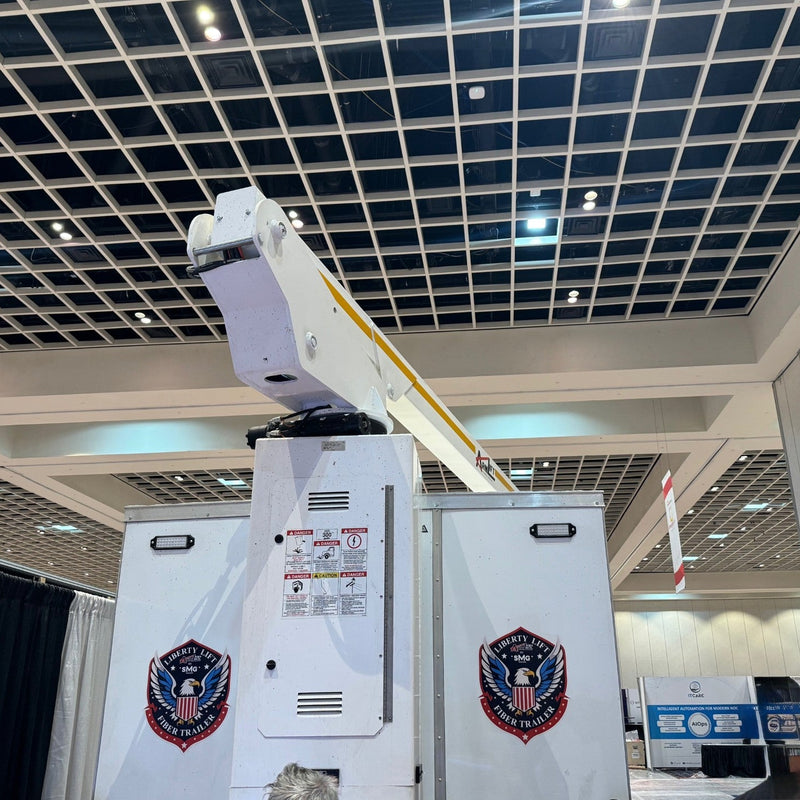

ABOUT THE BOOM

• 2 Speed Electric over Hydraulic Motor (Start Stop at Bucket & Base)

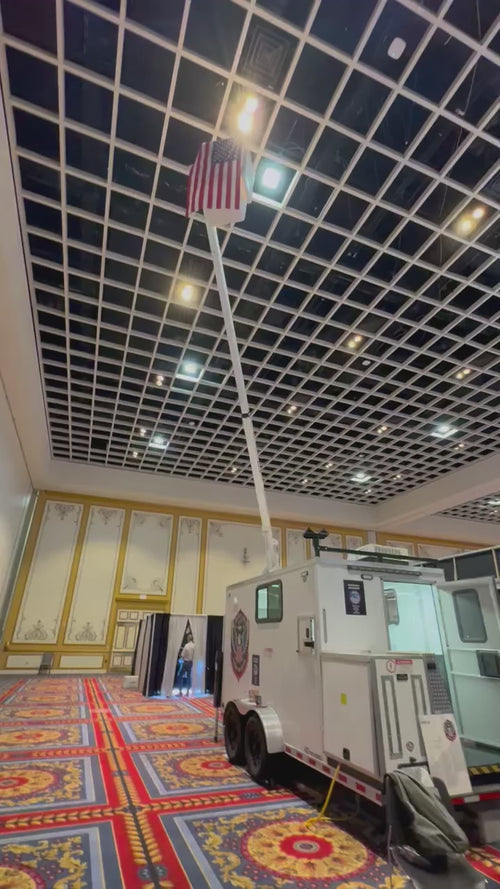

• 34'6" - Vertical Height (Ground to Bottom of Bucket)
• 25'8" - Horizontal Side Reach
• 39'6" - Working Height

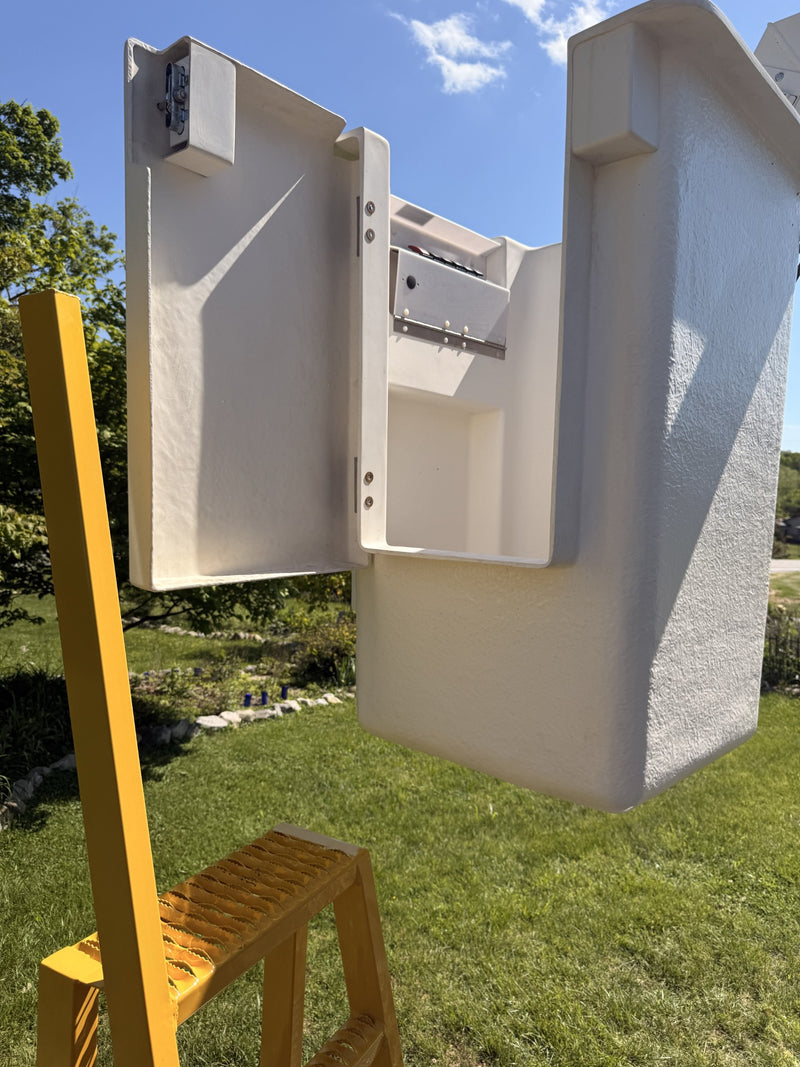

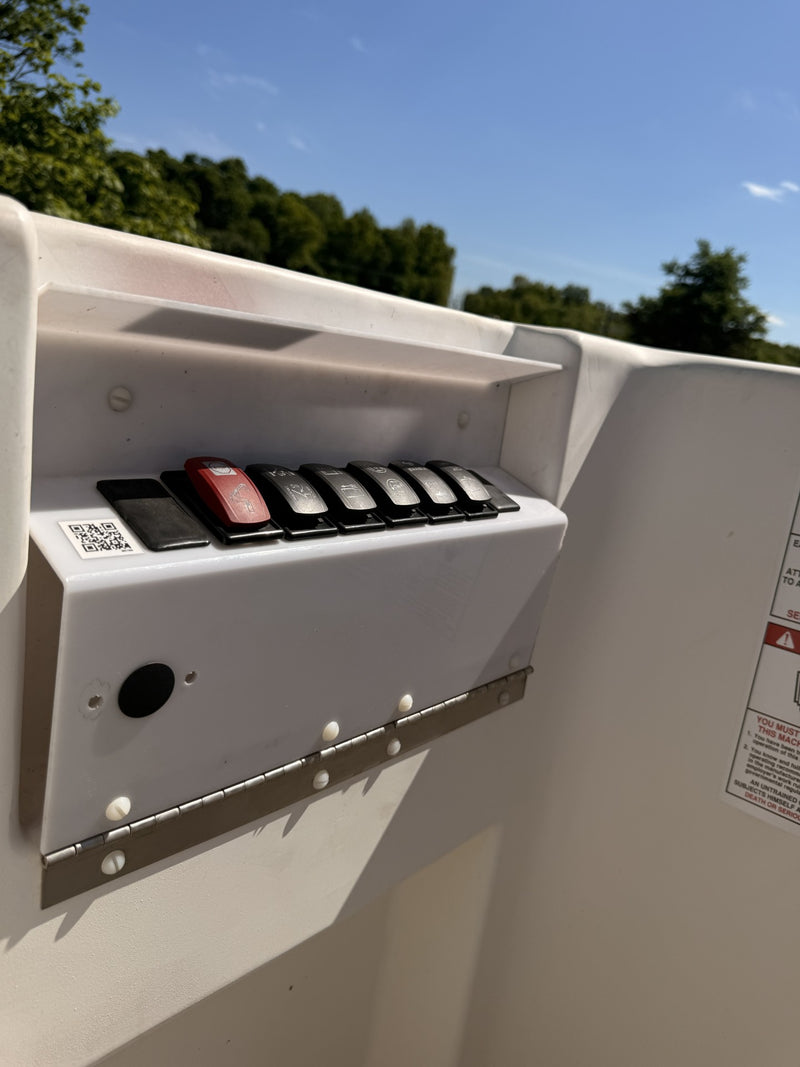

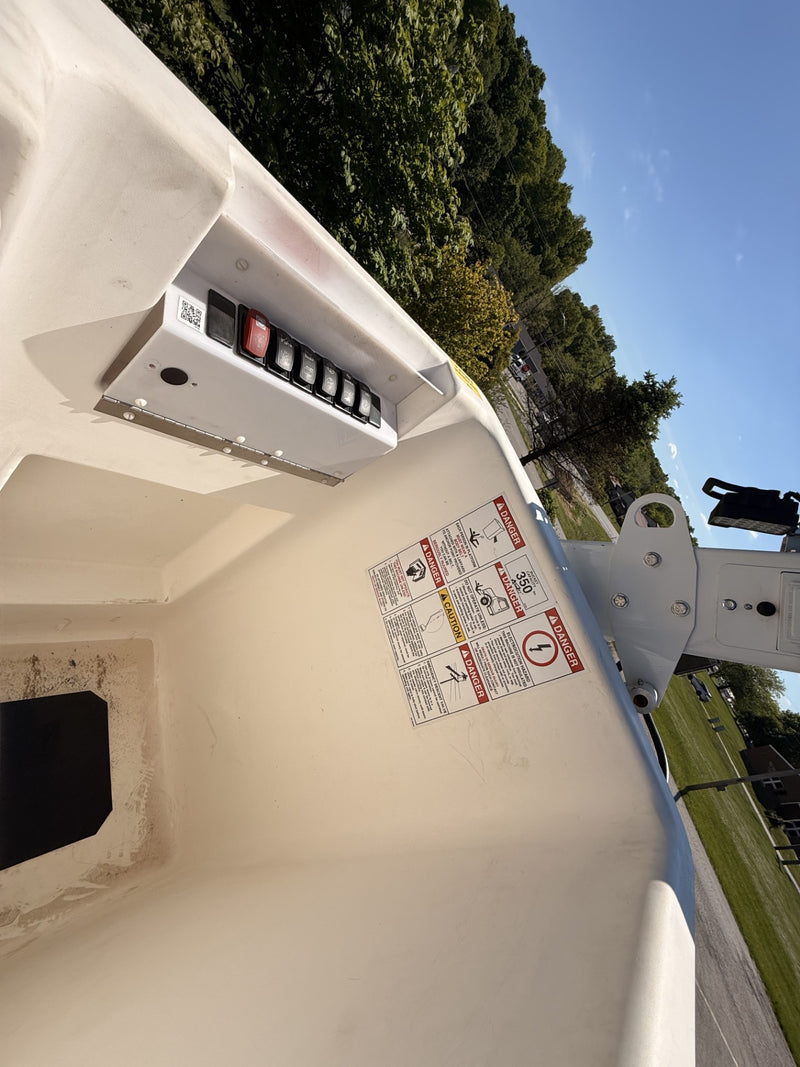

• Steel or Fiber Bucket with Switch Pod - (300lb weight capacity)
• Two 6 V Lead Batteries - Built in charge during Generator Operations

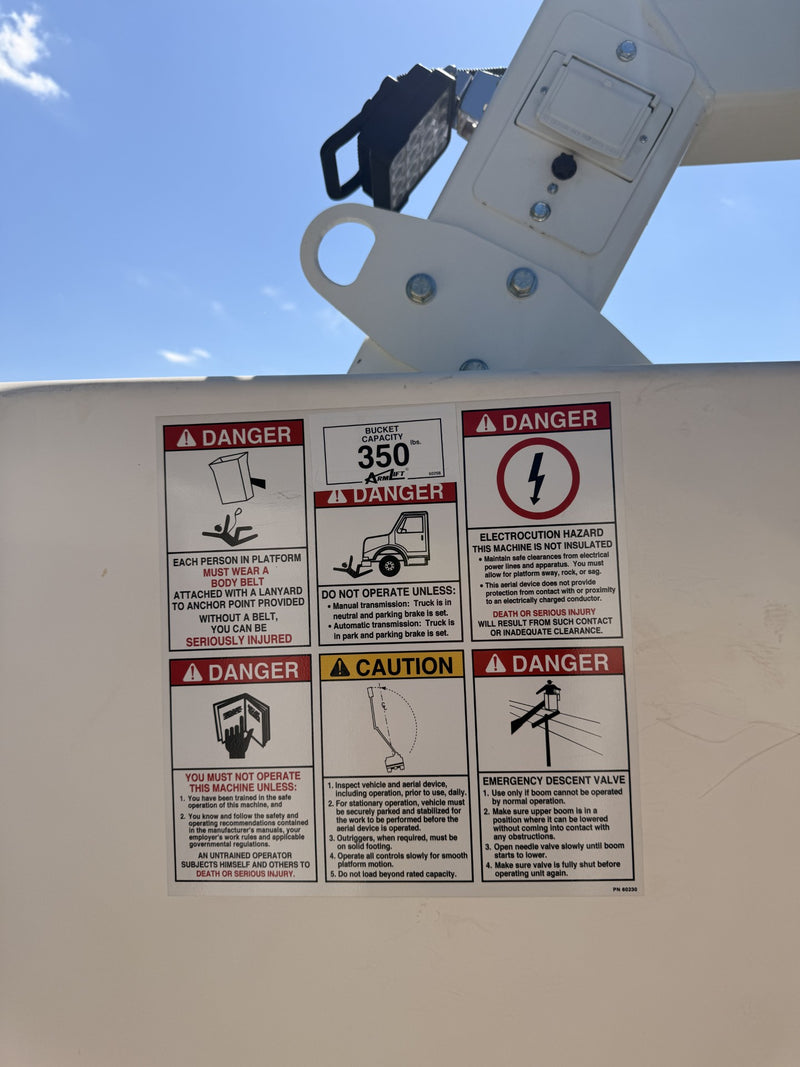

• Meets OSHA and ANSI 92.2 Requirements
• Emergency Descent Valves
• Creep & Lock Prevention
• 3 YEAR LIMITED WARRANTY

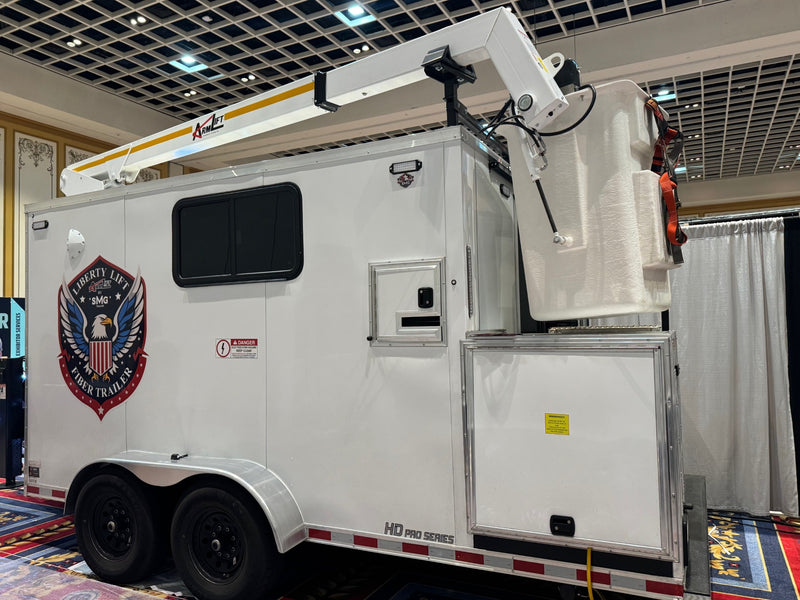

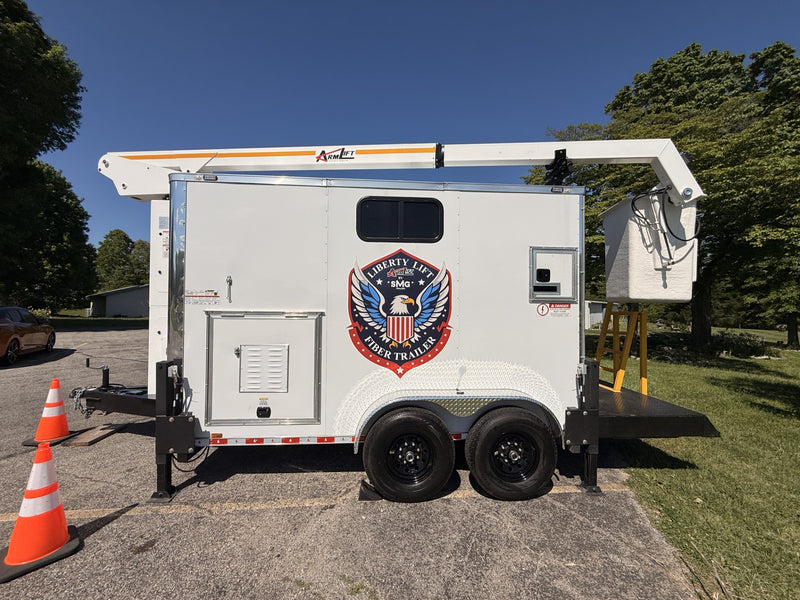

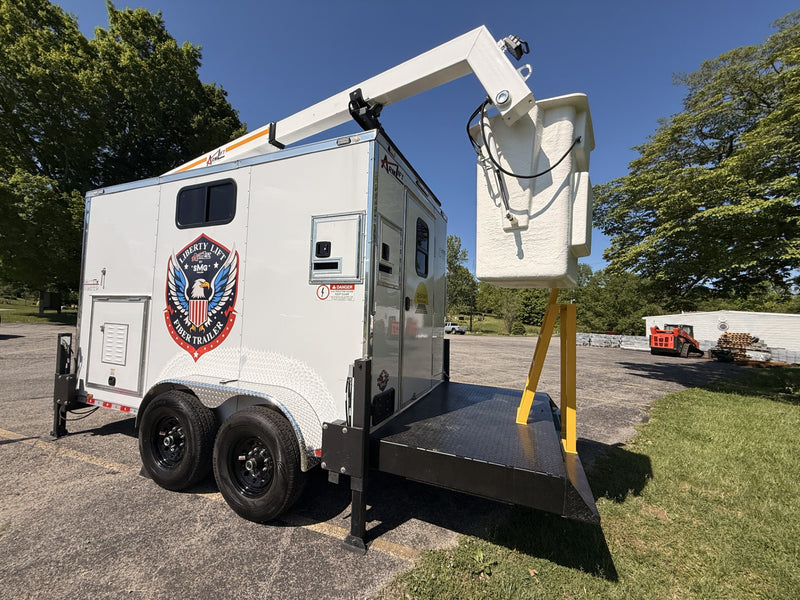

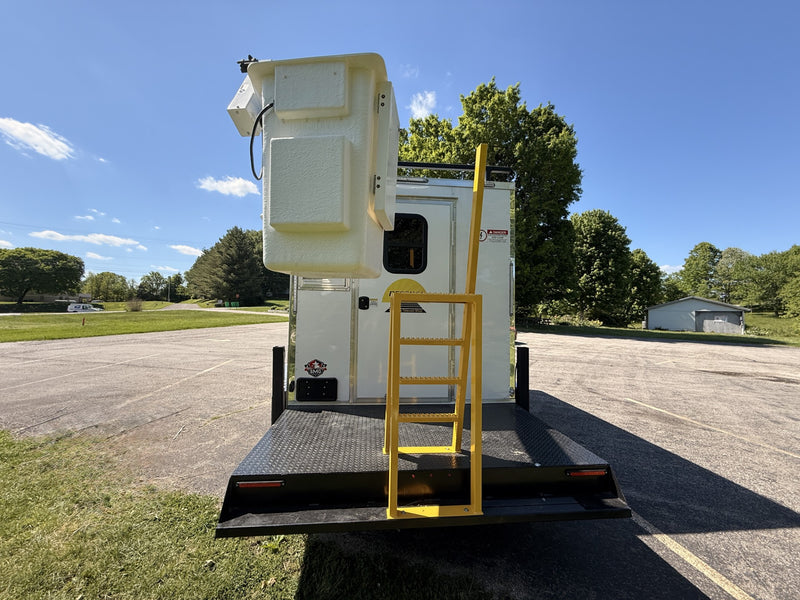

Common Questions About the Liberty Lift Bucket Lift Fiber Trailer

What is the Liberty Lift Bucket Lift Fiber Trailer used for?
The Liberty Lift Bucket Lift Fiber Trailer is used for fiber optic splicing, aerial fiber installation, and overhead maintenance where technicians need a mobile workspace combined with an integrated bucket lift.

Who is this trailer designed for?
This trailer is designed for fiber contractors, telecommunications crews, and utility teams that perform aerial fiber work and need both a splicing cab and a bucket lift in one mobile solution.

What makes the Liberty Lift different from a standard fiber splicing trailer?
Unlike a standard splicing trailer, the Liberty Lift combines a fully enclosed fiber-ready splicing cab with a hydraulic bucket lift, allowing crews to complete overhead work and splicing from a single trailer.

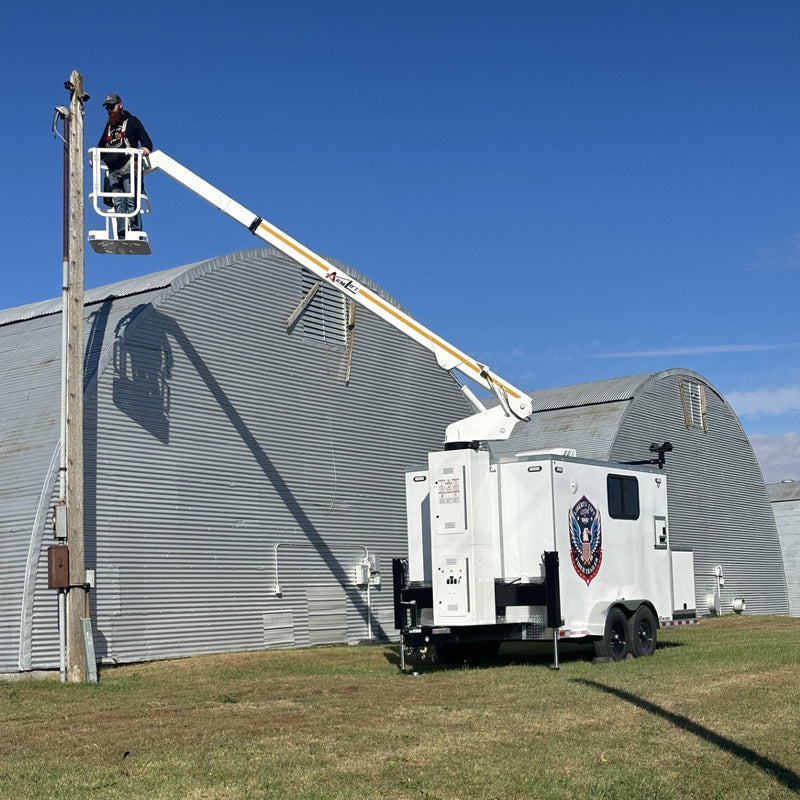

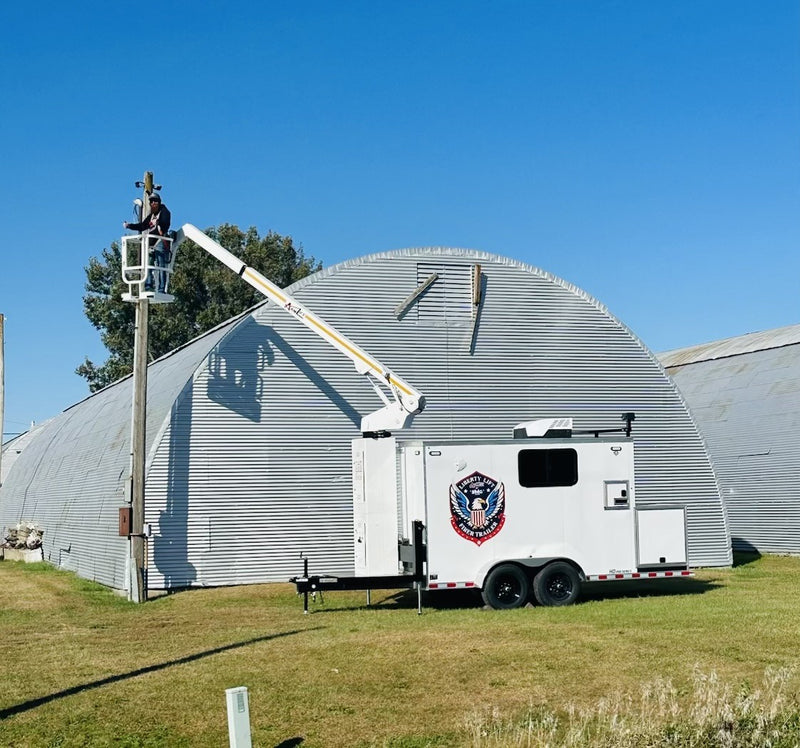

How the Liberty Lift Supports Aerial Fiber Work

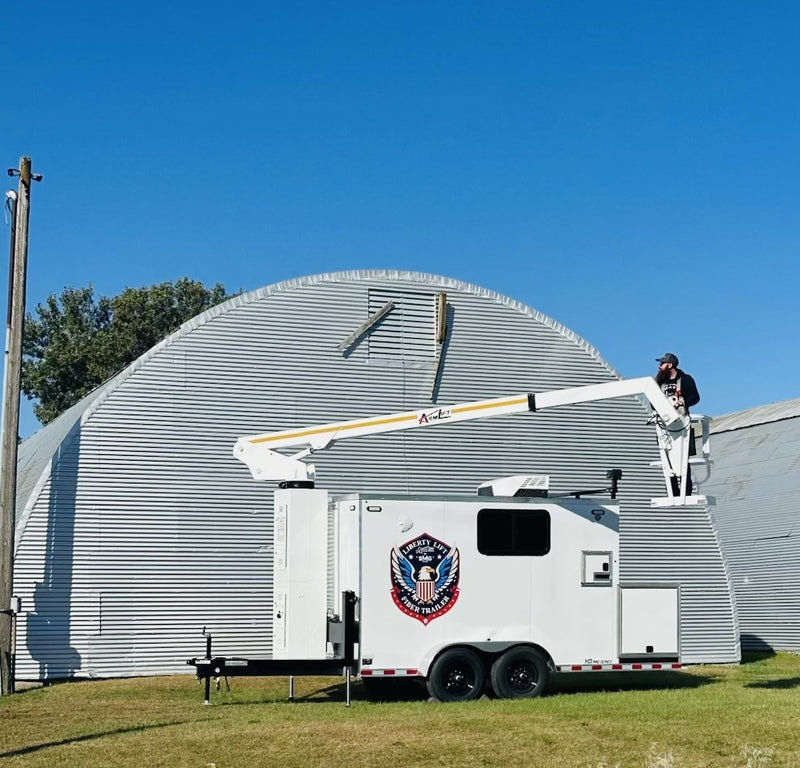

The SMG Liberty Lift Bucket Lift Fiber Trailer is built to support modern aerial fiber construction and maintenance workflows. By combining a dedicated splicing environment with a high reach bucket lift, it reduces the need for multiple vehicles on job sites and helps crews work more efficiently during installation and repair projects.

At a Glance

• Fiber-ready splicing trailer with integrated bucket lift

• Designed for aerial fiber installation and overhead maintenance

• Combines splicing cab and lift equipment in one mobile unit

• Suitable for telecom and fiber construction crews

• Built to meet OSHA and ANSI safety requirements
