TEMPO | Triple Optical Laser Light Source | #T28010-APC
TEMPO COMMUNICATIONS | PART #T28010-APC

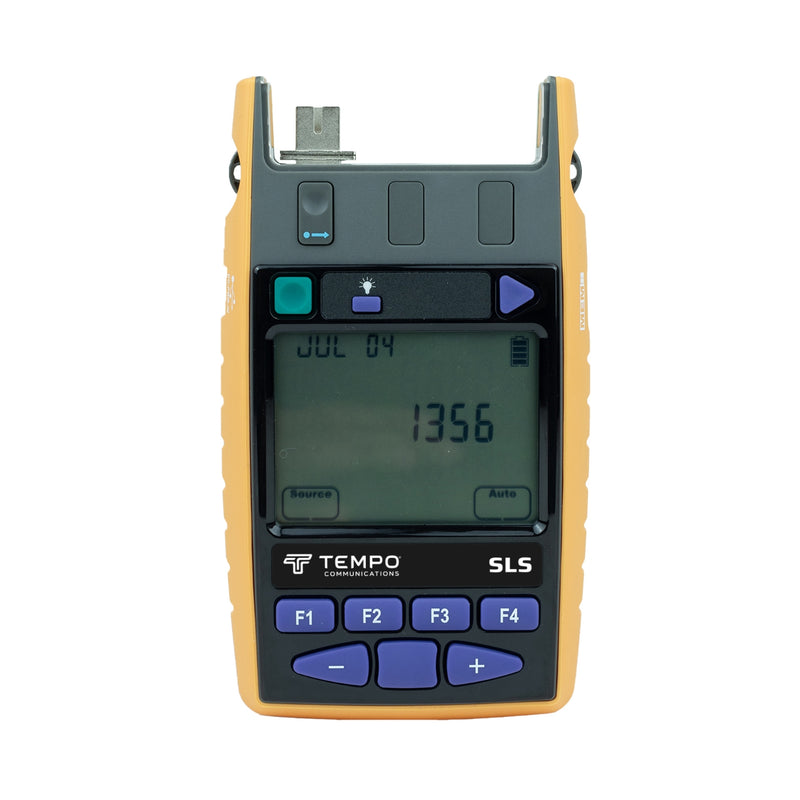

Triple Optical Laser Light Source
DESCRIPTION
This triple laser source is a general purpose test source for single mode systems with an APC connector, at 1310-1550-1625 nm. Typical applications include fiber optic attenuation measurement, polarity testing and fiber identification on critical systems.
OVERVIEW
- Easy to use, rugged & versatile
- Long battery life, micro USB power/charger
- Interchangeable connectors with dust cap & tilt bail
- Superior re-connection repeatability, < 0.1 dB
- Excellent stability
- Autotest & Multi-Fiber ID Tone generator
- Full QA & test reports ISO/IEC 17025 traceable
- Made in Australia
DOCUMENTS
User Manual KI2600 KI2700 KI2800 content Rev20
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Output wavelength | Port 1: 1310, 1550, 1625 nm Laser APC |
| Output power | -3 dBm ±1 dB (@ 9/125 µm) |
| Adjust output power | Adjustable over 7 dB in 0.01 dB steps |
| Short term stability (for 15 min, typical ±2 °C, after warm up, ORL < -25 dB) | 0.04 dB (for 1310, 1550 nm) / 0.06 dB (for 1625 nm) |
| Stability over temperature | 0.6 dB (typical) |
| Wavelength initial tolerance (@ 25 °C) | 20 nm |
| Spectrum width (FWHM) | 3 nm (typical) |
| Wavelength drift | 0.4 nm per °C (typical) |
| Reconnection repeatability (95% confidence) | 0.1 dB |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Modulated output | 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tones |
| Autotest (not available for 470, 540 nm LED sources) | Compatible with KI Autotest power meter port & matching λ |
| Power | Battery / External power via USB |
| Battery types | 2x AA (LR6) Alkaline / 2x AA NiMH AA (rechargeable via USB) |
| Battery life | Laser/LED source: 90/80 hours in Autotest, typical |
| Auto off | Selectable |
| Case | Polycarbonate (body) / rubber (edges & corners), moisture resistance, 1-meter drop tested |
| Size | 190 mm x 105 mm x 35 mm |
| Unit weight | 0.42 kg |
| Shipping weight | 1.5 Kg |
| Operating / storage temperature | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 years |
| Country of Origin | Australia |
Common Questions About the Triple Optical Laser Light Source
What wavelengths does this laser source support?
It outputs three single mode laser wavelengths at 1310, 1550, and 1625 nm through an APC connector, covering standard, long haul, and monitoring applications.
What testing applications is it best suited for?
It is commonly used for attenuation measurement, polarity testing, and fiber identification on critical single mode systems.
How stable is the output for certification testing?
The source offers excellent short term and temperature stability with reconnection repeatability better than 0.1 dB, supporting accurate, repeatable results.
Can it be used with automated test workflows?
Yes, it supports Autotest operation and multi-fiber ID tone generation when paired with compatible Autotest power meters.
At a Glance
• Triple wavelength single mode laser source at 1310, 1550, and 1625 nm
• APC connector for improved reflectance performance
• Adjustable output power with excellent stability
• Supports Autotest and multi-fiber ID tones
• Long battery life with USB charging
• ISO IEC 17025 traceable calibration, made in Australia
