TEMPO | Simple Test Kit SM | #TK056

Original price $1,863.20 - Original price $1,863.20
Original price
$1,863.20
$1,863.20 - $1,863.20
Current price $1,863.20

TEMPO COMMUNICATIONS | PART #TK056

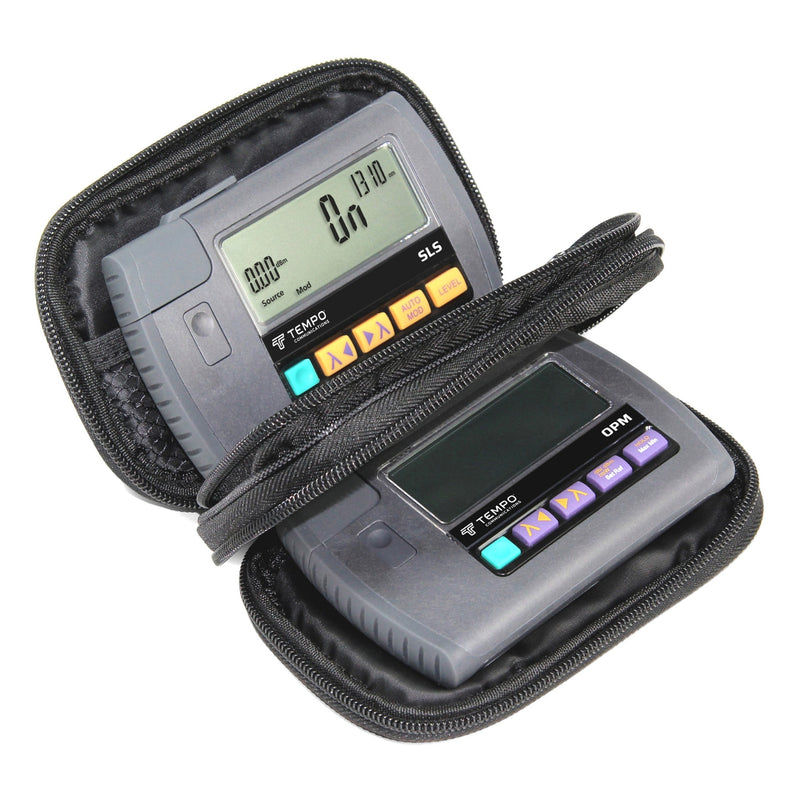

Simple Test Kit SM

DESCRIPTION

A simple fiber testing kit, excellent for low to modest test volume on single mode systems. An optical power meter with laser source kit.

Typical test applications

  • Optical power at 8 calibrated λ, -60 to +5 dBm range.
  • Optical loss on SM fiber at 1310/1550 nm, 60 dB range.
  • Reporting software for cable loss, manual data entry.
  • Optical continuity / tone source & meter, 12 fiber Multi-Fiber ID, 40 dB range.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts PC polish.
Meter 2 x AAA alkaline. Run time >300 hours.
Source 2 x AAA alkaline. Run time >40 hours.

OVERVIEW

Includes:

  • FIBER OPTIC LASER TEST SOURCE T9822A
  • POCKET FIBER OPTIC POWER METER T9600A
  • CANVAS CARRYING POUCH

SPECIFICATIONS

Attribute Name Attribute Value
POCKET FIBER OPTIC POWER METER T9600A
Detector type InGaAs
Response wavelength 600 ~ 1700 nm
Calibration wavelengths 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm
Power range +5 ~ -60 dBm
Mid-range linearity 0.04 dB (typical)
Total uncertainty 0.3 dB (max)
Wavelength sensitivity (± 30 nm) 0.03 dB (typical)
ID tone detection sensitivity up -50 dBm
