TEMPO COMMUNICATIONS | PART #TK052
Simple LAN Test Kit MM
DESCRIPTION
A simple fiber cable test kit, the right solution for low to modest test volume on multimode LAN, with some single mode capability.
Typical test applications
- Optical power at 8 calibrated λ, -60 to +10 dBm range.
- Loss on MM fiber 850 / 1300 nm, 40 dB range, EF compliant.
- Optical loss on SM fiber at 1300 nm, 28 dB range.
- Reporting software for cable loss (manual data entry).
- Optical continuity / tone source & meter with 12 Multi-Fiber ID fiber, 40 dB range.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
SC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts PC polish.
Meter 2 x AAA alkaline. Run time >300 hours.
Source 2 x AAA alkaline. Run time >35 hours.
OVERVIEW

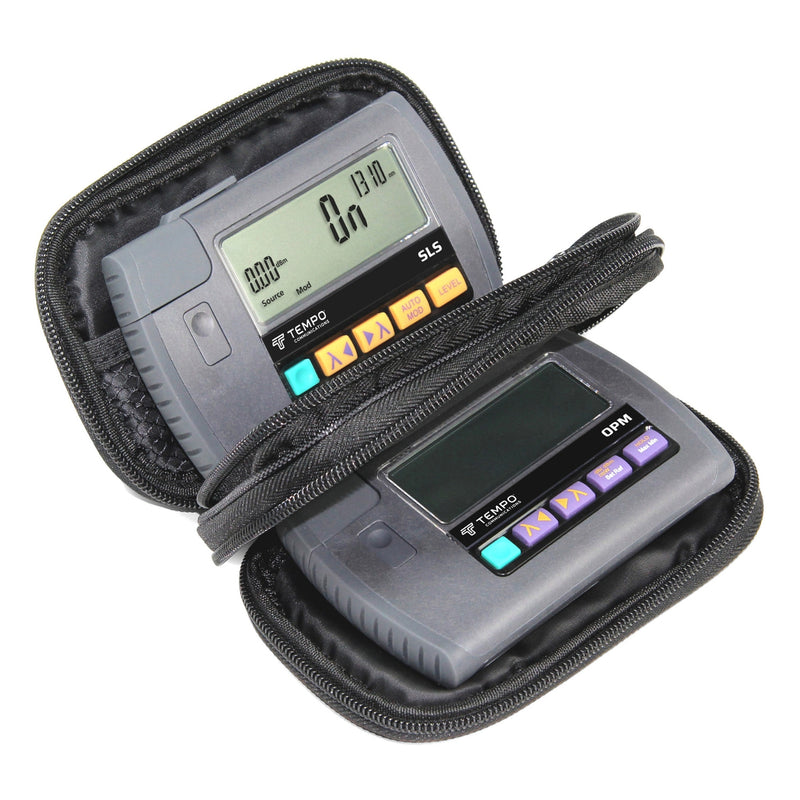

Includes:
- FIBER OPTIC LED TEST SOURCE T9812A
- POCKET FIBER OPTIC POWER METER T9600A
- CANVAS CARRYING POUCH
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| POCKET FIBER OPTIC POWER METER T9600A | |
| Detector type | InGaAs |
| Response wavelength | 600 ~ 1700 nm |
| Calibration wavelengths | 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm |
| Power range | +5 ~ -60 dBm |
| Mid-range linearity | 0.04 dB (typical) |
| Total uncertainty | 0.3 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.03 dB (typical) |
| ID tone detection sensitivity | up -50 dBm |
