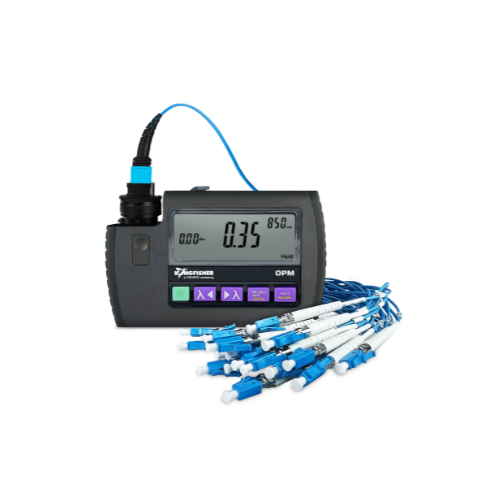

TEMPO | Pocket Optical Power Meter | #T9600XL-GE5
TEMPO COMMUNICATIONS | PART #T9600XL-GE5
Pocket Optical Power Meter
DESCRIPTION
A simple and reliable optical power meter with a large area 5 mm Ge detector for testing power and loss on fiber optic systems or free-space light beams up to +10 dBm. Ideal for: Plastic fiber, PCS, single mode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. This versatile meter is a popular MPO tester, providing high accuracy and simplicity of use. For all fiber optic Ethernet & Infiniband applications except 16 x 1 or 16 x 2 ribbon types.
Optional connector adapter not included, order separately.
OVERVIEW
- 12 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Large area detector for MPO applications
- Easy to use TamperLock mode
- Interchangeable connectors
- Full QA reports
- Made in Australia
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Detector type | GE (5 mm) |
| Response wavelength | 600 ~ 1650 nm |
| Calibration wavelengths | 660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm |
| Power range | +10 ~ -30 dBm (for 660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm) |
| Mid-range linearity | 0.06 dB (typical) |
| Total uncertainty | 0.5 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.04 dB (typical) |
| Response uniformity across detector | 2 % (0.09 dB) |
| ID tone detection sensitivity | -37 dBm |
| Accuracy | ±2 % |
| Calibration validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization sensitivity | < 0.05 dB (typical) |
| Tone detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | 300 Hours |
| Auto-off | Selectable |
| Size | 124 x 81 x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.5 kg |
| Operating / storage temperatures | -15 to 55 / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 Years |
| Country of Origin | Australia |
Common Questions About the Tempo T9600XL GE5 Pocket Optical Power Meter
What is the Tempo T9600XL GE5 Pocket Optical Power Meter used for?
The Tempo T9600XL GE5 is used to measure optical power and loss on fiber optic systems, multi fiber ribbon cables, MPO connections, and free space light beams up to +10 dBm.
What types of fiber can the T9600XL GE5 test?
The T9600XL GE5 supports plastic fiber, PCS, single mode, multimode, MMC, MPO 12 through 72 fiber, and common LC and SC fiber optic systems.
Why is the T9600XL GE5 useful for MPO fiber testing?
The T9600XL GE5 features a large area 5 mm Ge detector that accommodates multi fiber ribbon applications up to 12 fibers wide while providing accurate optical power measurements.
At a Glance
• Large area 5 mm Ge detector for MPO and multi fiber testing
• Tests fiber optic systems and free space light beams up to +10 dBm
• Supports single mode, multimode, plastic fiber, PCS, MMC, and MPO applications
• ±2 percent accuracy with 0.01 dB resolution
