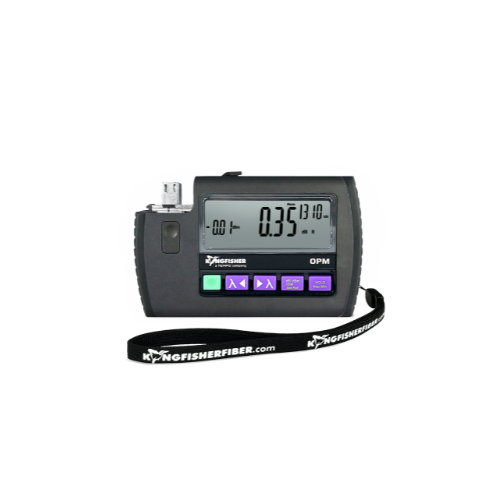

TEMPO | Pocket Optical Power Meter, High Power | #T9600A-H3B
TEMPO COMMUNICATIONS | PART #T9600A-H3B
Pocket Optical Power Meter, High Power
DESCRIPTION
A simple and reliable optical power meter for testing power and loss on high power fiber optic systems up to +24 dBm. It provides high accuracy and simplicity of use. An advanced netral density filter design offers improved accuracy for this type of instrument, and use of an InGaAs detector provides better accuracy and response flatness for DWDM systems up to 1650 nm.
OVERVIEW
- 9 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Easy to use TamperLock mode
- Interchangeable connectors
- Full QA reports
- Made in Australia
| Brochure T9600 A rev23 |
| Usermanual ki9000 |
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Detector type | InGaAs High Power |
| Response wavelength | 800 ~ 1700 nm |
| Calibrated wavelengths | 850, 1300, 1310, 1390, 1490, 1550, 1577, 1590, 1610, 1625 |
| Power range | +24 ~ -40 dBm |
| Mid-range linearity | 0.04 dB (typical) |
| Total uncertainty | 0.3 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.03 dB (typical) |
| ID tone detection sensitivity | up -30 dBm |
| Accuracy | ±2 % |
| Calibration validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization sensitivity | < 0.05 dB (typical) |
| Tone detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | 300 Hours |
| Auto-off | Selectable |
| Size | 124 x 81 x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.5 kg |
| Operating / storage temperatures | -15 to 55 / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 Years |
| Country of Origin | Australia |
Common Questions About the Tempo T9600A H3B High Power Optical Power Meter
What is the Tempo T9600A H3B Optical Power Meter used for?
The Tempo T9600A H3B is used to measure optical power and loss on high power fiber optic systems, including applications with optical power levels up to +24 dBm.
Who is the T9600A H3B designed for?
This optical power meter is designed for fiber optic technicians, telecommunications contractors, and network professionals testing high power fiber and DWDM systems.
What makes the T9600A H3B different from a standard optical power meter?
The T9600A H3B features a high power InGaAs detector and advanced neutral density filter design for accurate measurements on high power fiber systems and improved response flatness for DWDM applications.
At a Glance
• High power optical power meter with +24 to -40 dBm range
• InGaAs high power detector for fiber and DWDM testing
• ±2 percent accuracy with 0.01 dB resolution
• Tone detection with Multi Fiber ID and interchangeable connectors
