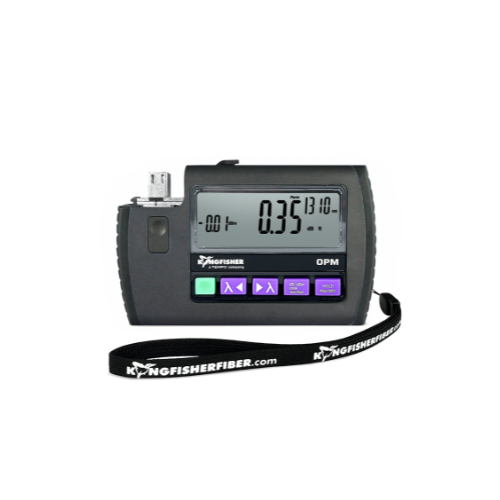

TEMPO | Pocket Fiber Optic Power Meter | #T9600A
TEMPO COMMUNICATIONS | PART #T9600A
Pocket Fiber Optic Power Meter
DESCRIPTION
A simple and reliable optical power meter for testing power and loss on typical multimode & single mode fiber optic systems. It provides high accuracy and simplicity of use.
- Send and identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labeling.
- High power detector optons with superior performance.
- 3x better accuracy in the 850 nm band.
- Use a single tester for: SC, LC, MPO, FC, HFBR, and other connectors – including universal and duplex options.
OVERVIEW
- 8 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
- Small size, easy to use, rugged & reliable
- dBm / dB / linear, 0.01 dB resolution
- Display hold & max/min recording
- Tone detector with Multi-Fiber ID
- Easy to use TamperLock mode
- Interchangeable connectors
- Full QA reports
- Made in Australia
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Detector type | InGaAs |
| Response wavelength | 600 ~ 1700 nm |
| Calibration wavelengths | 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm |
| Power range | +5 ~ -60 dBm |
| Mid-range linearity | 0.04 dB (typical) |
| Total uncertainty | 0.3 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.02 dB (typical) |
| ID tone detection sensitivity | up -50 dBm |
| Accuracy | ±2 % |
| Calibration validity | 3 Years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization sensitivity | < 0.05 dB (typical) |
| Tone detection | 200 ~ 2500 Hz ± 2 % |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | 300 Hours |
| Auto-off | Selectable |
| Size | 124 x 81 x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.5 kg |
| Operating / storage temperatures | -15 to 55 / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 Years |
| Country of Origin | Australia |
Common Questions About the Tempo T9600A Pocket Fiber Optic Power Meter
What is the Tempo T9600A Pocket Fiber Optic Power Meter used for?
The Tempo T9600A Pocket Fiber Optic Power Meter is used to measure optical power and loss on multimode and single mode fiber optic systems for installation, testing, and troubleshooting.
What fiber connectors can the T9600A test?
The T9600A supports interchangeable connector options for SC, LC, MPO, FC, HFBR, universal, duplex, and other fiber optic connector types.
What makes the T9600A useful for fiber optic technicians?
The T9600A combines ±2 percent accuracy, 0.01 dB resolution, multiple calibration wavelengths, tone detection with Multi Fiber ID, and a compact rugged design for field testing.
At a Glance
• Pocket optical power meter for multimode and single mode fiber
• ±2 percent accuracy with 0.01 dB resolution
• Tone detection with Multi Fiber ID for identification and continuity testing
• Interchangeable connectors for multiple fiber connector types
