TEMPO | Pocket Fiber Optic LED Test Source | #T9812A
TEMPO COMMUNICATIONS | PART #T9812A

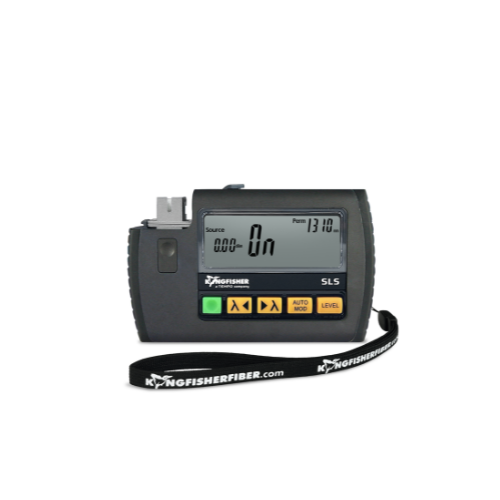

Pocket Fiber Optic LED Test Source
DESCRIPTION
A shirt-pocket size LED fiber source ideal for general testing of multimode, PCS or POF systems at 850 and 1300 nm. It provides, high accuracy and simplicity of use. It can also achieve useful short-range testing on singlemode systems at 1300 nm, since it has a specified output level into SMF.
OVERVIEW
- Encircled Flux compliant modal distribution
- Rugged, drop-resistant construction
- User defeatable auto turn-off
- Excellent stability

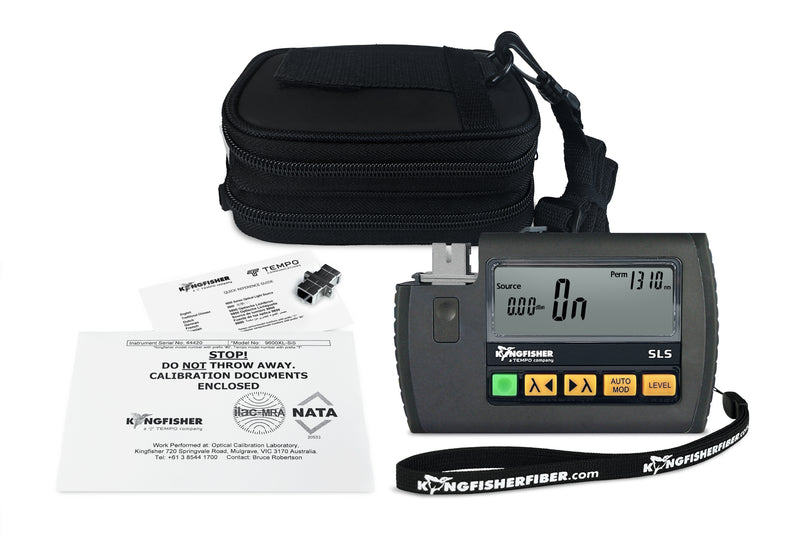

- Lanyard, shirt pocket clip & padded pouch
- Tone generator & Multi-Fiber ID function
- Easy use TamperLock mode
- Compatible with Autotest power meters
- Interchangeable connectors
- Full QA reports with ISO9001 compliant calibration
- Made in Australia
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Output wavelength | 850-1300 nm LED |
| Output power (fixed) | -20 dBm ±1 dB (@ 62.5/125 µm) / -22.5 dBm (@ 50/125 µm) / -32 dBm (@ 9.5/125 µm) |
| Short term stability (for 15 min, typical ±2 °C, after warm-up) | 0.01 dB |
| Stability over temperature | 0.35 dB (typical) |
| Wavelength drift | 0.4 dB (typical) |
| Mode Controlled | Mode distribution @ 50/125 µm is compliant with the following standards: IEC 61280-4-1 {Ed.1.0}, TIA/EIA 526-14A and TIA TSB-178. |
| Reconnection repeatability (95% confidence) | 0.05 dB |
| - | - |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Modulation | 270 Hz, 1 kHz, 2 kHz ±2 % |
| Multi-fiber ID | 12 fibers |
| Autotest | Compatible with KI Autotest power meter port & matching λ |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | Laser/LED source: 40/35 hours (typical) in Autotest |
| Auto off | Selectable |
| Case | Polycarbonate with captive dust cap, 2.5-meter drop tested |
| Size | 124 mm x 81 mm x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.3 kg |
| Operating / storage temperature | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95% |
| Warranty | 3 years |
| Country of Origin | Australia |
Common Questions About the Tempo T9812A Pocket Fiber Optic LED Test Source
What is the Tempo T9812A Pocket Fiber Optic LED Test Source used for?
The Tempo T9812A is used as an optical light source for testing fiber optic power and loss on multimode, PCS, and POF systems at 850 nm and 1300 nm.
What types of fiber can the T9812A test?
The T9812A is designed primarily for multimode, PCS, and plastic optical fiber systems and can also be used for short range testing on single mode fiber at 1300 nm.
What features does the T9812A provide for fiber testing?
The T9812A provides stable LED output, Encircled Flux compliant modal distribution, selectable tone generation, Multi Fiber ID for up to 12 fibers, and compatibility with KI Autotest power meters.
At a Glance
• 850 nm and 1300 nm LED fiber optic test source
• Ideal for multimode, PCS, and POF fiber testing
• Tone generator with Multi Fiber ID for up to 12 fibers
• Rugged pocket size design with interchangeable connectors
