TEMPO | Pocket Fiber Optic Laser Test Source | #T9822A
TEMPO COMMUNICATIONS | PART #T9822A

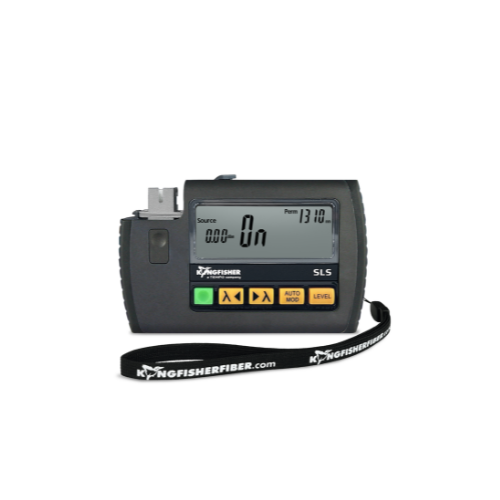

Pocket Fiber Optic Laser Test Source
DESCRIPTION
A shirt-pocket size fiber optic laser light source ideal for general testing of single mode systems at 1310 and 1550 nm. It provides, high accuracy and simplicity of use.
OVERVIEW
- Rugged, drop-resistant construction
- User defeatable auto turn-off
- Excellent stable lasers

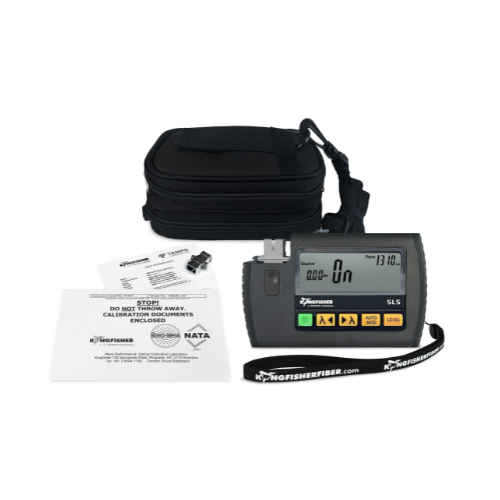

- Lanyard, shirt pocket clip & padded pouch
- Tone generator & Multi-Fiber ID function
- Easy use TamperLock mode
- Compatible with Autotest power meters
- Interchangeable connectors
- Full QA reports with ISO9001 compliant calibration
- Made in Australia
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Output wavelength | 1310, 1550 nm Laser |
| Output power (@ 9/125 µm, adjustable over 3 dB in 0.1 dB steps) | 0 dBm ±1 dB |
| Short term stability (for 15 min, typical ±2 °C, after warm-up, @ ORL < -25 dB) | 0.04 dB |
| Stability over temperature | 0.6 dB (typical) |
| Wavelength initial tolerance (@ 25 °C) | 20 nm |
| Spectrum width (FWHM) | 3 nm (typical) |
| Wavelength drift | 0.4 nm /°C (typical) |
| Reconnection repeatability (95% confidence) | 0.1 dB |
| Calibration validity (ISO/IEC 17025) | 3 years |
| Modulation | 270 Hz, 1 kHz, 2 kHz ±2 % |
| Multi-fiber ID | 12 fibers |
| Autotest | Compatible with KI Autotest power meter port & matching λ |
| Power | 2 x AAA (LR-03) Alkaline |
| Battery life | Laser/LED source: 40/35 hours (typical) in Autotest |
| Auto off | Selectable |
| Case | Polycarbonate with captive dust cap, 2.5-meter drop tested |
| Size | 124 mm x 81 mm x 25 mm |
| Unit weight | 0.15 kg |
| Shipping weight | 0.3 kg |
| Operating / storage temperature | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95% |
| Warranty | 3 years |
| Country of Origin | Australia |
Common Questions About the Tempo T9822A Pocket Fiber Optic Laser Test Source
What is the Tempo T9822A Pocket Fiber Optic Laser Test Source used for?
The Tempo T9822A is used as an optical light source for testing power and loss on single mode fiber optic systems at 1310 nm and 1550 nm.
Who is the T9822A designed for?
The T9822A is designed for fiber optic technicians, telecommunications contractors, and network professionals performing installation, maintenance, and loss testing on single mode fiber networks.
What features does the T9822A provide for fiber testing?
The T9822A provides stable 1310 nm and 1550 nm laser output, adjustable output power, tone generation, Multi Fiber ID for up to 12 fibers, and compatibility with KI Autotest power meters.
At a Glance
• 1310 nm and 1550 nm laser source for single mode fiber testing
• Adjustable output power over a 3 dB range
• Tone generator with Multi Fiber ID for up to 12 fibers
• Rugged pocket size design with interchangeable connectors
