TEMPO | EML150 Electronic Marker Locator | #EML150
TEMPO COMMUNICATIONS | PART #EML150

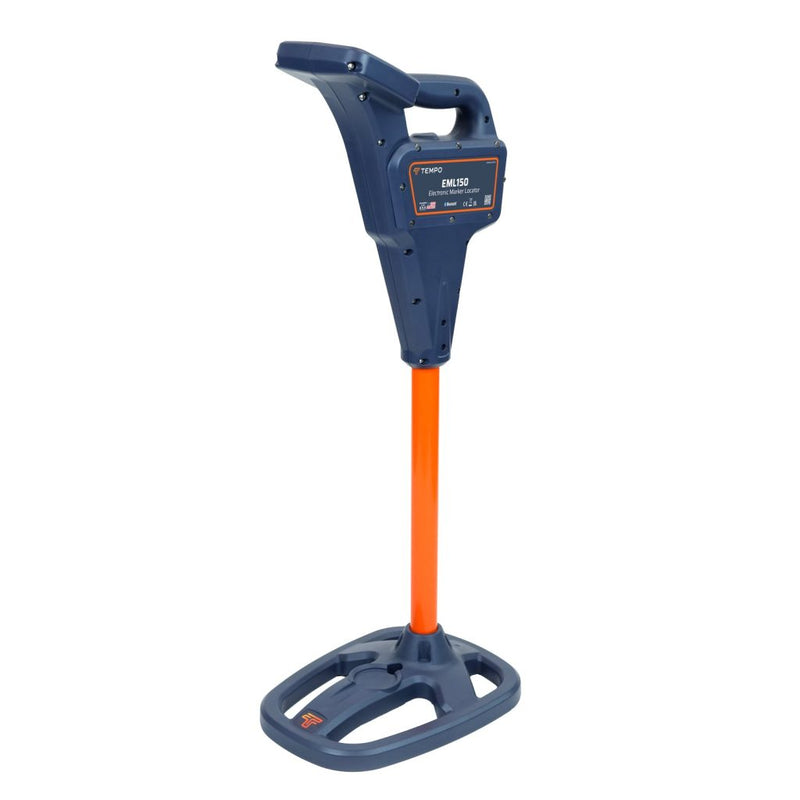

EML150 Electronic Marker Locator
DESCRIPTION
Precision RFID Locating with Built-In Intelligence
Locate, identify, map, and document buried utility markers with the Tempo EML150 Professional-Grade Electronic Marker Locator.
Within Locator Link, users can:
- Capture GPS coordinates
- Connect to external GNSS receivers for high-accuracy location data
- View and organize marker locations
- Add photos and field notes
- Export location data for use with GIS and asset-management systems.
This connected workflow helps turn a marker locate into a usable digital record—without adding another clipboard to the truck.
Download the Locator Link app here:
Google Play Store: Locator Link App – Play Store
iOS App Store: Locator Link App – App Store
OVERVIEW
The Next Evolution of Electronic Marker Locating The EML150 is a professional-grade electronic marker locator built for contractors, utility technicians, telecommunications professionals, municipalities, and infrastructure teams that need more than a basic marker locator. It provides a connected solution for locating, mapping, and documenting buried electronic markers, combining nine-frequency marker detection with Scan Mode, GPS-enabled marker records through Locator Link, external GNSS compatibility, and app-delivered software updates.
Designed for everyday field use, the EML150 features an easy-to-read color LCD screen, a replaceable rechargeable battery, and convenient USB-C charging with charger included.
Key Features
- Detects nine industry-standard marker frequencies
- Scan Mode simultaneously searches and identifies all enabled marker types
- Pin feature records GPS coordinates of marker locations
- Compatible with external GNSS receivers for high-accuracy location data
- Syncs marker location records to the Locator Link Mobile App
- Add photos and field notes to marker records in Locator Link before exporting to GIS
- App-delivered software updates
- Color LCD display
- Rechargeable battery
- USB-C charging
The EML150 gives utility professionals one connected tool for finding buried electronic markers and documenting exactly where they were found.
Locator Link App Features Map and Record Marker Locations Connect the EML150 to the Locator Link Mobile App to enable the Pin feature. Pinning a marker records its GPS coordinates and creates a marker location record in the EML150 that is immediately synced to Locator Link. Connect Locator Link to a compatible external GNSS receiver for high-accuracy location data.
Organize and Review Marker Records Marker records can be: Viewed in List or Map View Filtered by marker type or date Imported from an EML locator or from Locator Link on another mobile device Supplemented with notes and photos Export Marker Data Export saved marker records for sharing, documentation, or integration with GIS and other asset-management systems: File Format and Content KMZ: Marker data, coordinates, notes, and photos CSV: Marker data, coordinates, and notes JSON: Marker data, coordinates, and notes
Software Updates Locator Link provides software updates for the EML150, allowing software improvements and updates to be installed without replacing the locator.
SPECIFICATIONS
| Specification | EML150 |
|---|---|
| Electrical | Rechargeable Battery |
| Battery Life | 10 hours typical |
| Charging | USB-C; charger included |
| Operating Temperature | -4° to 122°F (-20°C to 50°C) |
| Storage Temperature | -40° to 158°F (-40°C to 70°C)* |
| Ingress Protection | IP65** |
| Length | 12.95 in (329 mm) |
| Width | 9.48 in (241 mm) |
| Height | 30.55 in (776 mm) |
| Weight | 5.05 lb (2.28 kg) |
* Does not pertain to battery storage temperature limitations. See Instruction Manual for details.
** IP65 antenna housing / IP55 upper chassis. Independently tested to IEC 60529 standards for resistance to dust and water exposure.
| Application | Color | Frequency |
|---|---|---|
| Non-Potable Water | Purple | 66.4 kHz |
| Cable TV | Orange/Black | 77.0 kHz |
| Gas | Yellow | 83.0 kHz |
| Fiber Optic | Yellow/Black | 92.0 kHz |
| Telephone | Orange | 101.4 kHz |
| Santary | Green | 121.6 kHz |
| Euro Power* | Blue/Red | 134.0 kHz |
| Water | Blue | 145.7 kHz |
| Power* | Red | 169.8 kHz |
* 134 kHz Europower is only enabled in EU Mode, while 169.8 kHz Power is only enabled when EU Mode is off.
Passive Marker Detection Range
OmniMarker II / OmniMarker-ID* 5 ft (1.5 m)
Spike Marker / Spike Marker-ID* 3.3 ft (1 m)
*The EML150 detects ID markers but does not read or write ID marker data like the EML250-ID.
DOCUMENTS
Common Questions About the Tempo EML150 Electronic Marker Locator
What is the Tempo EML150 Electronic Marker Locator used for?
The Tempo EML150 is a professional-grade electronic marker locator designed to locate, identify, map, and document buried utility markers. It detects nine industry-standard marker frequencies for telecommunications, utility maintenance, underground infrastructure, and municipal applications.
Can the Tempo EML150 locate multiple types of buried utility markers?
Yes. The EML150 detects nine industry-standard electronic marker frequencies and features a Scan Mode that simultaneously searches all enabled marker types. When a marker is detected, the locator automatically identifies its type.
Does the Tempo EML150 support GPS mapping and digital documentation?
Yes. The EML150 connects to Tempo's Locator Link Mobile App, allowing technicians to record GPS coordinates, map marker locations, add photos and field notes, and export records in KMZ, CSV, or JSON formats. It also supports compatible external GNSS receivers for high-accuracy location data.
At a Glance
• Professional electronic marker locator for buried utilities and infrastructure
• Detects nine industry-standard marker frequencies with automatic identification
• Scan Mode simultaneously searches all enabled marker types
• Pin feature records GPS coordinates and syncs locations to the Locator Link Mobile App
• Supports external GNSS receivers, field notes, photos, and GIS-compatible exports
• Color LCD display, rechargeable battery with up to 10 hours of typical use, and USB-C charging
