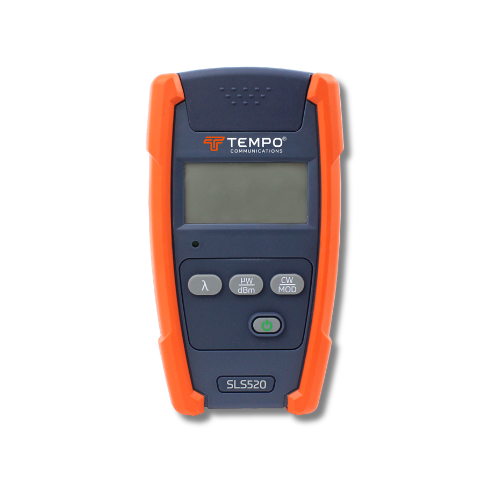

TEMPO | Dual Laser Source (1310 & 1550nm) | #SLS520
TEMPO COMMUNICATIONS | PART #SLS520
Dual Laser Source (1310 & 1550nm)
DESCRIPTION
Tempo Communications rugged, adaptable and stable fiber optic sources (SLS520, SLS525, SLS530, SLS535, SLS536) are available in dual and triple wavelength lasers and a dual wavelength LED. Accurate insertion loss measurements are possible when used in conjunction with the Tempo Communications optical power meters. When placing tones on the fiber the Tempo Communications optical power meter will quickly identify the fiber.
The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks. See Models tab for options as well as Adapters and Accessories.
OVERVIEW
• Dual and Triple Wavelength Laser Sources at 1310, 1490, 1550, 1625 & 1650nm
• Dual Wavelength LED Source at 850nm & 1300nm
• Accurate Insertion Loss Measurements
• Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
• SC, LC, FC and ST Interchangeable Bulkheads
• Ruggedized Package, IP54 compliant
• Compatible with Singlemode and Multimode Networks
• Auto Off or Continuous On Operation
• Battery or 120/240VAC Operation
TC OPM SLS Data Sheet55501380 REV2 OPM SLS IM
Declaration of Conformity OPM5 XX OPM2 XX and SLS5 XX 002
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| Wavelength | SLS520 (1310/1550); SLS525 (850/1300); SLS530 (1310/1490/1550); SLS535 (1310/1550/1625); SLS536 (1310/1550/1650) |
| Range of Use | Singlemode (SLS520, 530, 535, 536); Multimode (SLS525) |
| Emitter Type | SLS520, 530, 535, 536 (FP); SLS525 (LED) |
| Spectral Width | SLS520, 530, 535, 536: =/less than 5nm; SLS525: +/-40nm |
| Output Power | SLS520, 530, 535, 536: =/greater than 0dBm/-1dBm; SLS525: -20dBm/-21dBm |
| MOD Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | >20 Hours (Typical) |
| Connector Type | SC/PC (Interchangeable LC,ST, FC) |
| Power Supply | 9V 1000mAh Lithium Battery/ 9V AC adapter |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -20ºC to 70ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
| Weight | 0.71 lbs (300g) |
| Dimensions | 6.1 × 3.5 × 1.3” (155 × 89 × 33mm) |
| IP Rating | IP54 |
| Vibration | 5Hz to 150Hz, Amplitude = 0.15mm |
| Shock | Peak acceleration 25g at a pulse duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
Common Questions About the Tempo SLS520 Dual Laser Source
What is the Tempo SLS520 Dual Laser Source used for?
The Tempo SLS520 is used as a stabilized optical light source for testing singlemode fiber optic networks at 1310 nm and 1550 nm, including insertion loss measurements and fiber identification.
What wavelengths does the Tempo SLS520 support?
The SLS520 provides dual laser wavelengths of 1310 nm and 1550 nm for testing and troubleshooting singlemode fiber optic networks.
Can the SLS520 be used for fiber identification?
Yes. The SLS520 supports 270 Hz, 1 kHz, and 2 kHz modulation frequencies that can be detected by a compatible optical power meter to help identify and trace individual fibers.
At a Glance
• Dual 1310 nm and 1550 nm laser source for singlemode fiber
• Supports insertion loss measurements and fiber identification
• 270 Hz, 1 kHz, and 2 kHz modulation frequencies
• IP54 rated with interchangeable SC, LC, ST, and FC bulkheads
