TEMPO | Drop Fiber Enclosure Kit, Two Port Stub With BH | #DFE101-BH-GY
TEMPO COMMUNICATIONS | PART #DFE101-BH
Drop Fiber Enclosure Kit, Two Port Stub With Two SC/APC Bulkheads
DESCRIPTION
**PLEASE NOTE, ENCLOSURE KIT IS GRAY**
The Drop Fiber Enclosure Kit is used to facilitate repairs of fiber optic cables. Common fiber sizes of 8.1mm, 5.4mm and 5.1mm rectangular cables, and 3.0mm and 5.1mm round cables are accommodated with the supplied sealing gaskets
Both fusion splices (total of 24) and two mechanical splices are securely positioned within the IP68-rated, GR771 compliant enclosure. The enclosure can be permanently buried or mounted onto the side of a building.
Two DFE enclosures are typically used to repair a drop fiber as there is typically not enough slack cable to reconnect the fibers.
The DFE provides a splice point location within the network build as well as a demarcation point at the premises.

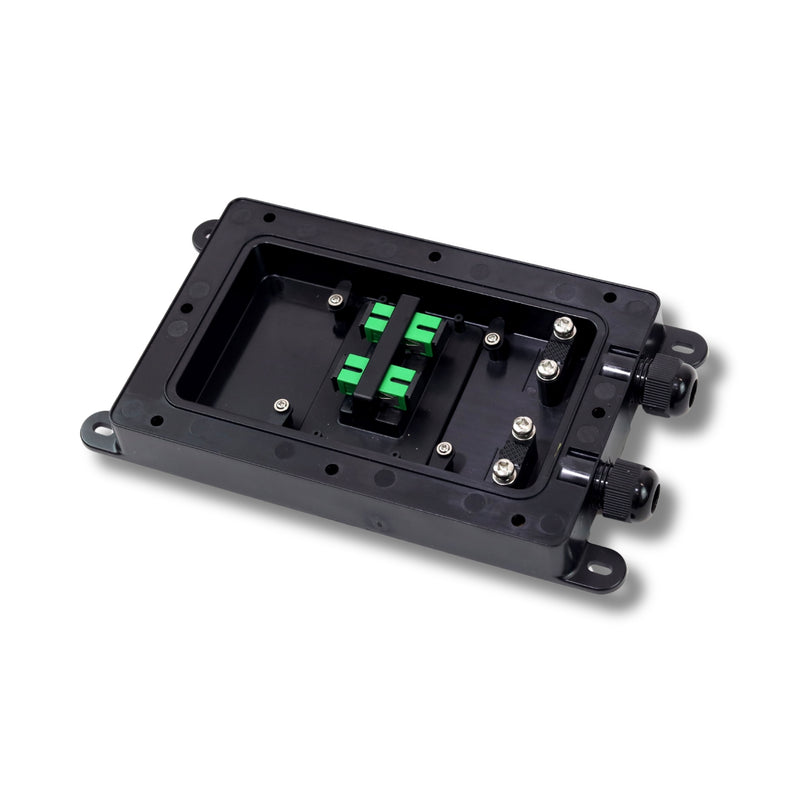

The Bulkhead versions (-BH) have two integrated SC/APC bulkheads that replace the splice tray. This allows for the technician to route terminated cables and provide a convenient bulkhead for connectivity.
Five versions of the DFE are available:
- DFE100: Two Port In-Line
- DFE101: Two Port Stub
- DFE104: Four Port
- DFE101-BH: Two Port Stub with Two Integrated SC/APC Bulkheads
- DFE104-BH: Four Port with Two Integrated SC/APC Bulkheads
OVERVIEW
- IP68 rated for buried applications
- GR771 compliant
- Accommodates up to 26 splices
- Individual gaskets for 8.1, 5.4 and 5.1mm rectangular and 3.0 mm and 5.1 round cables
- Fast assembly with common tools
- Bulkhead versions provide two integrated SC/APC bulkheads
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| IP Rating | IP68 |
| Compliance | Telcordia GR771 |
| Cables Sizes | 8.1mm, 5.4mm, 5.1mm rectangular, 3mm and 5.1mm round |
| Mechanical Splice Locations | 2 |
| Fusion Splice Locations | 24 |
| Size | 8.85 x 4.72 x 1.34 (225 x 120 x 34mm) |
| Weight | 0.66lb (0.3kg); 0.8lb (0.36kg) (DFE104) |
| Material | Polycarbonate (UV resistant) |
| Color | Black |
| Operating Temperature | -40 to +80C |
| Storage Temperature | -40 to +80C |
| SC/APC Bulkheads | 2 (-BH versions) |
Common Questions About the Drop Fiber Enclosure Kit, Two Port Stub With Two SC/APC Bulkheads
What is the Drop Fiber Enclosure Kit used for?
It is used to repair and protect drop fiber connections, providing a secure splice or bulkhead termination point in fiber optic access networks.
Who is this enclosure kit designed for?
This kit is designed for fiber technicians and installers working on drop fiber repairs, network builds, and premises demarcation points.
What makes the DFE101-BH different from standard splice enclosures?
This version includes two integrated SC/APC bulkheads, allowing technicians to route terminated cables and connect directly without using a splice tray.
Can this enclosure be buried or mounted on a building?
Yes. The enclosure is IP68 rated and GR771 compliant, making it suitable for permanent burial or exterior building mounting.
What cable sizes and splice types are supported?
It supports common rectangular and round drop fiber sizes and accommodates up to 24 fusion splices and 2 mechanical splices.
At a Glance
• Drop fiber enclosure for repair and demarcation applications
• Two port stub design with integrated SC/APC bulkheads
• IP68 rated and Telcordia GR771 compliant
• Supports multiple rectangular and round drop cable sizes
• Accommodates up to 26 total splices
• Suitable for buried or wall mounted installations
