TEMPO | Advanced Test Kit SM MM | #TK076
TEMPO COMMUNICATIONS | PART #TK076
Advanced Test Kit SM MM
DESCRIPTION
A fiber testing kit with an optical power meter and light source, effective for low to medium test volume on single mode & multimode systems.
Typical testing applications
- Optical power at 25 calibrated wavelengths, -60 to +15 dBm range.
- Optical loss on SM fiber 1310 / 1550 nm, 60 dB range.
- Optical loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5um) range, EF compliant.
- Loss testing automation & reporting with AutoTest and KITS™ software.
- Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 50 dB range.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
SC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts PC polish.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
OVERVIEW

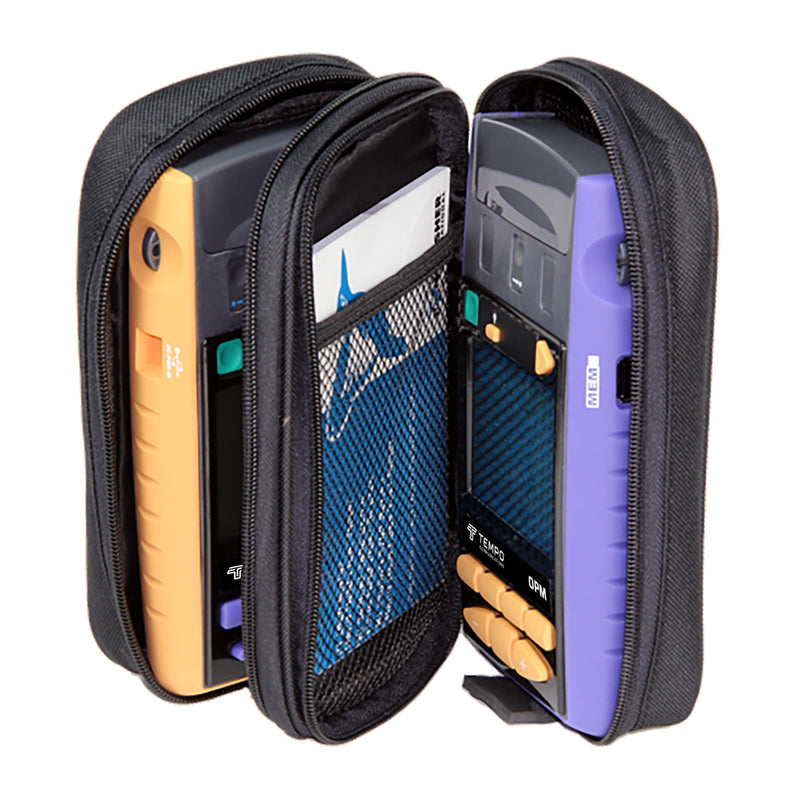

Includes:
- LED & LASER QUAD OPTICAL TEST SOURCE T2824
- HANDHELD OPTICAL POWER METER T2600
- PADDED CANVAS CARRY POUCH OPT149
SPECIFICATIONS
| Attribute Name | Attribute Value |
|---|---|
| HANDHELD OPTICAL POWER METER T2600 | |
| Detector type | InGaAs |
| Calibration accuracy | 1% (0.06 dB) |
| Response wavelength | 600 ~ 1700 nm |
| Calibration wavelengths | 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm |
| Power range | +10 ~ -60 dBm (for 780 ~ 980 nm) / +10 ~ -70 dBm (for 1270 ~ 1650 nm) |
| Mid-range linearity | 0.04 dB (typical) |
| Total uncertainty | 0.3 dB (max) |
| Wavelength sensitivity (± 30 nm) | 0.03 dB (typical) |
| ID tone detection & Autotest sensitivity | Up to -50 dBm |
Common Questions About the Advanced Test Kit SM MM
What is the Advanced Test Kit SM MM used for?
It is used for optical power, loss, continuity, and tone testing on single mode and multimode fiber networks with low to medium test volume.
Who is this test kit designed for?
This kit is designed for fiber technicians and installers who need accurate testing, automated loss reporting, and support for both SM and MM fiber systems.
What types of fiber testing does this kit support?
It supports optical power measurements across multiple calibrated wavelengths, loss testing on SM and MM fiber, and continuity and tone identification using Multi Fiber ID.
What makes this kit more advanced than basic fiber test kits?
It includes automated loss testing and reporting with AutoTest and KITS software, wide wavelength support, and long battery life for extended field use.
At a Glance
• Advanced fiber test kit for single mode and multimode networks
• Measures optical power, loss, continuity, and tone
• Supports automated loss testing with AutoTest and KITS
• Wide calibrated wavelength range for accurate measurements
• Includes optical test source, power meter, and carry pouch
• Designed for low to medium volume fiber testing
