TEMPO | Tracker II-Cable Locator | #501-TRACK
TEMPO COMMUNICATIONS | PART #501
Tracker II-Cable Locator
DESCRIPTION
The 501 Tracker II Cable Locator traces over distances to 4,000 feet (1.2 km) and depths to 7 feet (2.2 m). Now you can quickly trace the path and determine the depth of buried, underground wires; cables, and metallic pipes or conduit and find the ends of a cut cable without having to deactivate the systems. The lightweight receiver provides both audible and visual indications of signal strength for accurate identification
The 501 Tracker II Cable locator offers three methods of connection to fit every location job.
-
Direct connection for maximum signal
-
Inductive coupling for “live” cable
-
Internal inductive antenna for underground location of buried and inaccessible cables.
OVERVIEW
- Trace the path and determine the depth of buried conductors.
- Use on active or dead systems.
- Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy.
- The lightweight receiver provides both audible and visual indications of signal strength for accurate identification.
- The transmitter offers three methods of connection: direct, inductive coupler, or inductive antenna.
- Inductive coupler clamps around the wire or pipe for use on active lines, or where isolating the line is not an option.
- Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor.
- Underground wire locator traces over distances to 4,000 feet (1.2 km) and depths to 7 feet (2.2 m).
- Adjustable sensitivity and transmitter power.

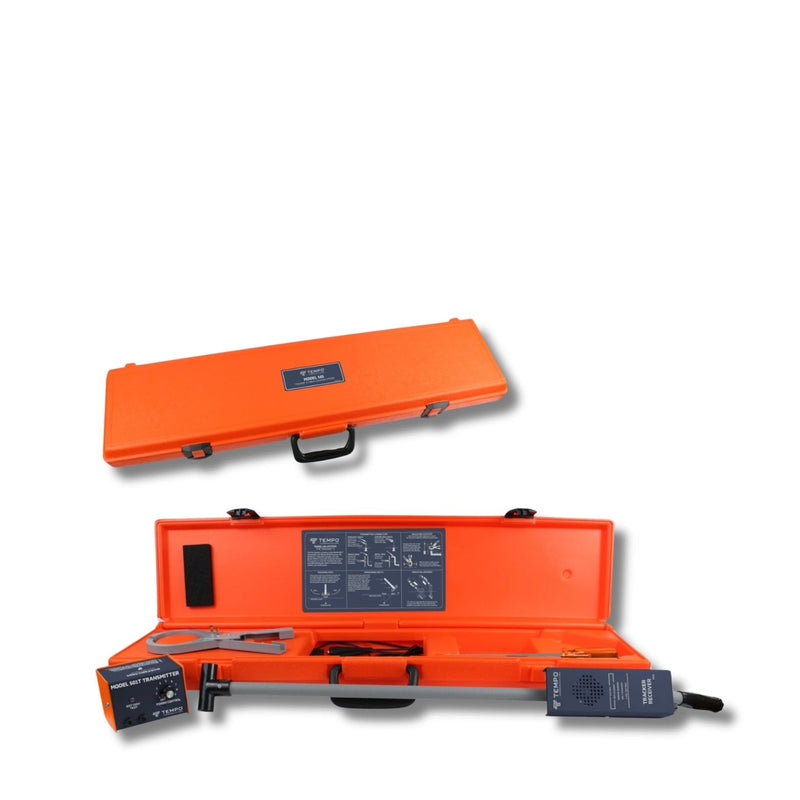

- Includes transmitter assembly, receiver assembly, inductive coupler (clamp), inductive antenna (built-in), two 8 foot (2.4 m) test leads with heavy-duty alligator clips, and a durable polyethylene case.
- Battery-operated (8 - AA and 1 - 9V NOT included).
