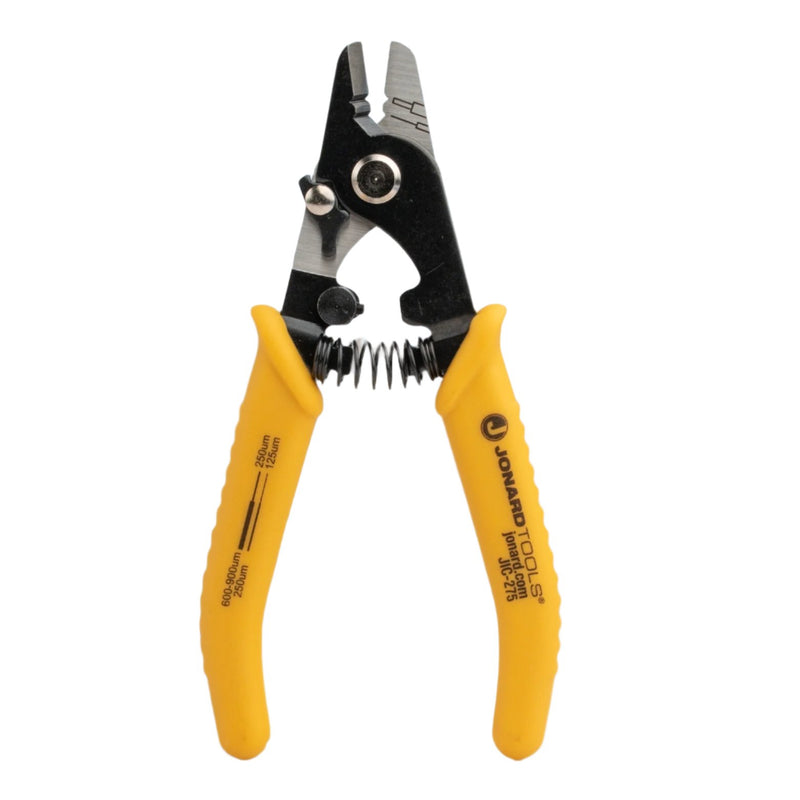

JONARD | Fiber Optic Stripper, Two Hole | #JIC-275
JONARD TOOLS | PART #JIC-275
Fiber Optic Stripper, Two Hole
DESCRIPTION
The Jonard Tools Two Hole Fiber Optic Stripper performs the most common fiber stripping functions. This fiber optic stripper features the following
- Strips the 600-900 micron buffer coating, and 250 micron coating to expose the 125 micron glass fiber

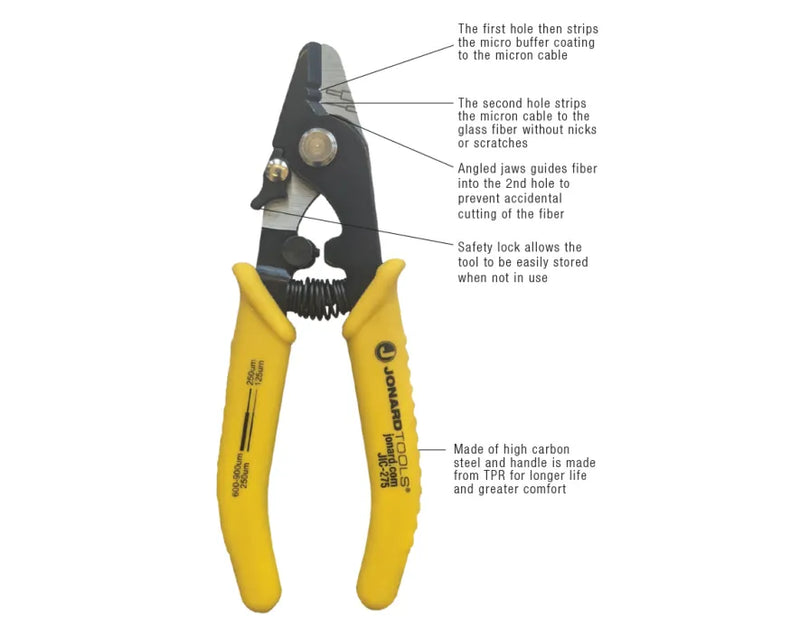

- The first hole then strips the micro buffer coating to the micron cable
- The second hole strips the micron cable to the glass fiber without nicks or scratches
- Angled jaw guides fiber into the 2nd hole to prevent accidental cutting of the fiber
- Safety lock allows the tool to be easily stored when not in use
- Tool is made of strong high carbon steel and the handle is made of TPR (thermoplastic rubber) for high durability and greater comfort
Strip Diameter: 250 micron, 600-900 micron
DOCUMENTS
JIC-275 Fiber Optic Stripper Datasheet
SPECIFICATIONS
| Cut Type |
Strip |
|---|---|
| Cable Type |
Jacket, Buffer, Fiber Optic |
| Strip Diameter |
250 micron, 600-900 micron |
| Handle Grip Material |
TPR (Thermoplastic Rubber) |
| Handle Color |
Yellow |
| Length | 5(15.1765cm) |
| Weight | 0.22 lb (98.972 g) |
| UPC # | 810053350188 |
Common Questions About the Fiber Optic Stripper
What is the Fiber Optic Stripper used for?
The Fiber Optic Stripper is used to strip 600 to 900 micron buffer coatings and 250 micron coatings to expose the 125 micron glass fiber during fiber preparation.
Who is this fiber optic stripper designed for?
This tool is designed for fiber optic technicians, telecom installers, and network professionals performing fiber termination and splicing preparation.
What makes this two hole fiber optic stripper precise and safe to use?
This stripper features angled jaws that guide the fiber into the stripping holes, allowing clean removal of buffer coatings without nicking or scratching the glass fiber.
At a Glance
• Strips 600 to 900 micron and 250 micron fiber coatings
• Two hole design for controlled, precise stripping
• Angled jaws help prevent fiber damage
• Durable construction with comfortable grip
