JONARD | SPARC Fusion Splicer, Core Alignment | #SPCO-1
JONARD TOOLS | PART #SPCO-1

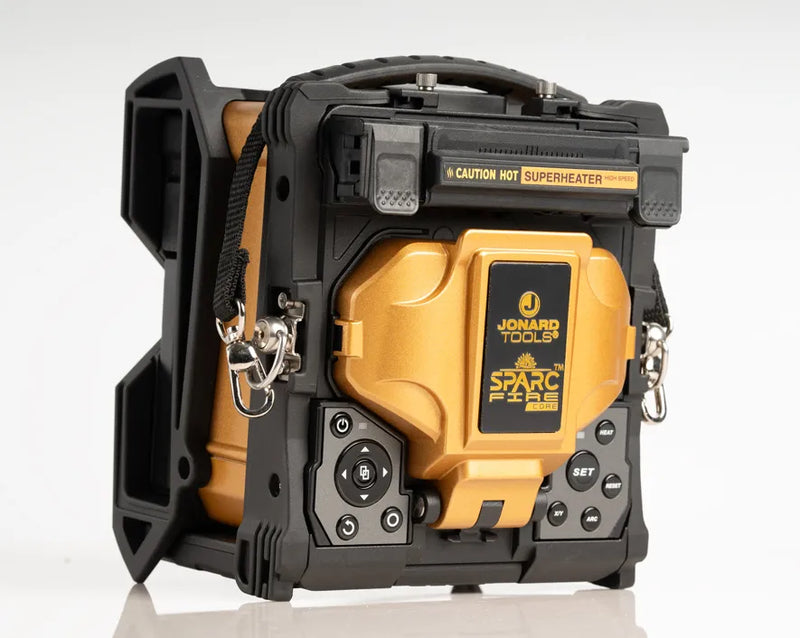

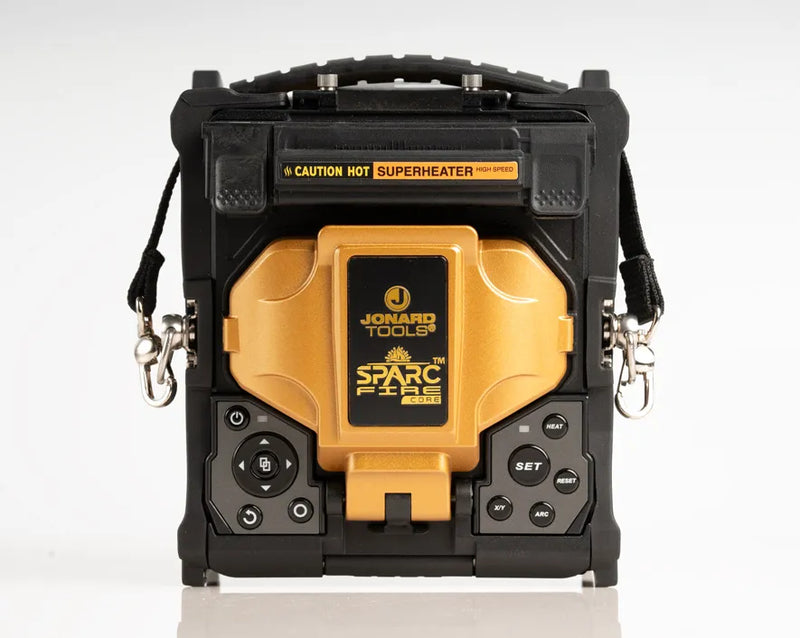

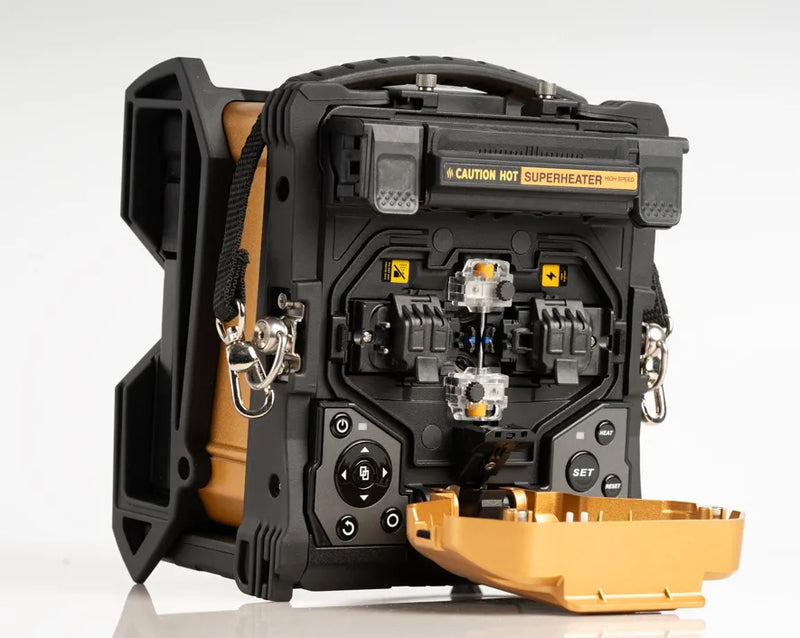

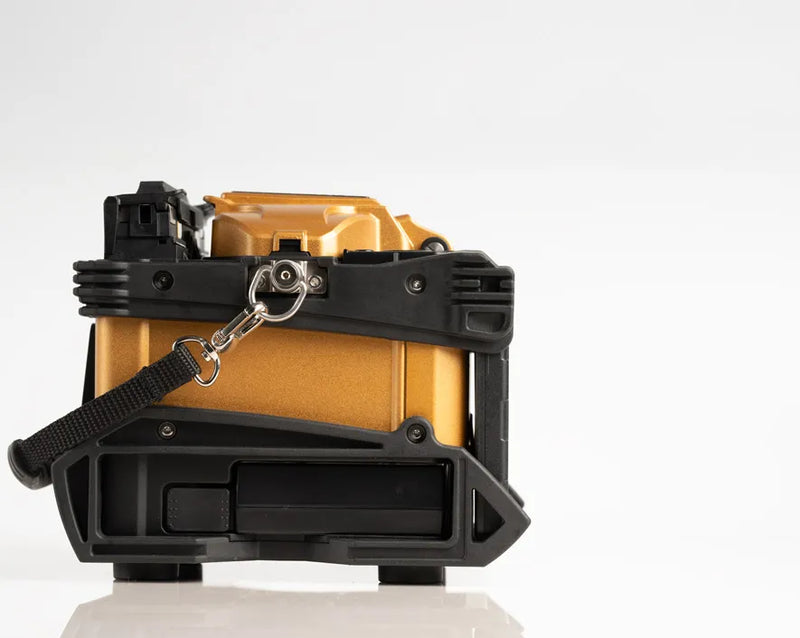

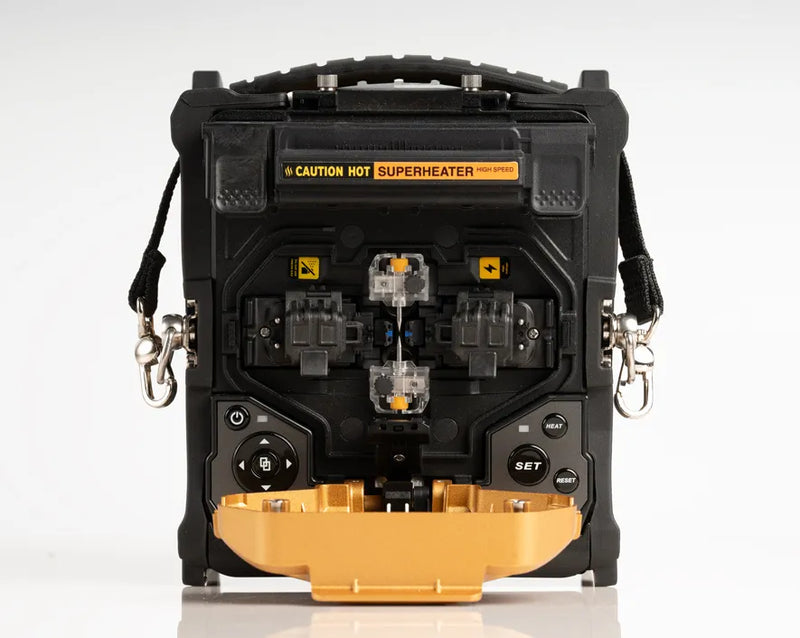

SPARC Fusion Splicer, Core Alignment
DESCRIPTION
The SPARC Core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images

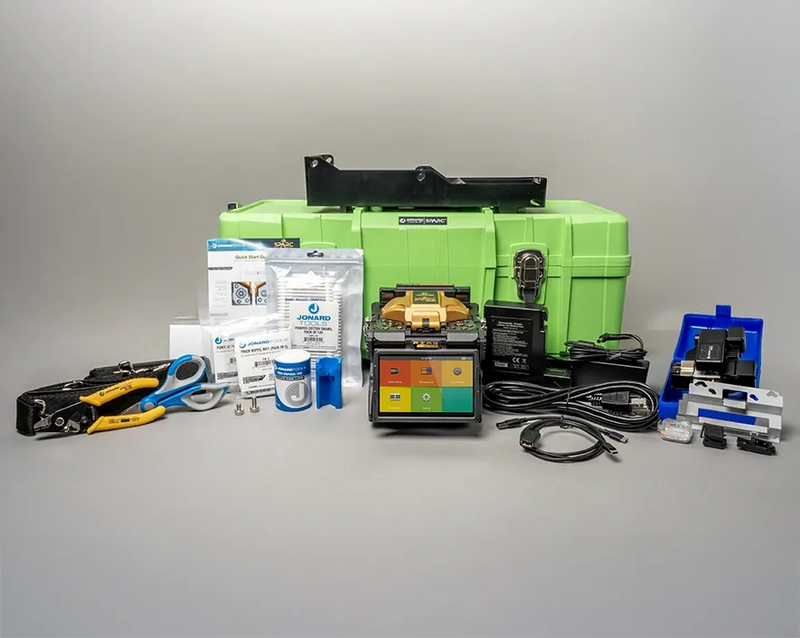

INCLUDES
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FSP-CO | SPARC FIRE CORE Fusion Splicer |
| H-2000 | SPARC Carrying Case |
| FSP-SOC | SPARC SOC Holder |
| FSP-SOCSC | SPARC SOC Heater Holder |
| FSP-ADP-65JH | SPARC AC Adapter |
| FSP-SCT | Screw-on Cooling Tray |
| FSP-E50 | SPARC Electrodes (1 Spare Set) |
| FSP-B7000 | SPARC Battery Pack |
| FSP-ADP-PC | SPARC Power Cable |
| FSP-DC | Data Transfer USB Cable |
| FSP-STP | SPARC Shoulder Strap |
| FSP-FT | Fiber Tray |
| FSP-FTP | Fiber Tray Shoulder Strap |
| FSP-SC | Splicer Set Screw |
| FC-SC | Cleaver Set Screw |
| FSP-SBB | Soft Bristle Cleaning Brush |
| FSP-FBB | Firm Bristle Cleaning Brush |
| FSP-SFH | Splicing Fiber Holder * Comes Installed |
| FSP-SHH | Heater Fiber Holder * Comes Installed |
| FH-2250A/2 | 200-250 A Magnetic Fiber Holder Set |
| FH-2250B/2 | 200-250 B Magnetic Fiber Holder Set |
| FSP-B9000 | SPARC Ribbon Battery Pack |
| FSP-CCT | SPARC Clip-On Cooling Tray |
| FSP-SFH | Splicing Fiber Holder * Comes Installed |
| FSP-RHH | Ribbon Heater Fiber Holder * Comes Installed |
SPECIFICATIONS
| Alignment Method |
Core Alignment |
|---|---|
| Number of Fibers |
Single |
| Applicable Fibers |
SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter |
100 µm - 3 mm |
| Cladding Diameter |
80 - 150 µm |
| Cleave Length |
5 - 16 mm |
| Typical Splice Loss |
SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return Loss |
>>60 dB |
| Splice Time |
Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice Programs |
Max 128 modes |
| Automatic Calibration |
Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span |
6000 Arc Discharges |
| Heating Programs |
Max 32 modes |
| Heating Time |
Quick: 9s / Average: 13s |
| Protection Sleeve Length |
20 mm - 60 mm |
| Data Output |
USB-C |
| Splice Memory |
20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity |
7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply |
AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor |

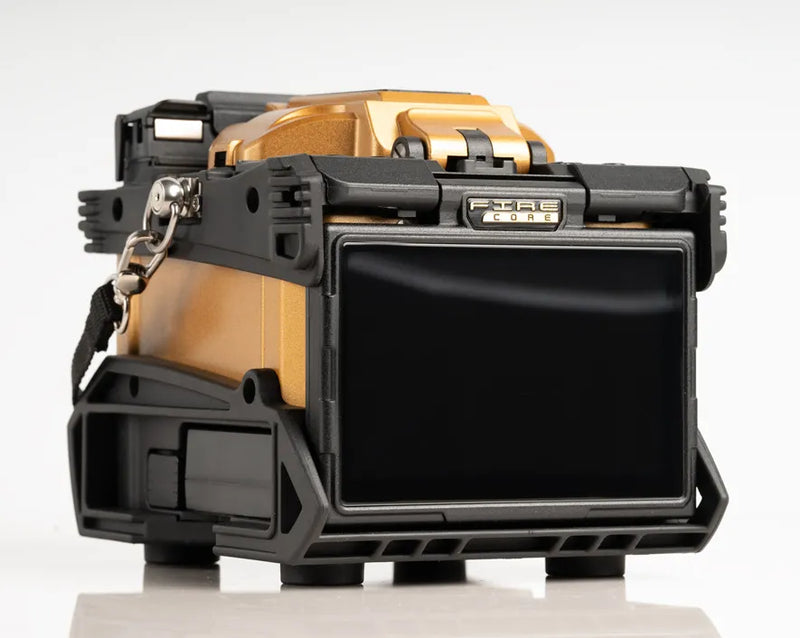

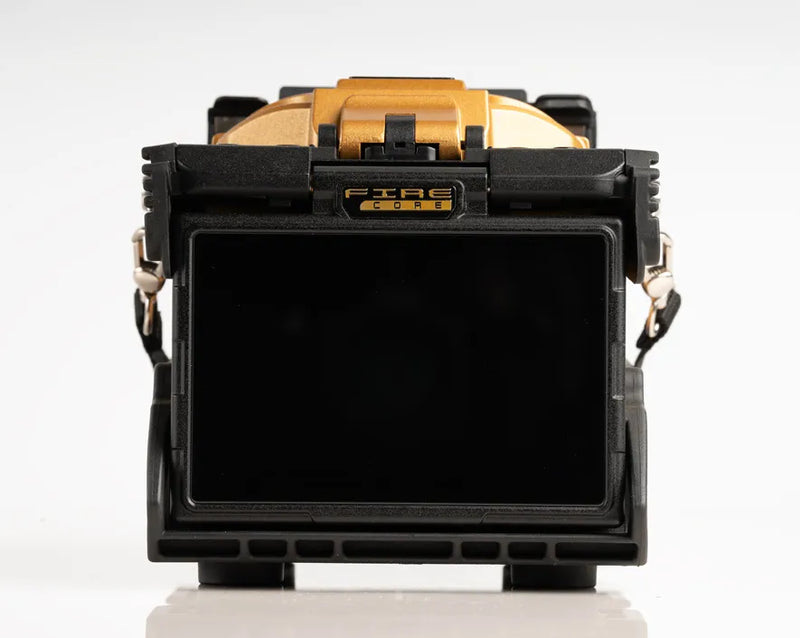

5.0" Color LCD display, Full Touch Screen |
| Magnification |
x360, x520 |
| Pull Test |
1.96 - 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437922 |
Common Questions About the SPARC Core Alignment Fusion Splicer
What is the SPARC Core Alignment Fusion Splicer used for?
This core alignment fusion splicer is used to precisely splice single fiber optic cables where extremely low splice loss and high accuracy are required.
Who should use a core alignment fusion splicer?
This splicer is designed for fiber optic technicians, contractors, and network professionals performing high performance splicing in telecom, fiber construction, and data network environments.
What makes core alignment different from clad alignment splicing?
Core alignment technology aligns fibers by their core instead of the cladding, resulting in lower splice loss and higher precision for critical fiber applications.
At a Glance
• Core alignment fusion splicer for high precision fiber work
• Fast splice and heating times for efficient field use
• Long life battery supports hundreds of splice cycles
• Designed for professional fiber optic installations
