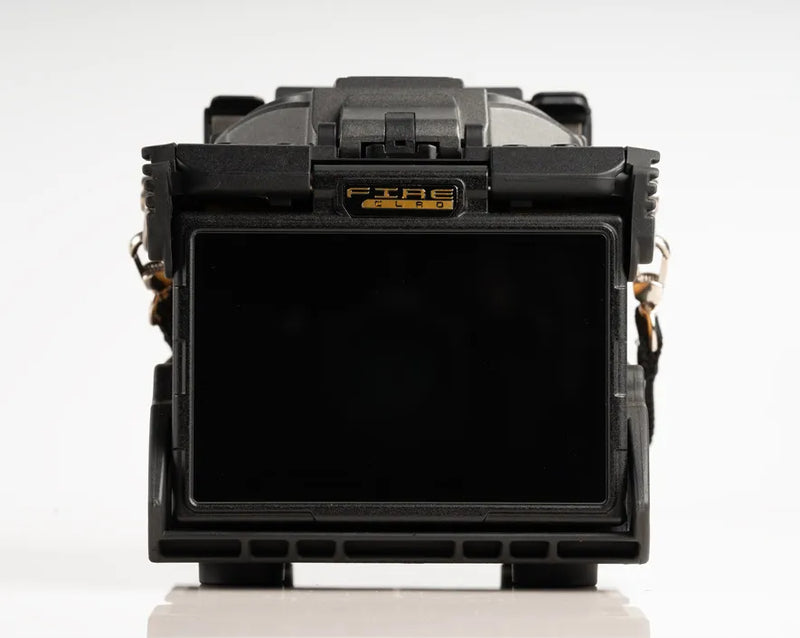

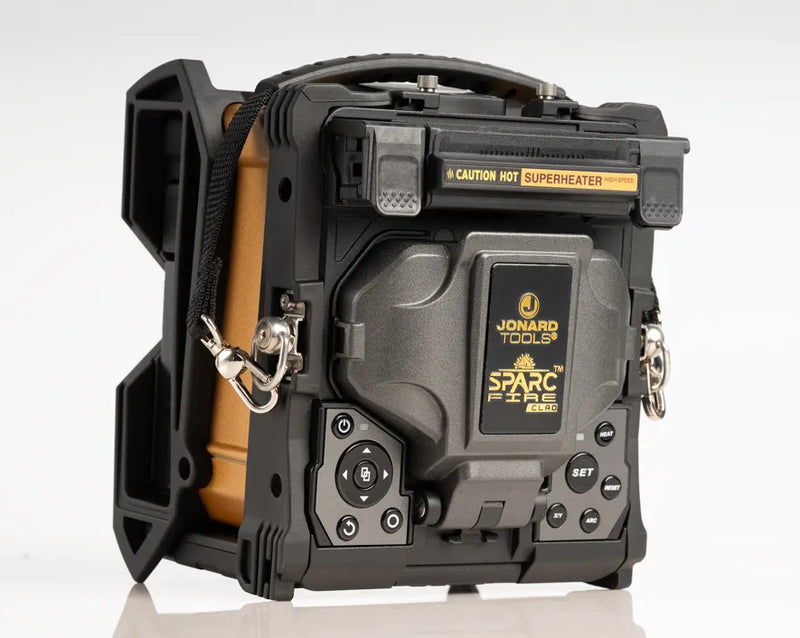

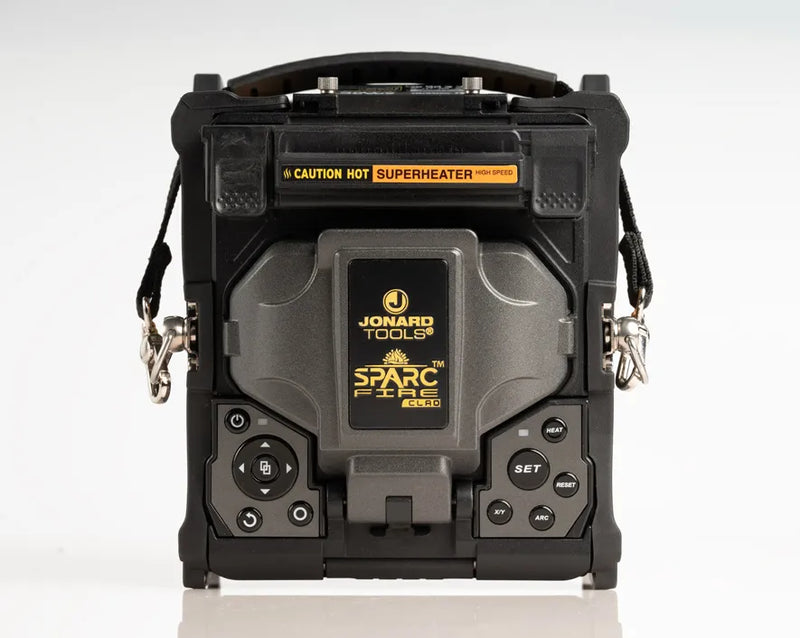

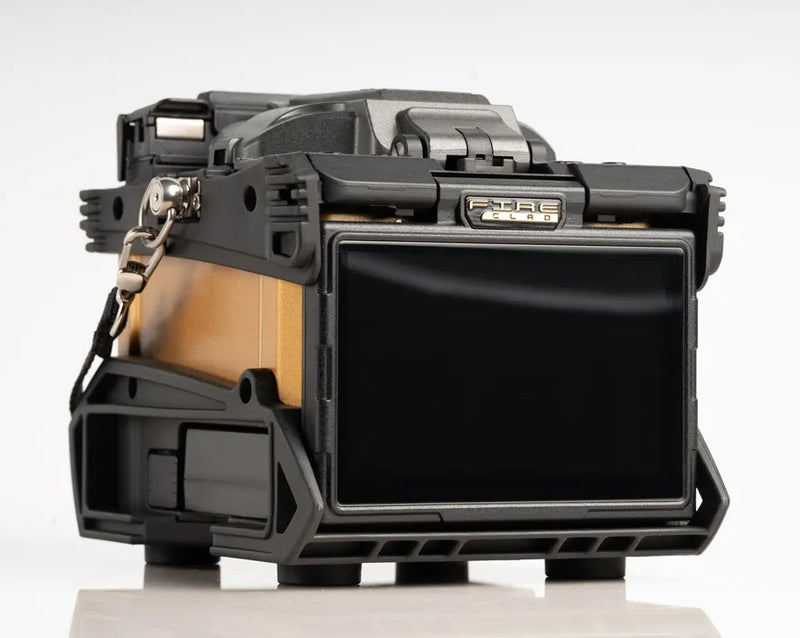

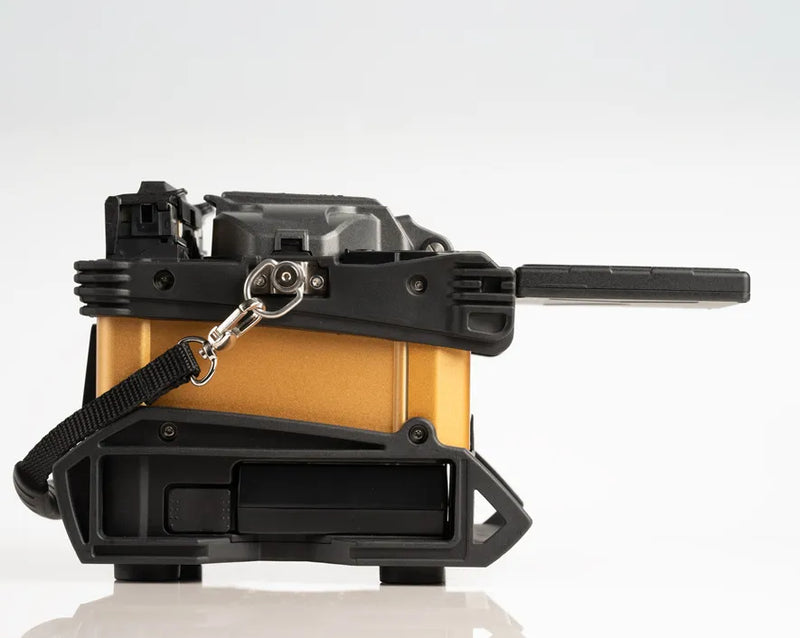

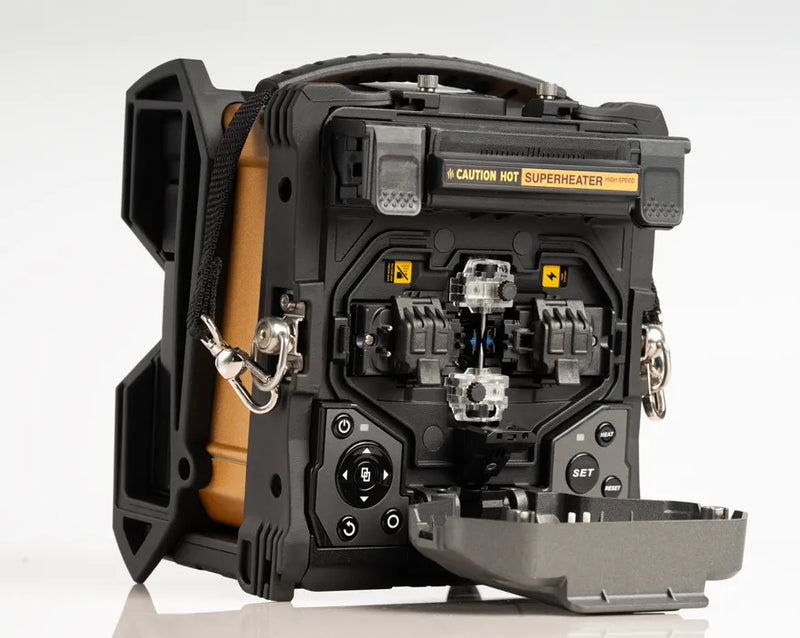

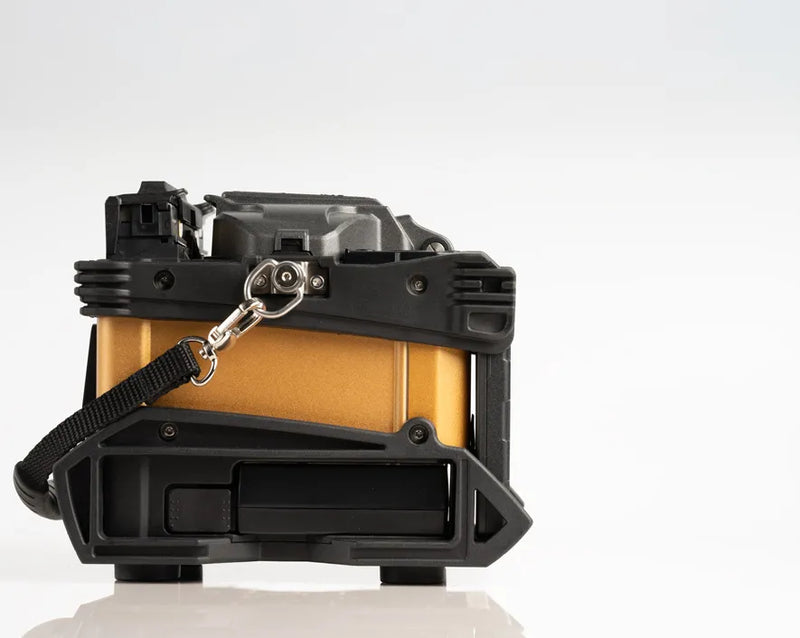

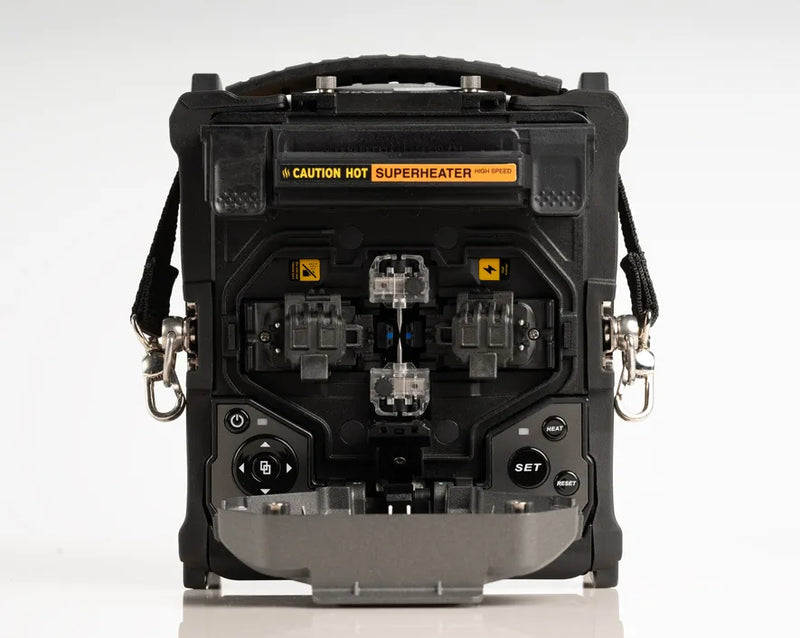

SPARC Fusion Splicer, Clad Alignment
DESCRIPTION
The SPARC Clad Alignment Fusion Splicer is an advanced Active V-Groove Cladding Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images

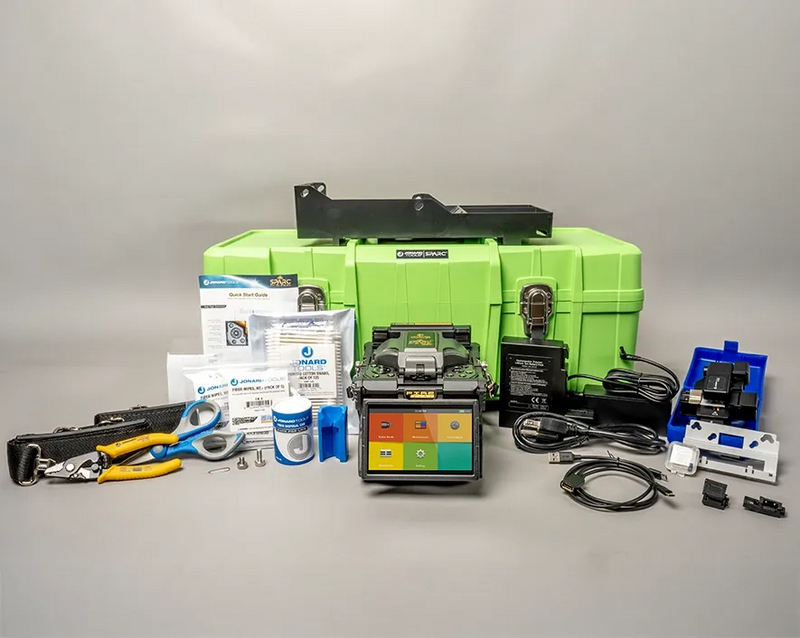

INCLUDES
| FC-800 | SPARC Blade Fiber Cleaver |
| JIC-375 | Fiber Optic Stripper, Three Hole |
| JIC-186 | Wire & Kevlar® Cutting Shears |
| PSI-15 | Quick Sleever® |
| FDC-66 | Fiber Scraps Disposal Can |
| CWP-125 | Pointed Cotton Swabs, Pack of 125 |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FW-5 | Fiber Wipes, Wet (Pack of 5) |
| FSP-CL | SPARC Fusion Splicer, Clad Alignment |
| FSP-SOC | SPARC SOC Holder |
| FSP-SOCSC | SPARC SOC Heater Holder |
| FSP-ADP-65JH | SPARC AC Adapter |
| FSP-CT | SPARC Cooling Tray |
| FSP-B7000 | SPARC Battery Pack |
| FSP-ADP-PC | SPARC Power Cable |
| FSP-E70 | SPARC Electrodes (1 Spare Set) |
| FSP-DC | Data Transfer USB Cable |
| H-2000 | SPARC Carrying Case |
| FSP-STP | SPARC Shoulder Strap |
| FSP-FT | Fiber Tray |
| FSP-FTP | Fiber Tray Shoulder Strap |
| FSP-SC | Splicer Set Screw |
| FC-SC | Cleaver Set Screw |
| FSP-SCT | Screw-on Cooling Tray |
| FSP-SBB | Soft Bristle Cleaning Brush |
| FSP-FBB | Firm Bristle Cleaning Brush |
| FSP-SFH | Splicing Fiber Holder* Comes Installed |
| FSP-SHH | Heater Fiber Holder * Comes Installed |
SPECIFICATIONS
| Alignment Method |
Active V-Groove Clad Alignment |
|---|---|
| Number of Fibers |
Single |
| Applicable Fibers |
SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter |
100µm - 3mm |
| Cladding Diameter |
80 - 150µm |
| Cleave Length |
5 - 16mm |
| Typical Splice Loss |
SM: 0.03dB / MM: 0.01 dB / DS: 0.05dB I NZDS: 0.05dB I G.657: 0.03dB |
| Return Loss |
>>60 dB |
| Splice Time |
Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec |
| Splice Programs |
Max 128 modes |
| Automatic Calibration |
Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span |
6000 Arc Discharges |
| Heating Programs |
Max 32 modes |
| Heating Time |
Quick: 9s / Average: 13s |
| Protection Sleeve Length |
20 mm - 60 mm |
| Data Output |
USB-C |
| Splice Memory |
20,000 Splice Data / 10,000 Splice Images |
| Battery Capacity |
7000mAh / Operation Cycle: 400+ cycles (Splicing + Heating) |
| Power Supply |
AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor |
5.0" Color LCD display, Full Touch Screen |
| Magnification |
x360, x520 |
| Pull Test |
1.96 - 2.25 N |
| Product Main Color | Black/Gold |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437861 |
Common Questions About the SPARC Clad Alignment Fusion Splicer
What is the SPARC Clad Alignment Fusion Splicer used for?
This fusion splicer is used to precisely splice single fiber optic cables for telecommunications, fiber construction, and network installation and maintenance work.
Who should use a clad alignment fusion splicer?
This splicer is designed for fiber optic technicians, contractors, and network professionals who need fast, accurate, and reliable fiber splicing in field or lab environments.
What makes this fusion splicer suitable for demanding job sites?
Fast splice and heating times, a rugged IP rated design, long battery life, and onboard data storage make it reliable for high volume splicing in challenging conditions.
At a Glance
• Active V groove clad alignment fusion splicer
• Fast splice time with quick heating technology
• Long life battery with hundreds of splice cycles
• Designed for professional fiber optic splicing
