RIPLEY MILLER | DDT-596/11 Dual Drop Cable Trimmer | #38590

RIPLEY MILLER | PART #38590

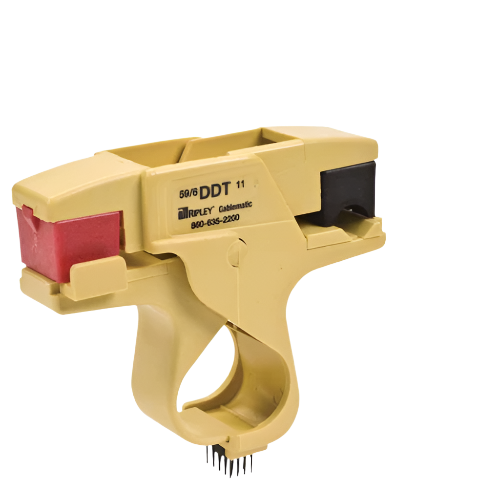

DDT-596/11 Dual Drop Cable Trimmer

OVERVIEW

• Combination tool allows cable preparation of 59, 6, 7, 9, N48 & 11 coax cable (std, tri & quad) without the need to change out color-coded blade cassette.
• DDT-UTP model prepares CAT5, CAT5E, CAT6 & larger 10G UTP/STP type cables in one combination tool
• One-step preparation exposes center conductor by 5/16″ (7.6 mm) & removes 1/4″ (6.35 mm) of jacket
• Superior quality tool steel blade cassettes will perform 3500+ preparations under normal use
• Built-in polymer braid brush & strip stop

SPECIFICATIONS

• Material: Impact-Resistant Polymer
• Patent Number(s): U.S. Patent No. 5,713,132
• Length: 3.63″ (92.2 mm)
• Weight: 2 oz (57 g)

Common Questions About the Ripley Miller DDT 596 11 Dual Drop Cable Trimmer

What is the Ripley Miller DDT 596 11 used for?
The Ripley Miller DDT 596 11 is used to prepare coaxial drop cable by trimming the jacket and exposing the center conductor in one step without changing blade cassettes.

Who is this drop cable trimmer designed for?
This tool is designed for cable technicians, broadband installers, and CATV professionals working with multiple coax cable sizes and UTP or STP data cables in the field.

What makes the DDT 596 11 different from other drop cable trimmers?
Unlike single size trimmers, the DDT 596 11 prepares multiple coax cable sizes including 59, 6, 7, 9, N48, and 11 without blade changes and includes a built in braid brush and strip stop for consistent results.

At a Glance

• Dual drop cable trimmer for multiple coax sizes
• One step cable preparation without blade changes
• Exposes center conductor and removes jacket precisely
• Compatible with standard, tri, and quad shield coax
• Built in polymer braid brush and strip stop
• Lightweight, impact resistant polymer body
