RIPLEY CABLEMATIC | CST 500-R Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter | #31950

RIPLEY CABLEMATIC | PART #31950

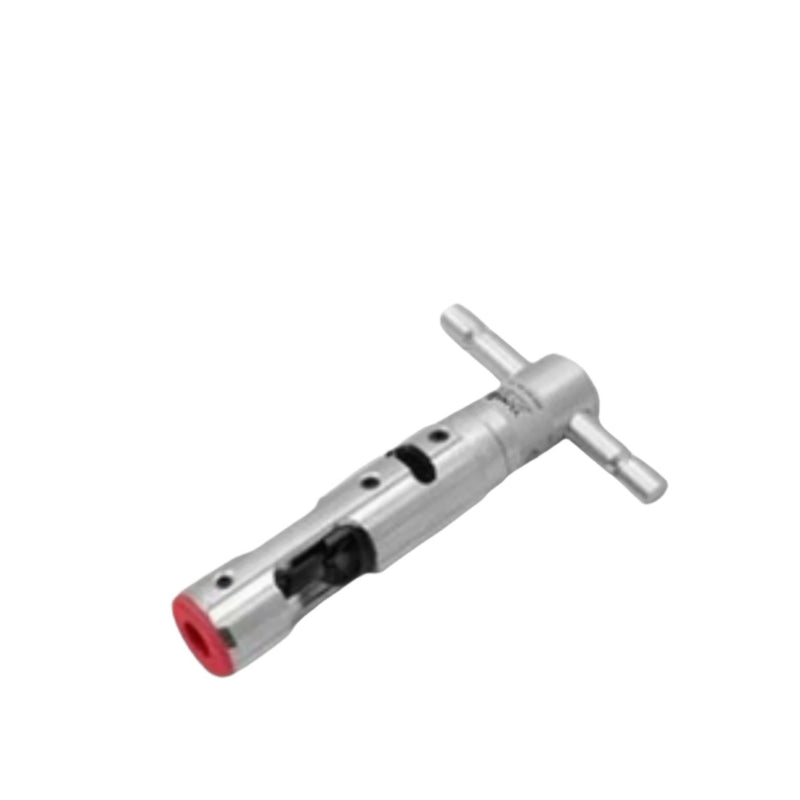

CST 500-R Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter

DESCRIPTION

The Cablematic CST 500-R is a Standard Coring Strip Tool. It cores and strips in one fast and precise manual or drilling operation. Heat-treated sheath-cutting blade produces a smooth, beveled edge and can be replaced without the expense of replacing the entire coring bit. The tool features rugged, durable, all-metal construction and spiral-fluted, heat-treated steel coring bit

OVERVIEW

• Combination tool quickly strips the sheath & cores the dielectric on cables in one precise operation
• Durable, all-metal construction with color-coded guide sleeves provide easy identification
• Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced
• Strip stops available for strip lengths of 0.5″ to 2″ (12.7 to 50.8 mm)
• Standard models feature a “T” handle with a built-in 3/8″ drill adapter & ratchet models feature a ratchet “T” handle with a separate 3/8″ drill adapter for manual or drill operations

SPECIFICATIONS

• Cable Size: 500 kcmil

• Length: 6.88 in
• Weight: 13 oz

Common Questions About the CST 500 R Coring, Stripping and Chamfering Tool

What is the CST 500 R used for?
The CST 500 R is used to core and strip the dielectric and sheath on 500 kcmil cables in one precise operation using manual or drill driven methods.

Who is this tool designed for?
This tool is designed for telecommunications technicians and cable installers working with large diameter coaxial and power feeder cables.

What makes the CST 500 R different from standard coring and stripping tools?
The CST 500 R features a ratcheting T handle option that some installers prefer, along with a replaceable heat treated sheath cutting blade that produces smooth, beveled edges without replacing the entire coring bit.

How the CST 500 R Supports Cable Preparation Workflows
The CST 500 R improves efficiency and consistency by combining coring, stripping, and chamfering in one tool. Its all metal construction and drill adapter support controlled, accurate manual or powered operation in the field.

At a Glance
• Coring, stripping, and chamfering tool for 500 kcmil cables
• Supports manual or drill driven operation
• Ratcheting T handle option available
• Heat treated, replaceable sheath cutting blade
• All metal construction with color coded guide sleeves
• Strip stops available for multiple strip lengths
