RIPLEY CABLEMATIC | CST 700TX-R Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter | #33855

RIPLEY CABLEMATIC | PART #33855

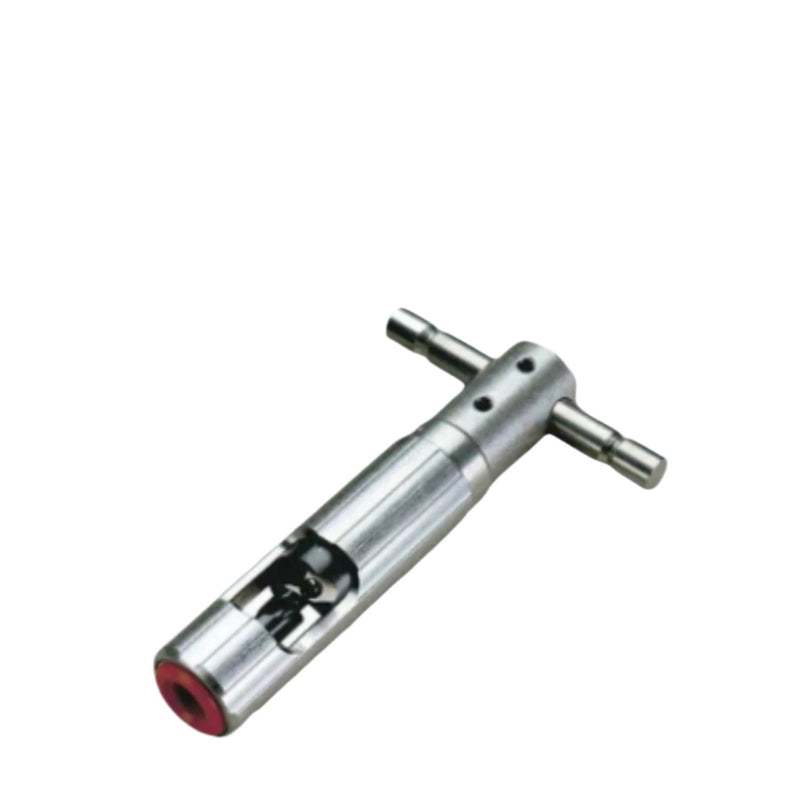

CST 700TX-R Coring, Stripping & Chamfering Tool with 3/8ʺ Drill Adapter

DESCRIPTION

Coring & Stripping has never been easier, this CST-700TX-R has a ratcheting mechanism that some installers prefer. Ripley offers this tool for manual or drill operation with a standard "T" handle and a built in 3/8' drill adapter

OVERVIEW

• Combination tool quickly strips the sheath & cores the dielectric on cables in one precise operation
• Durable, all-metal construction with color-coded guide sleeves provide easy identification
• Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced
• Strip stops available for strip lengths of 0.5″ to 2″ (12.7 to 50.8 mm)
• Standard models feature a “T” handle with a built-in 3/8″ drill adapter & ratchet models feature a ratchet “T” handle with a separate 3/8″ drill adapter for manual or drill operations

SPECIFICATIONS

• Length: 6.88" (175 mm)
• Weight: 13 oz (369 g)
• Cable Size: 700 kcmil

Common Questions About the CST 700TX R Coring, Stripping and Chamfering Tool

What is the CST 700TX R used for?
The CST 700TX R is used to core and strip the dielectric and sheath on 700 kcmil cables in one precise operation using manual or drill driven methods.

Who is this tool designed for?
This tool is designed for telecommunications technicians and cable installers working with large diameter coaxial and power feeder cables.

What makes the CST 700TX R different from standard coring and stripping tools?
The CST 700TX R features a ratcheting T handle mechanism preferred by many installers, along with a replaceable heat treated sheath cutting blade that produces smooth, beveled edges.

How the CST 700TX R Supports Cable Preparation Workflows
The CST 700TX R improves efficiency and consistency by combining coring, stripping, and chamfering in one tool. Its ratcheting handle and built in drill adapter support controlled manual or powered operation in demanding field environments.

At a Glance
• Coring, stripping, and chamfering tool for 700 kcmil cables
• Ratcheting T handle with built in 3/8 inch drill adapter
• Supports manual or drill driven operation
• Heat treated, replaceable sheath cutting blade
• All metal construction with color coded guide sleeves
• Strip stops available for multiple strip lengths
