RIPLEY CABLEMATIC | QRT 500-R Coaxial Coring & Stripping Tool with 3/8ʺ Drill Adapter | #33505
RIPLEY CABLEMATIC | PART #33505
QRT 500-R Coaxial Coring & Stripping Tool with 3/8ʺ Drill Adapter
DESCRIPTION
Designed to simultaneously strip the jacket, core the dielectric, strip the aluminum sheath and trim the conductor to the proper length in one quick operation
OVERVIEW
- Specially designed to strip the jacket, core the dielectric, strip the aluminum sheath and trim the conductor to the proper length for Commscope Quantum Reach (QR) Times Fiber Communications (TC) TX0 and Alcatel Cabel Benelux-ACE/ACW cables
- Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced

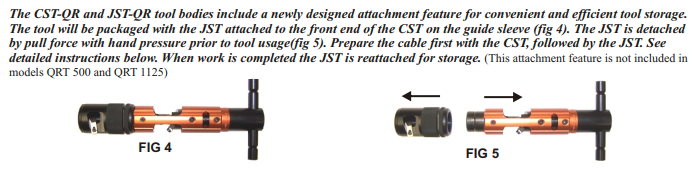

- Standard models feature a “T” handle with a built-in 3/8″ drill adapter & ratchet models feature a ratchet “T” handle with a separate 3/8″ drill adapter for manual or drill operations
- CommScope® Quantum Reach® (QR)
- Times Fiber Communications (TC) TX10
- Alcatel, Benelux-ACE/ACW cables
CABLE SIZE
- 500 kcmil
Common Questions About the Ripley Cablematic QRT 500 R Coaxial Coring and Stripping Tool
What is the Ripley Cablematic QRT 500 R used for?
The Ripley Cablematic QRT 500 R is used to strip the jacket, core the dielectric, strip the aluminum sheath, and trim the conductor to the correct length in a single operation on large coaxial cables.Who is this coaxial coring and stripping tool designed for?
This tool is designed for cable technicians, broadband installers, and maintenance crews working with large trunk and distribution coaxial cables in telecom and CATV systems.What makes the QRT 500 R different from standard stripping tools?
Unlike standard stripping tools, the QRT 500 R combines multiple cable preparation steps into one process and includes a built in 3/8 inch drill adapter for faster, more consistent manual or drill powered operation.
At a Glance
• Coaxial coring and stripping tool for large cables
• Performs jacket stripping, dielectric coring, sheath stripping, and conductor trimming
• Compatible with 500 kcmil coaxial cable
• Designed for QR, TX10, and ACE or ACW cables
• Heat treated, replaceable sheath cutting blade
• Built in 3/8 inch drill adapter for manual or drill use
