SIGNAL FIRE | Optical Fiber Fusion Splicer | #AI-9

Sale Sale
Original price $997.95
Original price $997.95 - Original price $997.95
Original price $997.95
Current price $899.95
$899.95 - $899.95
Current price $899.95

SIGNAL FIRE | PART #AI-9

DESCRIPTION

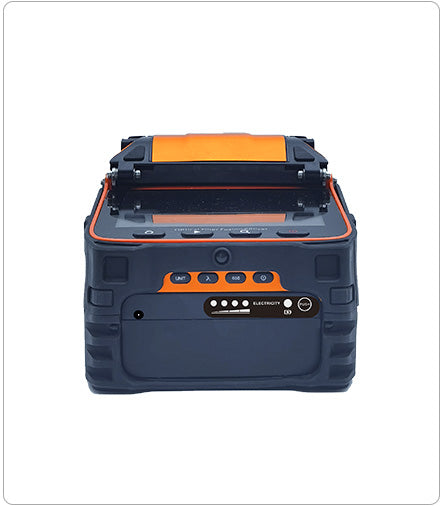

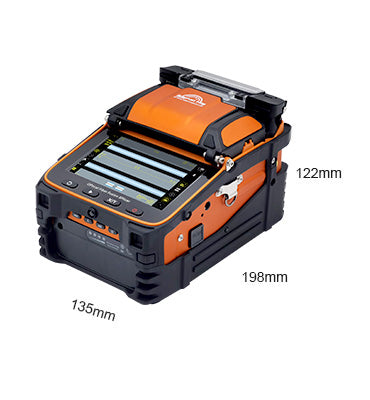

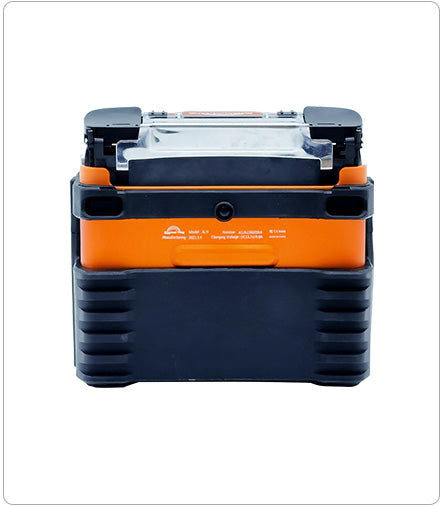

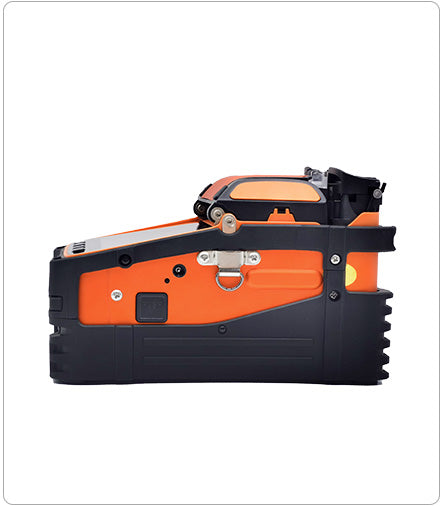

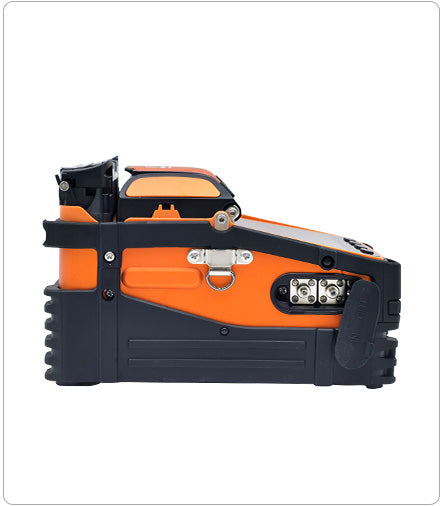

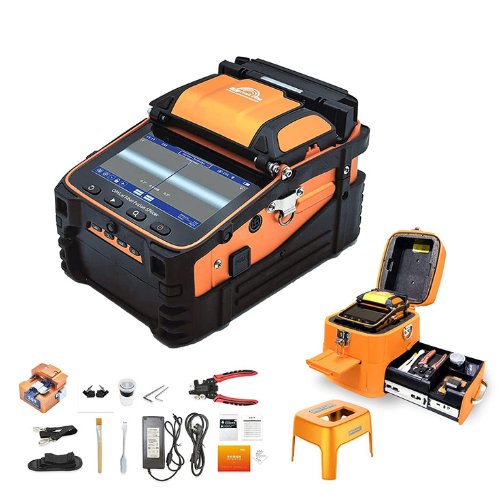

Signal Fire Fiber Splicer AI-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating, 5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine. Large-capacity lithium battery can be heated by fusion of about 260 cores in high altitudes, deserts, extremely cold, and other harsh environments, performance is still outstanding.

Used in telecom, mobile, Unicom, radio and television operators posts and telecommunications, railway engineering companies and institutions of optical cable line construction, line maintenance, emergency repair, security monitoring, and research institutes research, and teaching.

3 IN 1 FIBER HOLDER]- SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable.
[5’’ TFT DISPLAY], [BUILT-IN POWER METER & VFL], [7800MAH LITHIUM BATTERY].

This product has a Limited 1-Year Warranty. Some exclusions do apply, see below.

  • Warranty does not include the cleaver, Miller clamp, stripping pliers, fiber holders, and other tools whose life depends on the frequency of use and the use of the environment.
  • Electrodes covered up until splice count reaches 3,000.
  • Battery warranty covered for one year
  • Warranty voided if failure or damage occurs from a natural disaster or other outside force.
  • Human factors such as drops result in damage.
  • Only the manufacturer can try to fix repairs, they assume responsibility if anything happens during the repair process. The owner of the product should not try to disassemble or repair the issue themselves; the results may further damage the product.

SEE DESTINY SOLUTIONS FOR ANY WARRANTY OR NON-WARRANTY ISSUES.

    SPECIFICATIONS

    • OPM: Switch Between Six Wavelengths
    • Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
    • VFL: Switch Between Three States
    • Power: 15mW, 2Hz flashing and steady mode
