VIAVI | SmartOTDR 100B 1310/1550 AND FILTERED 1625NM - SC/APC | #ST-OTDRF136FB-APC-P1
VIAVI | PART #ST-OTDRF136FB-APC-P1

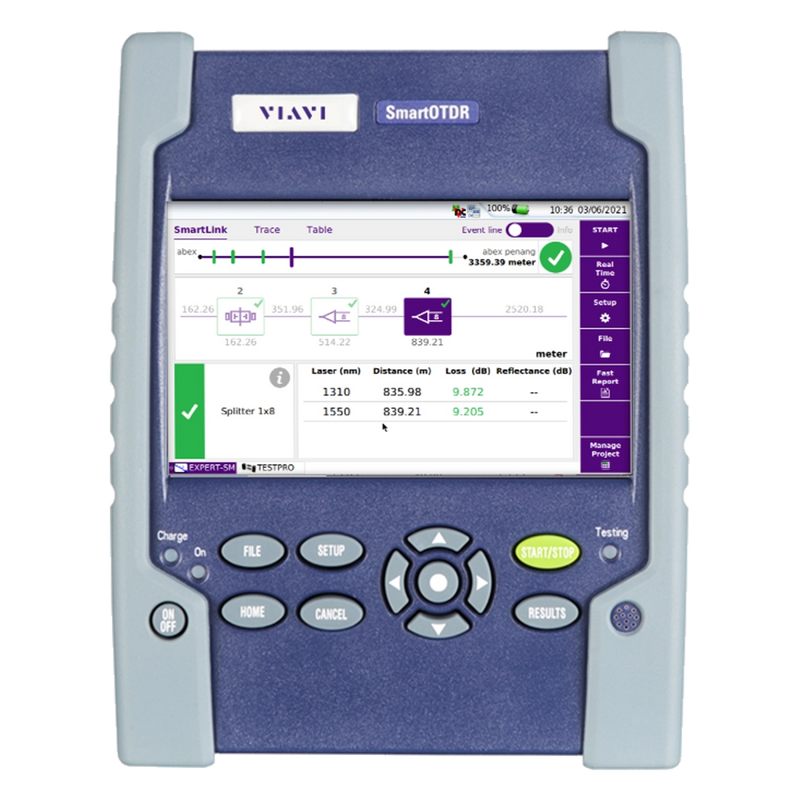

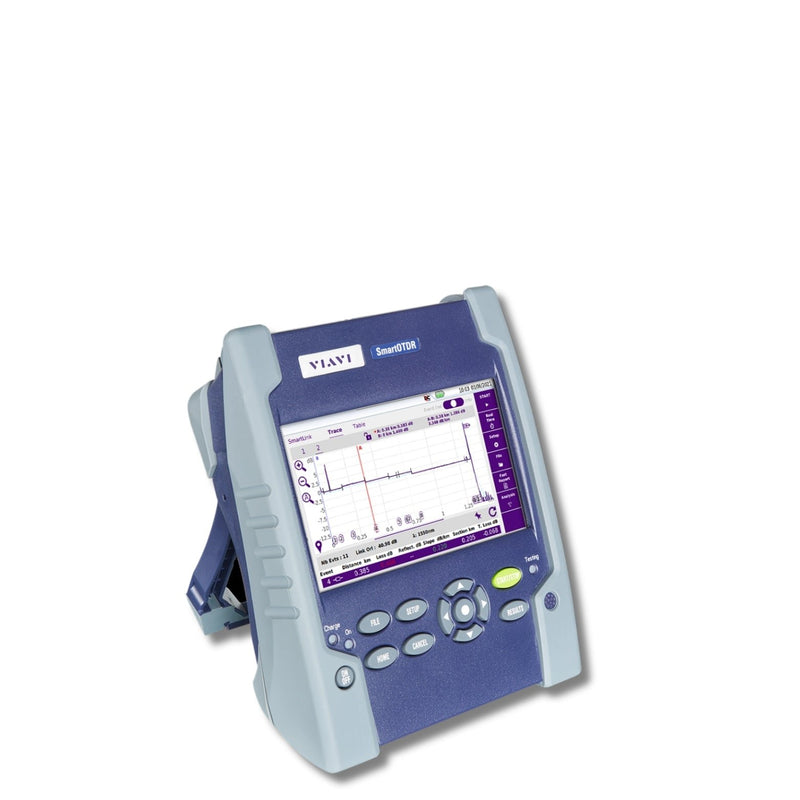

SmartOTDR 100B 1310/1550 AND FILTERED 1625NM - SC/APC
DESCRIPTION
The affordable, easy-to-use handheld tester for techs at any level. Lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks— with a tailored OTDR interface and automatic analysis that any technician can understand. With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere
BENEFITS
- Combines all essential fiber tests in one
handheld with visual fault locator (VFL), optical
power meter (OPM), and connector inspection
scope options - Simplifies OTDR analysis with Smart Link
Mapper (SLM) result view - Upgrades easily in the field
- Automates testing with objective,
pass/fail results - Enhances productivity anywhere with
powerful network connectivity options
FEATURES
- Single-/dual-/tri-wavelength versions
with 1310/1550 nm and in-service 1625 or
1650 nm wavelengths - Light, compact, hands-free design includes
5” high-visibility outdoor touch screen - Integrated CW light source
- PON optimized to test through
1x128 splitter ratio with FTTH-SLM - Supports distributed PON architectures
(un-balanced, tapered and indexed splitter) - Built-in broadband and dual-band selective
power meter (1490/1550/1577 nm) - Automated fiber inspection with pass/fail
analysis software - 4G/5G connectivity via USB, Bluetooth®/
WiFi options - All-day battery life (20-hour autonomy)
- Password protection and Watermark
logo options
INCLUDES
- F136FB-APC - SMARTOTDR B RANGE - 1310/1550/FILTERED 1625NM SC/APC.
- E10VFL - BUILT-IN VFL OPTION FOR SMARTOTDR AND OPTIMETER.
- E10PM - OPTICAL POWER METER OPTION FOR SMARTOTDR.
- E10WIFIBLUE - WIFI/BLUETOOTH BUILT-IN OPTION FOR SMARTOTDR.
- ESMARTFTTH-100-BASE - FTTH-SLM BASE OTDR FUNCTION FOR SMARTOTDR UNITS.
- FBPP-SCASE2 - LARGE SOFT CARRYING CASE.
Common Questions About the VIAVI SmartOTDR 100B
What is the VIAVI SmartOTDR 100B used for?
The VIAVI SmartOTDR 100B is used for installation, maintenance, and troubleshooting of metro, access, and FTTH fiber networks, including in-service testing at 1625 nm.
Who should use the SmartOTDR 100B?
This tester is designed for technicians of any experience level, from new installers to experienced fiber techs, who need fast, reliable OTDR results with minimal setup and interpretation.
What does filtered 1625 nm mean on the SmartOTDR?
Filtered 1625 nm allows in-service OTDR testing on live fibers without disrupting traffic, making it ideal for troubleshooting active access and metro networks.
How the SmartOTDR 100B Simplifies Fiber Testing
The VIAVI SmartOTDR 100B combines OTDR testing, power measurement, visual fault location, and optional connector inspection into a single handheld platform. With automated analysis, Smart Link Mapper views, and pass or fail results, it helps technicians quickly identify faults, validate PON links through splitters, and document network performance with consistent, repeatable results.
At a Glance
• Handheld OTDR for metro, access, and FTTH fiber networks
• Supports 1310, 1550, and filtered 1625 nm in-service testing
• PON optimized for testing through up to 1x128 splitters
• Automated analysis with clear pass or fail results
• Designed for fast, simple operation and all-day field use
