DESCRIPTION
Optical Channel Checker
DWDM (C-Band)

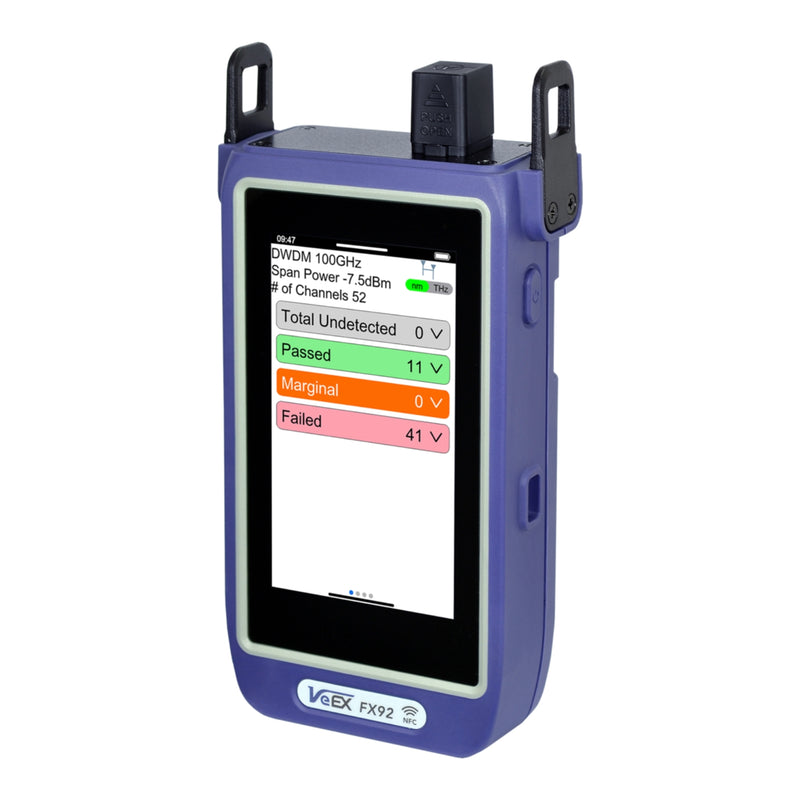

The FX92 OCC simplifies verification and maintenance of DWDM systems by scanning and automatically reporting all available channels with individual wavelength or frequency and total power levels. It offers four simple views to check the performance of each channel and an OPM view mode is available for single channel details. Further elevate your compliance by using the customizable channel plans and 2-channel level comparison feature to verify your network.
INCLUDES
- Z06-09-002P (FX92) 100GHz DWDM C-Band Optical Channel Checker, CH11-62
- Z66-00-189G Universal 2.5mm Interface (Keyed*) with one Field
- Replaceable Optical Connector Protector - APC Polish
- F99-00-177G SC/APC Adaptor for Universal Interface (Keyed*)
- Z66-00-196G Dust Cover Kit for Optical Connector Protector
- Z66-00-106G Wi-Fi and Bluetooth for Remote Control and File Transfer
HIGHLIGHTS
- Now available: Field Replaceable Optical Connector Protector System (US Patent 12,481,111) extends the instrument's lifespan, reduces downtime and improves productivity
- Robust and ergonomic handheld design for field environments
- Intuitive graphical user interface (GUI)
- Large and bright high-resolution color display for easy viewing
- Easy to use and responsive capacitive touchscreen with gesture support
- Customizable user profiles
- Fast boot-up time
- Large internal data storage for test results
- Generate and save test reports in HTML file format and export to PDF
- Compatible with NoApp® (US Patent 12,190,199)* cloud service, with native NFC and QR support, for immediate test result transfer and sharing
- Built-in Wi-Fi option
- Built-in web access server for remote control and management
- USB-C PD interface for charging, memory sticks and LAN adapters
- Rechargeable Li-ion battery offers up to six hours of continuous operation
- Low voltage alarm with auto-off feature
* This product is protected under U.S. Patent No. 12,190,199 and may be covered by additional patents. Any unauthorized reproduction, sale, or distribution is strictly prohibited and may result in legal action.
FEATURES
- Fast scan speed, <1 second
- Continuous scanning of all channels (C-band)

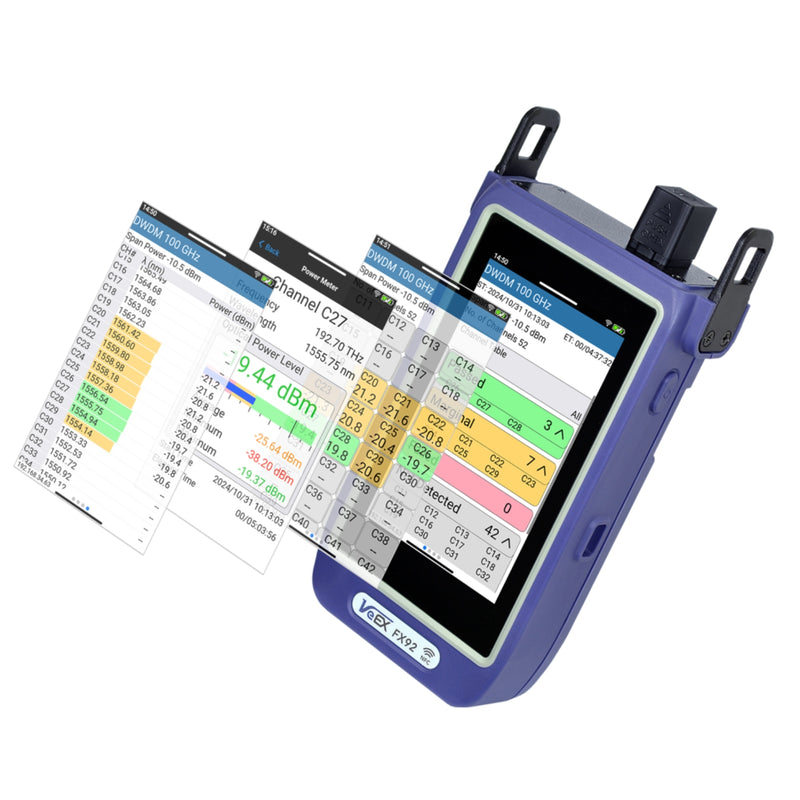

- Viewing modes: Summary, Tiles (US Patent 11,784,893)*, Bar Graph, and Table
- Active channel detection
- Customizable channel plans to focus on expected wavelengths
- Programmable Pass/Fail level thresholds
- Max Hold feature helps identify channel level fluctuations and intermittent channel events
- 2-channel level comparison
- Test point attenuation compensation function
- Frequency spectrum: 191.00 – 196.25 THz
- Wavelength range: 1569.59 to 1527.60 nm
- Peak wavelength resolution: 0.01 nm
- DWDM channel grid: 100 GHz (50 GHz optional) ITU-T G.694.1
- Frequency accuracy**: ±6.25 GHz
- Channel input power**: -40 to 0 dBm at 50 GHz
- Power measurement resolution: 0.1 dB
- Relative power accuracy**: 0.9 dB
- Maximum channels composite power: 24 dBm
* This product is protected under U.S. Patent No. 11,784,893 and may be covered by additional patents. Any unauthorized reproduction, sale, or distribution is strictly prohibited and may result in legal action.
** Refer to the Optical Specifications section
