Professional Multi-Function OTDR (1310/1550 nm)
DESCRIPTION

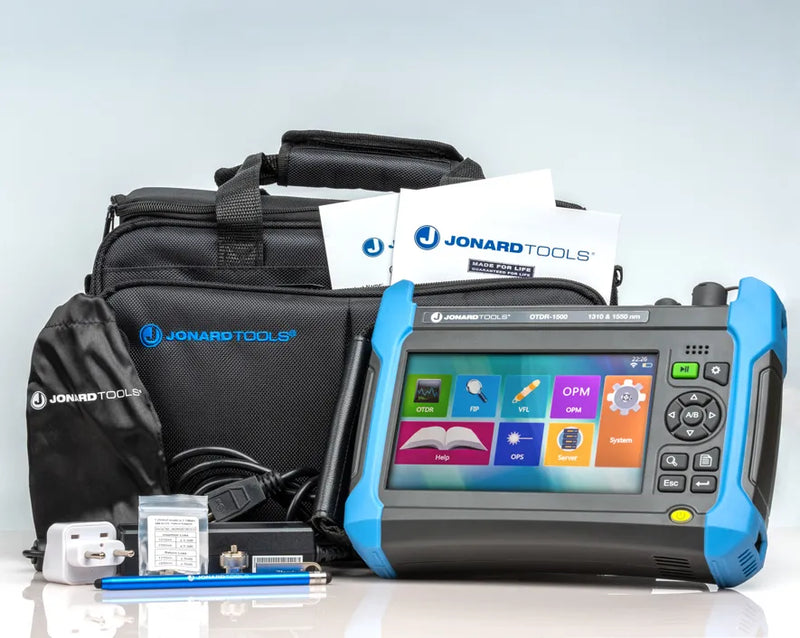

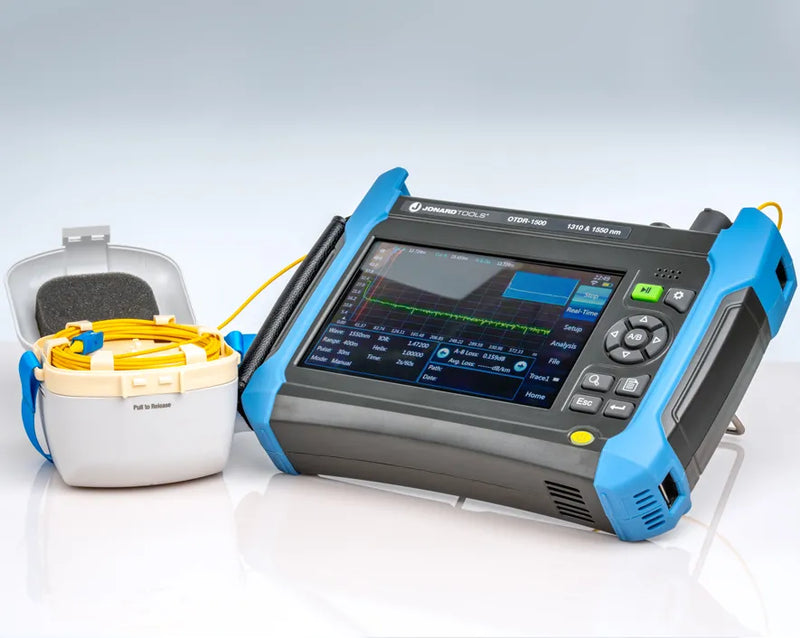

Jonard Toolsā Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This OTDR also features the following.

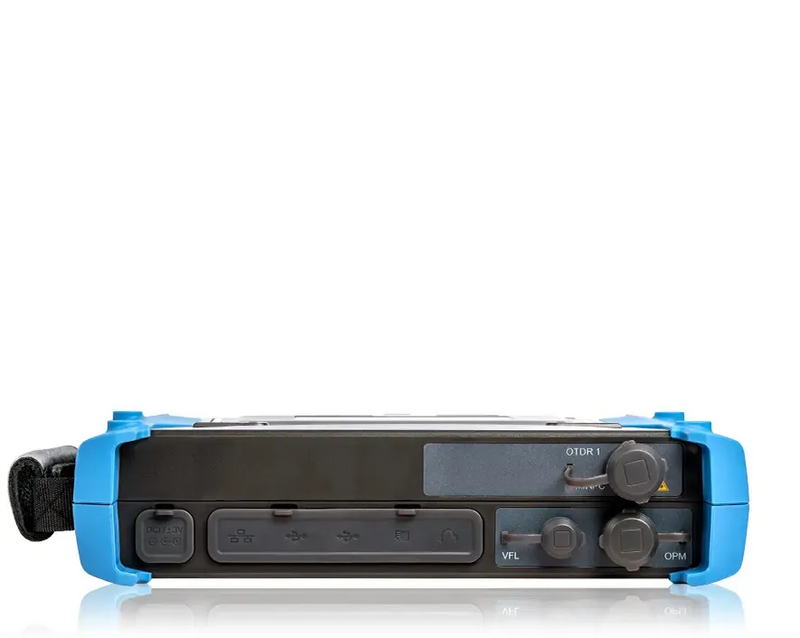

- Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module

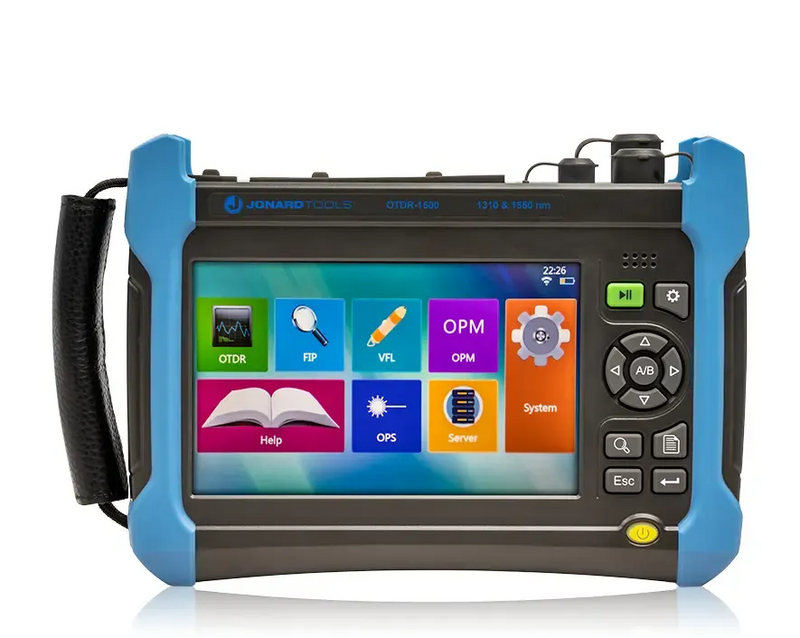

- Large, bright 7ā color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 32/30 Dynamic Range
- Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
- Built-in Event Map shows faults with graphical images for simplified troubleshooting
- Handy stylus to keep LCD screen fingerprint free
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 200 MB Internal storage stores up to 4,800 entries, with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium-ion battery provides power on-the-go
- On-board Wi-FiĀ connectivity for data transfers or live viewing of data (for Android devices)
- Can be charged or connected to a computer for data transfer via included micro-USB cable

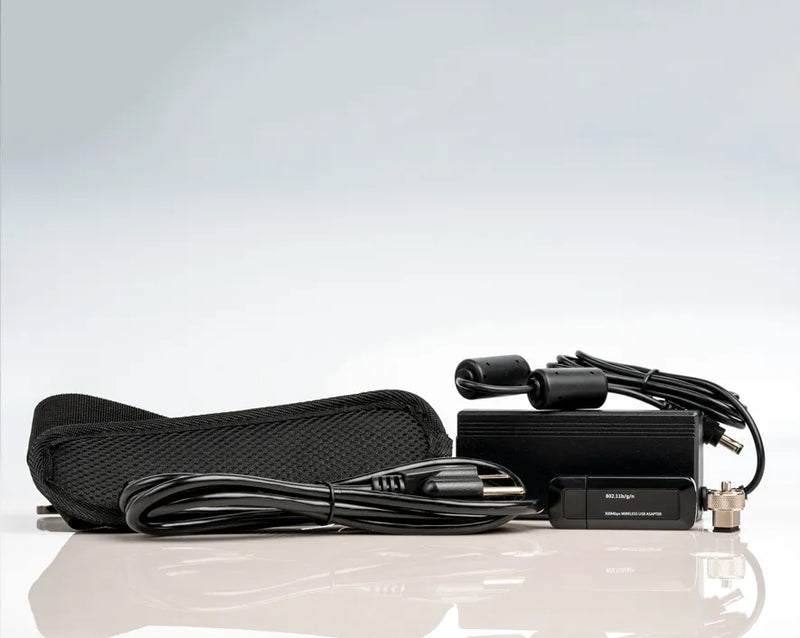

- Includes FC/APC & SC/APC OTDR adapters, LC/UPC adapter for OPM, downloadable software (also featured in the download section of this product page), power adapter, calibration certificateĀ and instruction manual

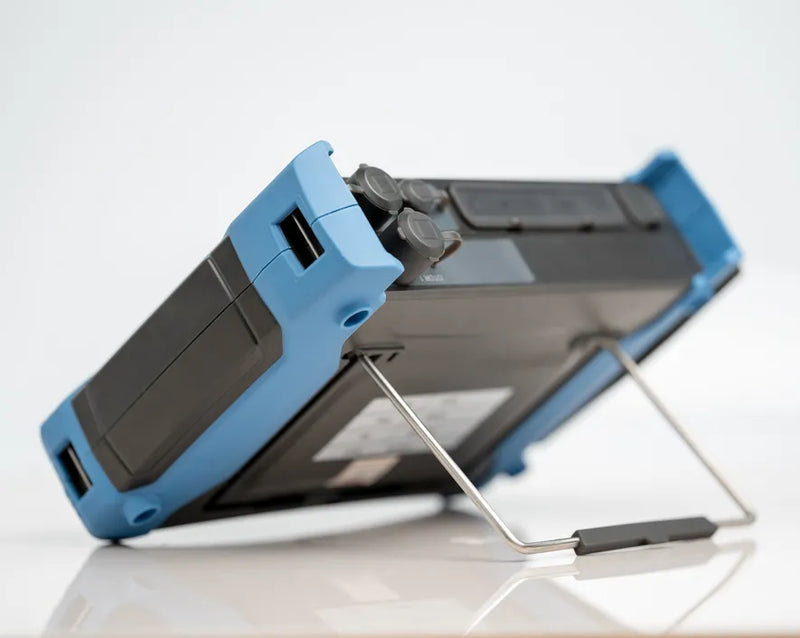

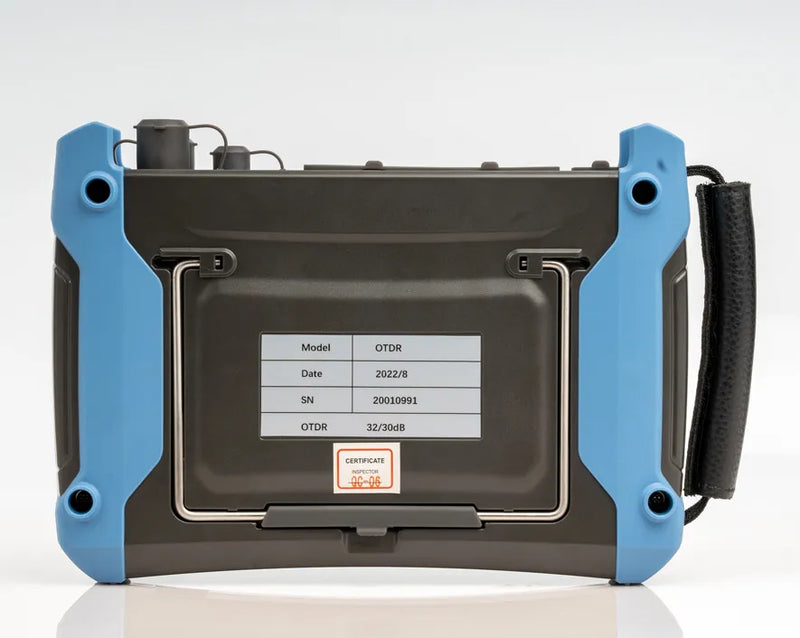

- Convenient unit kickstand

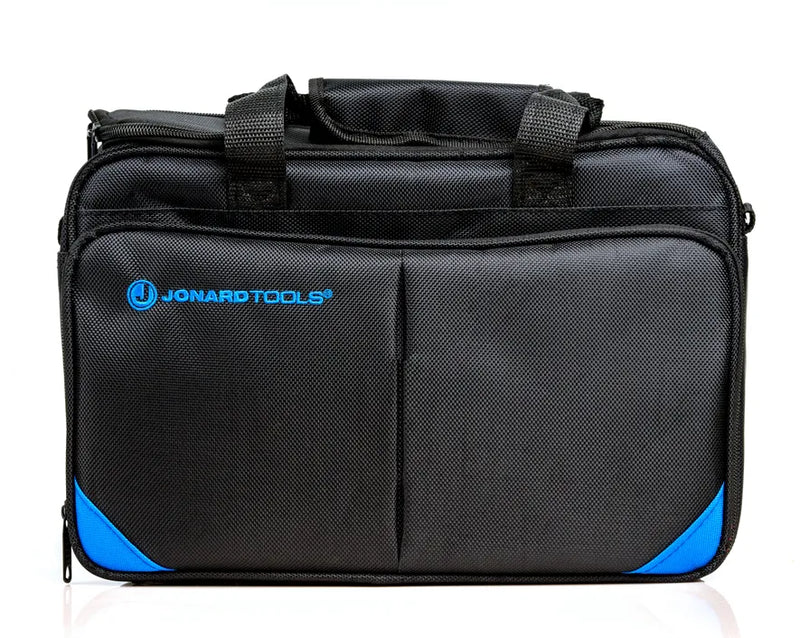

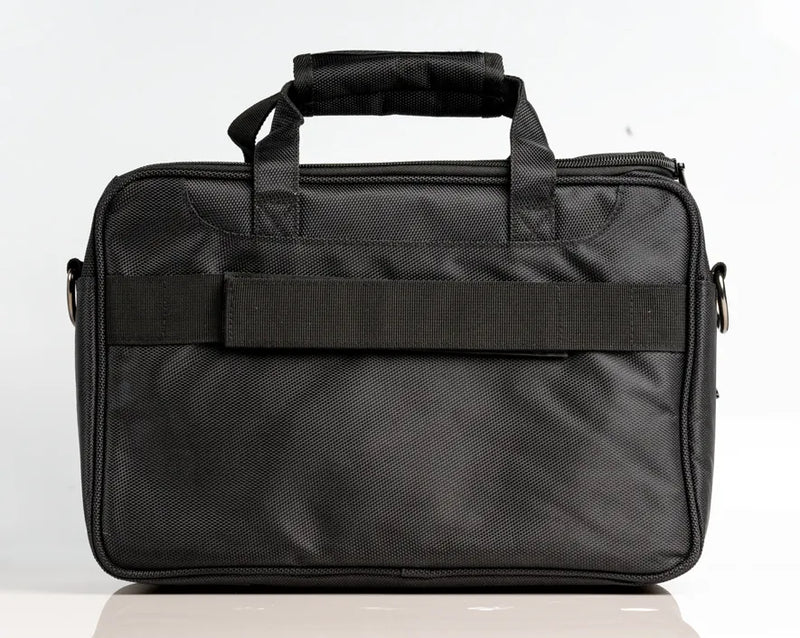

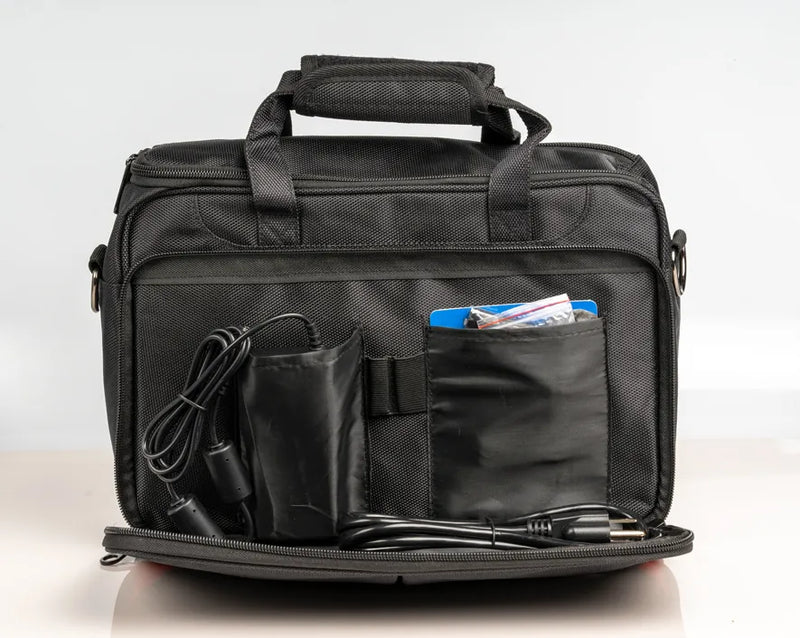

- Protective carrying case with adjustable strap
DOCUMENTS
OTDR-1500Ā Professional Multi-Function OTDR Datasheet
OTDR-1500Ā Professional Multi-Function OTDR Instructions Manual
SPECIFICATIONS
| Wavelengths |
1310Ā±20nm, 1550Ā±20nm |
|---|---|
| Fiber Type |
G.652 SingleMode Fiber |
| Dynamic Range |
32 dB/30 dB |
| Event Blind Zone |
0.5 m |
| ATT Blind Zone |
0.5 m |
| Test Range |
500m-80km |
| Pulse Width |
3ns-10us |
| Range Accuracy |
Ā±ļ¼0.75 m + Sampling Interval + 0.0025ļ¼ Ć Test Distanceļ¼ |
| Loss Accuracy |
Ā± 0.02 dB/km |
| # of Sampling Points |
256k |
| Sampling Resolution |
0.5m-32 m |
| Reflection Accuracy |
Ā± 2 dB |
| Data Storage |
Internal: 200 MB; External: MicroSD Card |
| Laser Safety Level |
Class II level |
| File Format |
SOR Standard File Format |
| Included Connectors for OTDR |
FC, SC (APC) |
| Dimensions | 13 in x 4.5 in x 9.5 in (33.02 cm x 11.43 cm x 24.13 cm) |
| Weight | 6.31 lb (2866.556 g) |
| UPC # | 810053352113 |
Ā
Common Questions About the Professional Multi Function OTDR
What is a professional multi function OTDR used for?
A professional multi function OTDR is used to test fiber optic networks by locating faults, measuring fiber length, and calculating optical loss during FTTx installation and maintenance.
Who is this OTDR designed for?
This OTDR is designed for fiber technicians and network installers who need an all in one handheld testing solution for access and FTTx networks.
What makes this OTDR suitable for field troubleshooting?
This OTDR combines OTDR testing, light source, power meter, and visual fault locator functions with a large touch screen and event map for simplified diagnostics.
At a Glance
ā¢ All in one OTDR for fiber network testing
ā¢ Dual wavelength testing at 1310 and 1550 nm
ā¢ Built in event map for fault identification
ā¢ Rugged portable design with rechargeable battery
