TEMPO | Transmitter for 501T | #501T
TEMPO COMMUNICATIONS | PART #501T

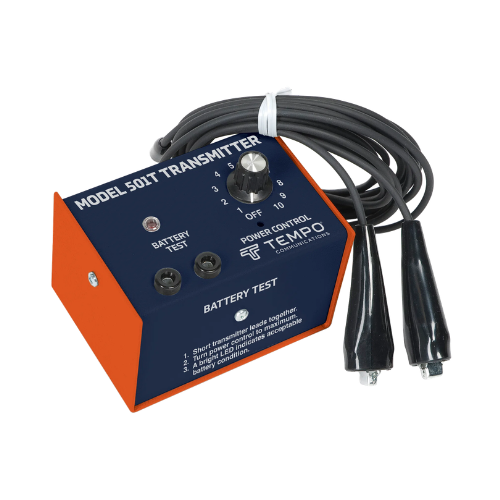

Transmitter for 501T
DESCRIPTION
Transmitter for 501T. With its inductive signal detection, the TEMPO Communications Tracker II can be used on active or dead systems. Now you can trace the path and determine the depth of buried wires, cables, and metallic pipes or conduit and find the ends of a cut cable without having to deactivate the systems.
OVERVIEW
- Trace the path and determine the depth of buried conductors.
- Use on active or dead systems.
- Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy.
- The lightweight receiver provides both audible and visual indications of signal strength for accurate identification.
- The transmitter offers three methods of connection: direct, inductive coupler, or inductive antenna.
- Inductive coupler clamps around the wire or pipe for use on active lines, or where isolating the line is not an option.
- Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor.
- Traces over distances to 4,000 feet (1.2 km) and depths to 7 feet (2.2 m).
- Adjustable sensitivity and transmitter power.
- Includes transmitter assembly, receiver assembly, inductive coupler (clamp), inductive antenna (built-in), two 8 foot (2.4 m) test leads with heavy-duty alligator clips, and a durable polyethylene case.
- Battery-operated (8 - AA and 1 - 9V NOT included).
2 Wire Application Note for Locators
SPECIFICATIONS
| Attribute name | Attribute Value |
|---|---|
| Application | For Tracker II |
| Construction | <ul><li>Transmitter/Receiver-Powder Coated Aluminum</li><li> Case-Vacuum Formed Polyethylene</li></ul> |
| Dimensions | 4.25 IN X 3.000 IN X 3.25 IN |
| Transmitter Frequency | 447.5 KHZ |
| Transmitter Power | 40 Vp-p (140 MILW) Maximum |
| Item Status Date | 01072005 |
| Country of Origin | US |
| UNSPSC | 41113642 |
| International Harmonize Code | 8517620020 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
Common Questions About the Tempo 501T Tracker II Transmitter
What is the Tempo 501T Transmitter used for?
The Tempo 501T is the transmitter for the Tracker II system, used to trace the path and determine the depth of buried wires, cables, metallic pipes, and conduit.
Can the Tempo 501T be used on active and inactive lines?
Yes. The Tracker II system can be used on both active and dead systems, allowing technicians to locate underground conductors without always having to deactivate the system.
How can the Tempo 501T apply a signal to a buried conductor?
The 501T supports direct connection, an inductive coupler, or its built in inductive antenna, giving technicians multiple ways to apply a tracing signal depending on the application.
At a Glance
• Transmitter designed for the Tempo Tracker II locating system
• Helps trace buried wires, cables, metallic pipes, and conduit
• Supports locating conductors at depths up to 7 feet
• Tracker II system can trace distances up to 4,000 feet
• Supports direct, inductive coupler, and inductive antenna connections
• Adjustable transmitter power helps improve locating accuracy
