RYCOM INSTRUMENTS | PART #001 00700 00

Pathfinder Precision Locating System - Lithium ION

DESCRIPTION

The Pathfinder Precision Locating System from Rycom Instruments, Inc is engineered for unmatched accuracy in today's complex utility environments. Built around our advanced Pathfind SAF Technology, this system is ideal for challenging conditions. Including congested easements, extended utility runs, and essential service drops. Designed with simplicity, precision, and affordability in mind, the Pathfinder is an essential tool for professionals dedicated to safeguarding buried infrastructure.

At the core of Pathfind is our proprietary FrequencyFlex, offering over 1,000 programmable frequencies. With field-programmable push-button customization, users can instantly tailor frequency settings to match specific locate conditions-adding or removing frequencies as needed.

The optional PathLink Technology revolutionizes efficiency by creating a remote link between transmitter and receiver, allowing you to adjust output power and frequency from the handheld receiver, no need to return to the transmitter.

A high-contrast LCD interface provides real-time signal data in any environment, with automatic depth and current readings and intuitive directional arrows, visible even in direct sunlight or low light.

FEATURES

FrequencyFlex™
· Over 1,000 field-programmable locating frequencies
· Customization on-site for maximum adaptability

8 Locating Modes
· Multi-channel processor with an advanced antenna array ensures pinpoint accuracy

PathLink™ Technology (Optional)
· Remotely adjust transmitter power and frequency from up to 400 yards away using the receiver

Automatic Impedance Matching
· Maximizes transmission range while minimizing battery usage

High-Contrast LCD Interface
· Displays continuous depth, current, signal strength, and directional guidance in all lighting conditions

Constant Depth & Current Readout
· Real-time updates for line depth and signal quality during active locates

84 wH Lithium-Ion Batteries
· Lightweight, long-lasting power source for both transmitter and receiver

4-Year Warranty
· Extendable with registration, backed by decades of Rycom reliability

Made in the USA
· Proudly designed and manufactured in Raytown, Missouri, since 1946

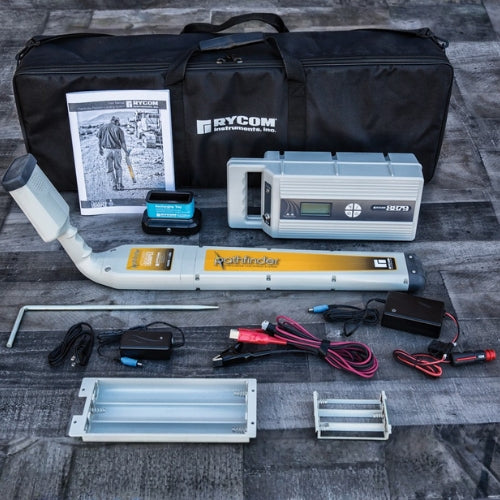

OVERVIEW

PATHFINDER PLDL Receiver: Precision locating receiver offering multiple active & passive frequencies, multiple locate modes, constant depth readout and current measurement. Standard package equipped with lithium-ion rechargeable batteries.

PATHFINDER Transmitter: 10-watt transmitter capable of direct connection, transmitter induction & coupler induction. Standard with lithium-ion rechargeable batteries.

Direct Connection Cord & Ground Rod: Direct connection lead clips, each with 10 foot of reach & Ground rod for near-end independent ground.

Protective Carrying Case: A heavily padded protective case for equipment during transport and use.

Batteries & AC Battery Charger: Li-Ion battery packs for both the transmitter and receiver.

AC Battery Charger: Battery chargers for use in ac wall outlet.

Manual: Operations manual
