JONARD | Optical Fiber Identifier | #OFI-50
JONARD TOOLS | PART #OFI-50
Optical Fiber Identifier
DESCRIPTION

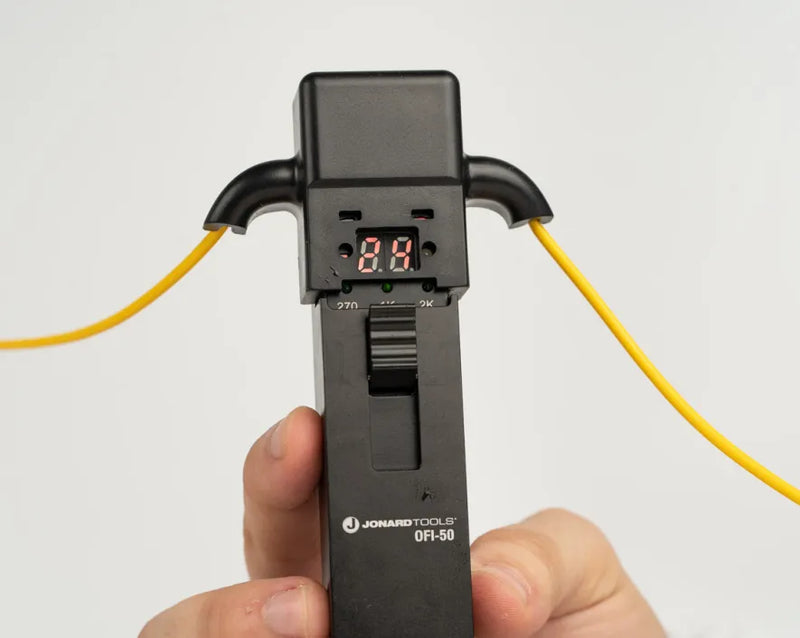

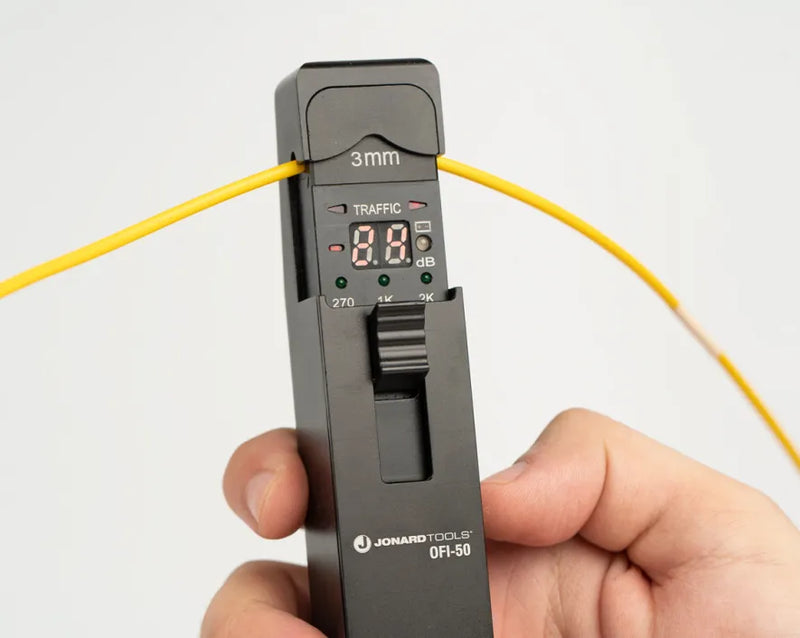

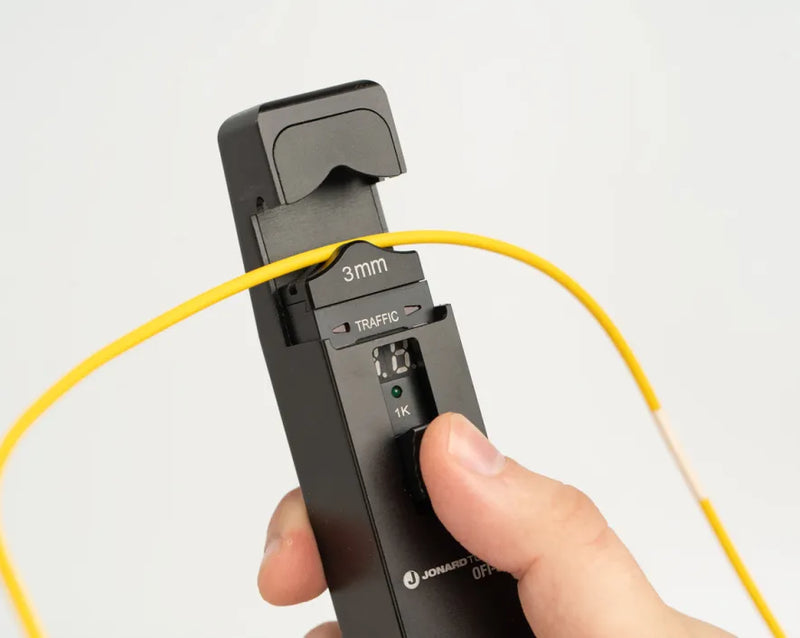

Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following
- Easy-to-use one key operation
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning.

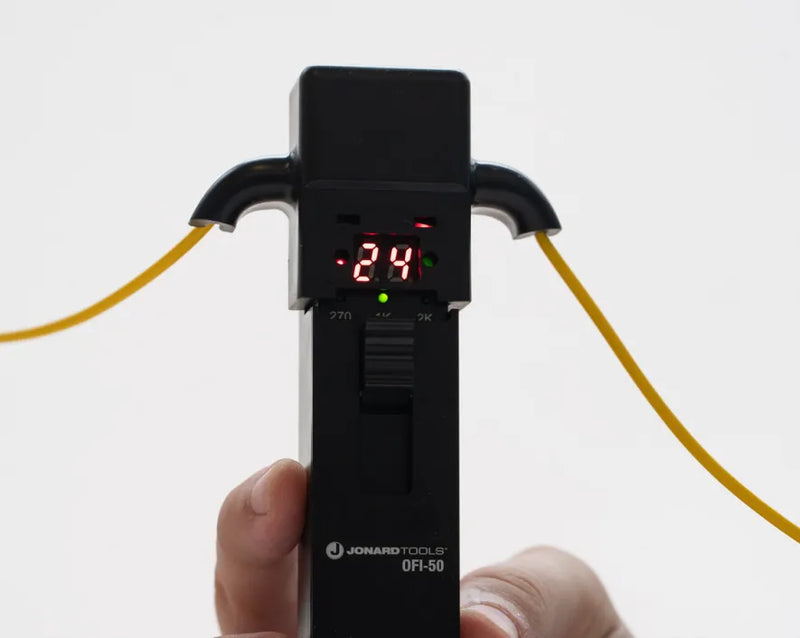

- The display shows you the relative core power clearly

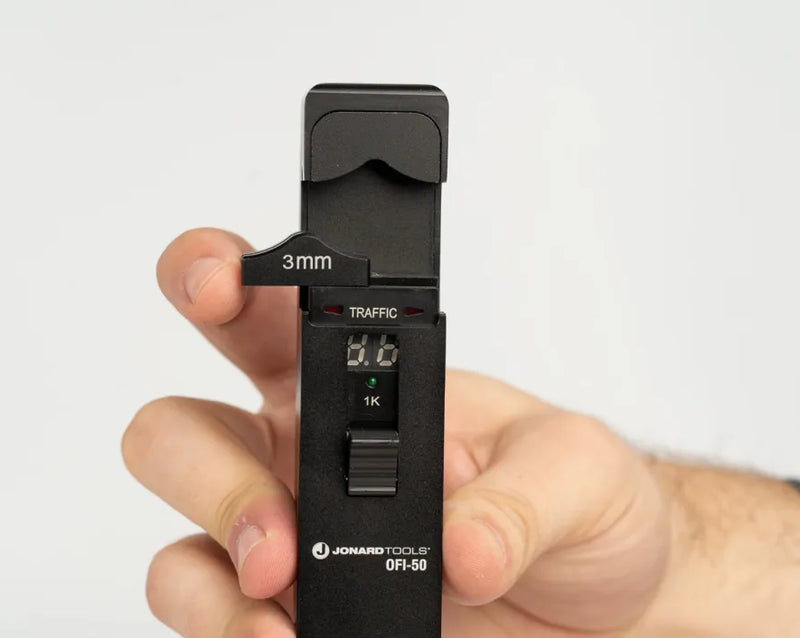

- Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
- Included sunshade protects the fiber optic cable from interference to provide more accurate readings
- Durable metal housing provides long life and durability
- LED indicator lets you know when the battery is running low
Kit Includes:
- Fiber Identifier
- 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters
- Sunshade
- (1) 9V Battery
- Carrying pouch
DOCUMENTS
OFI-50 Optical Fiber Identifier Datasheet
OFI-50 Optical Fiber Identifier Instruction Manual
SPECIFICATIONS
| Identified Wavelength Range |
800-1700 nm |
|---|---|
| Identified Signal Type |
CW, 270Hz±5%，1kHz±5%，2kHz±5% |
| Detector Type |
Ø1mm InGaAs 2pcs |
| Adapter Type |
Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0 |
| Signal Direction |
Left & Right LED |
| Signal Direction Test Range |
-46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber) |
| Signal Frequency Display |
270 Hz, 1 kHz, 2 kHz |
| Insertion Loss |
0.8 dB (1310nm), 2.5 dB (1550nm) |
| Battery Type |
9V |
| Weight | 0 lb (0 g) |
| UPC # | 811490010901 |
Common Questions About the Optical Fiber Identifier
What is the Optical Fiber Identifier used for?
The Optical Fiber Identifier is used to identify live fiber traffic direction and relative core power without disconnecting or interrupting the network.
Who is this optical fiber identifier designed for?
This tool is designed for fiber optic technicians, telecom installers, and network maintenance crews who need to safely identify fibers in active networks.
What makes this fiber identifier safe for live network testing?
This tool detects signal direction, frequency tones, and relative power through non intrusive measurement, allowing identification of active fibers without damaging or disrupting service.
At a Glance
• Identifies live fiber traffic direction without network interruption
• Detects signal tones at 270 Hz, 1 kHz, and 2 kHz
• Supports multiple fiber sizes with included adapters
• Durable housing with clear display and audible alerts
