GMP | PART #GMP74135

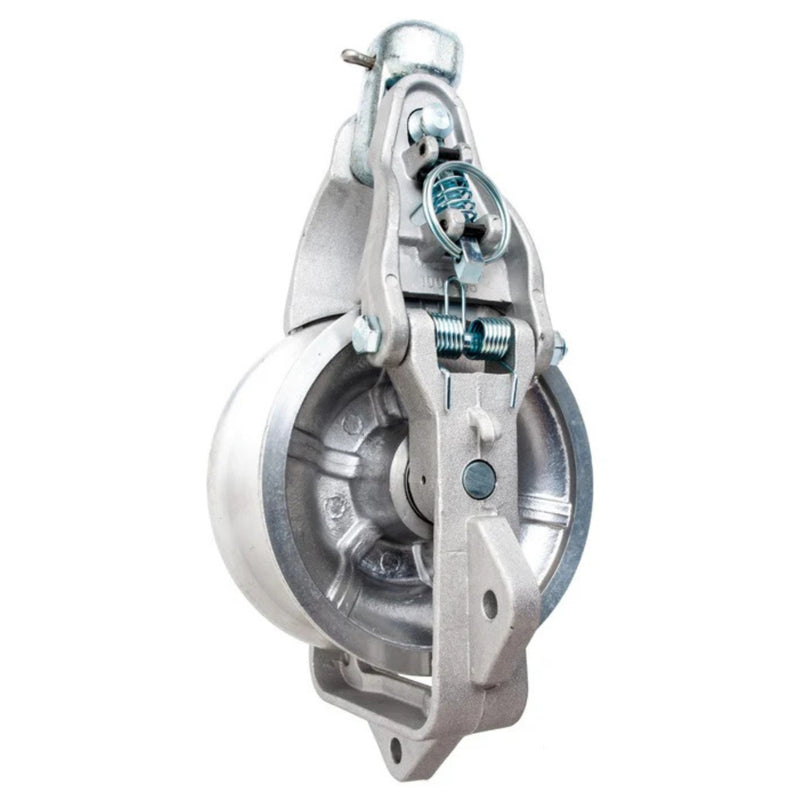

Universal Stringing Block – Bethea Style With Spring Loaded Pin Style Locking Latch (74135)
DESCRIPTION
These rugged universal blocks feature high strength and low weight at a value price. With a working load limit of 2,500 lbs., they can be configured with 5 different mounting options. Permanently lubricated bearings provide long term durability and an extreme temperature operating range
- 8.1 – 13.0-lbs depending on configuration
- 7” Block (O.D.)
- 3” Sheave (rim width)
- 3-1/8” Width (throat)
- Cast from A356 Aluminum and heat treated
- 2" Max diameter of the conductor
- Working Load Limit of 2,500 lbs.
- Double shielded, deep groove ball bearings
- Permanently lubricated to withstand -5F to 250F
- Profile machined groove for concentricity
