GMP | Civitella Cable Lasher | #GMP71000

GMP | PART #GMP71000

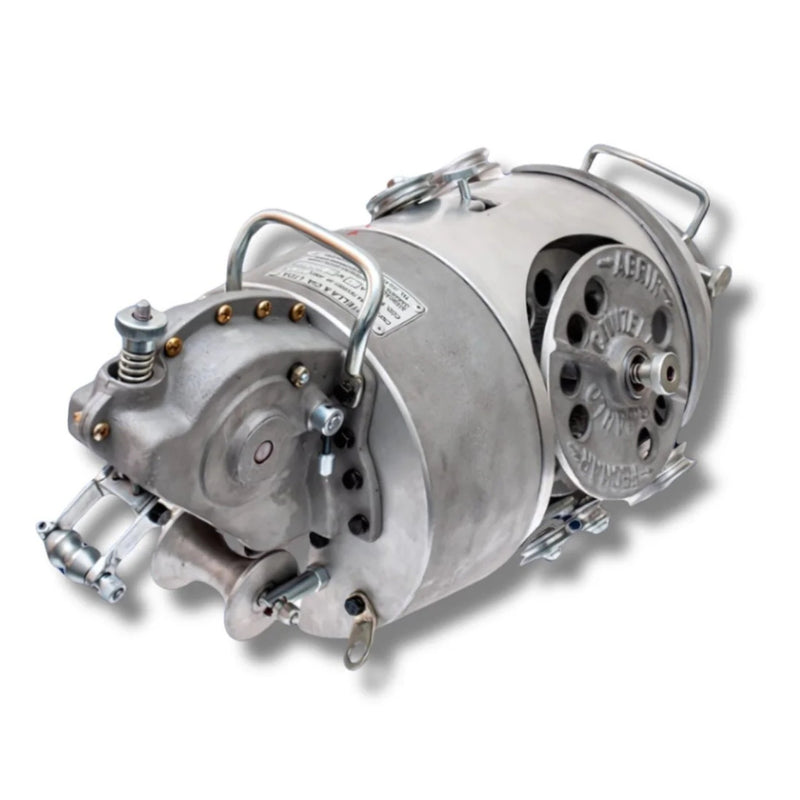

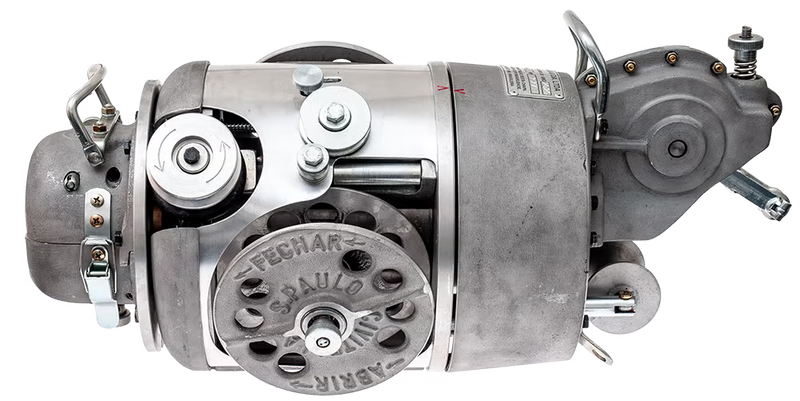

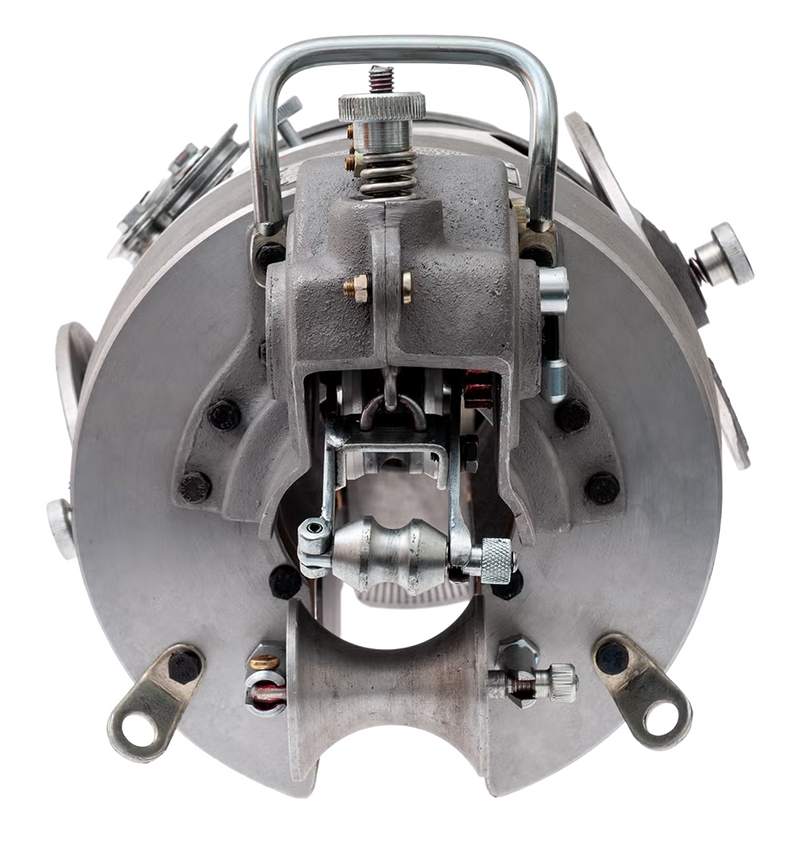

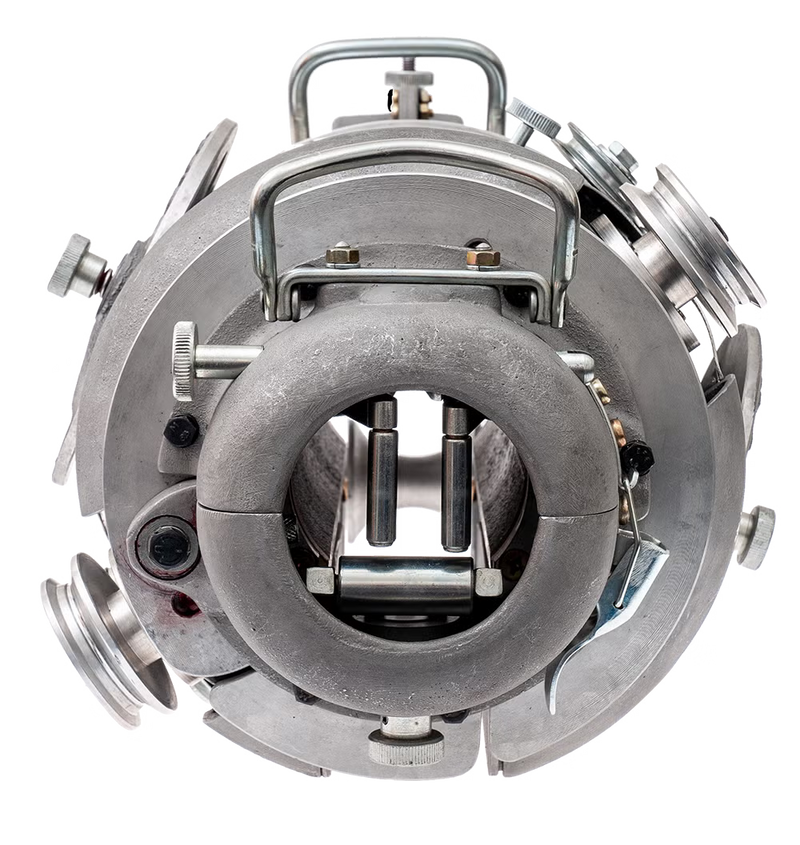

Civitella Cable Lasher (71000)

DESCRIPTION

The Civitella cable lasher has been designed to string cable quickly and easily with its lightweight and parallel-pull capability. It can be used for new installs or with existing cables in place.

FEATURES

• Lashes single or bundled cables up to 2.2 in. (56mm)
  onto strand sizes 1/4 in. to 1/2 in. (6-12mm) diameter
• A simple capstan drive yields a reliable smooth and
  quiet machine.
• Dual wire magazines for loading two coils of stainless
  steel lashing wire
• Lightweight and compact: Unloaded weight 40 lbs.
  (34kgs.); only 10.6 in. O.D. x 22.5 in. long (26 x 57cm).

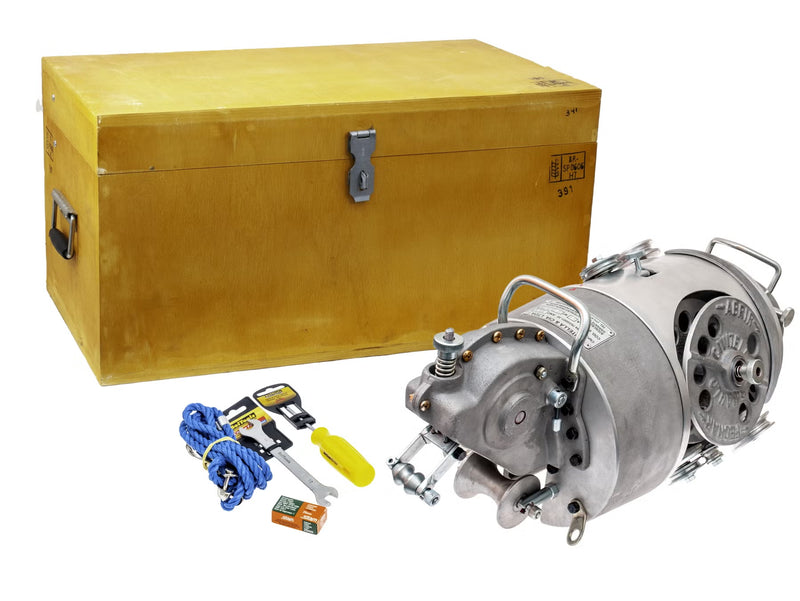

• Furnished with a sturdy wooden carry case, a bridle
  pull rope with snap hooks, a screwdriver, a wrench, and an instruction manual.

SPECIFICATIONS

• Max Bundle Size: 2.2 in (56mm)
• Strand Size: 1/4 - 1/2 in. 6.6m, 5/16m, 10m
• Overlashing: Yes
• Drive: Parallel Pull Wire Drive
• Wire Size: .038, .045 Stainless
• Coil Capacity: 1 or 2 depending on whether single or double-lashing
• Length: 22.5 in. (570mm)
• Width: 10.6 in. (270mm)
• Weight: 40lbs (34kgs.)
