JONARD | Universal Cable Stripping Tool | #UST-525
JONARD TOOLS | PART #UST-525
Universal Cable Stripping Tool
DESCRIPTION
The Jonard Tools UST-525 cable stripping tool is designed to strip COAX, Network Cables, and Telephone Cables for quick and easy termination. Strips CAT3 through CAT 8 network cables. Includes a built-in cutter, a separate slot for Flat Cable and 4P/6P style cable, a hook-and-loop shield-fold strip, and a large finger loop for smooth rotation. Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric in one pass. This universal stripping tool features the following:

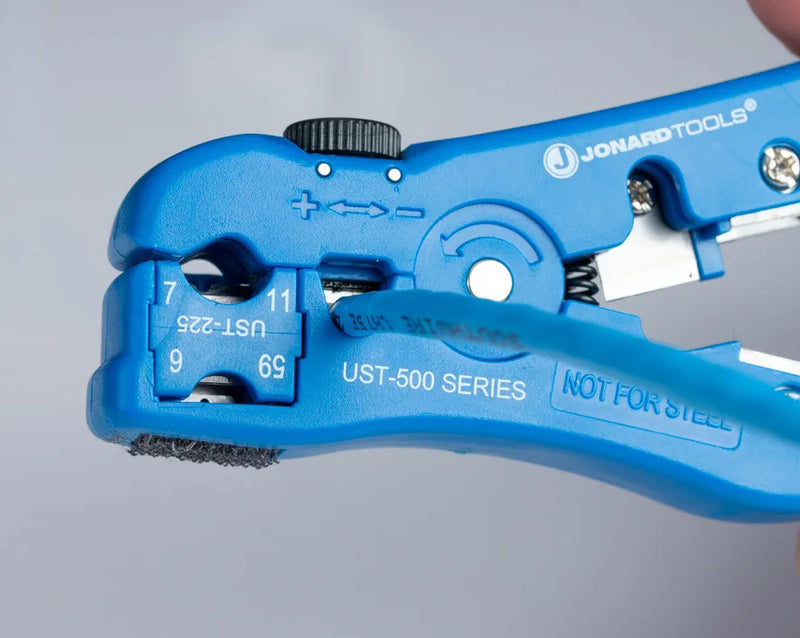

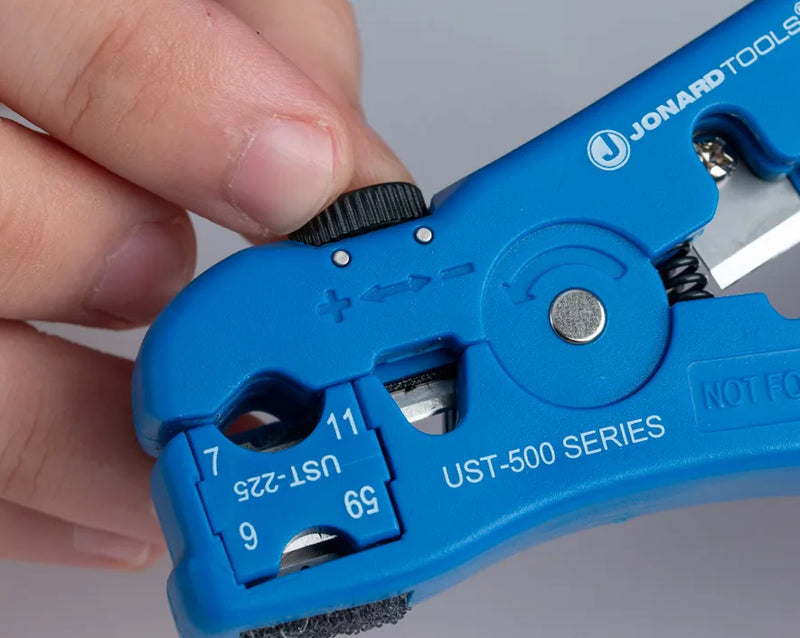

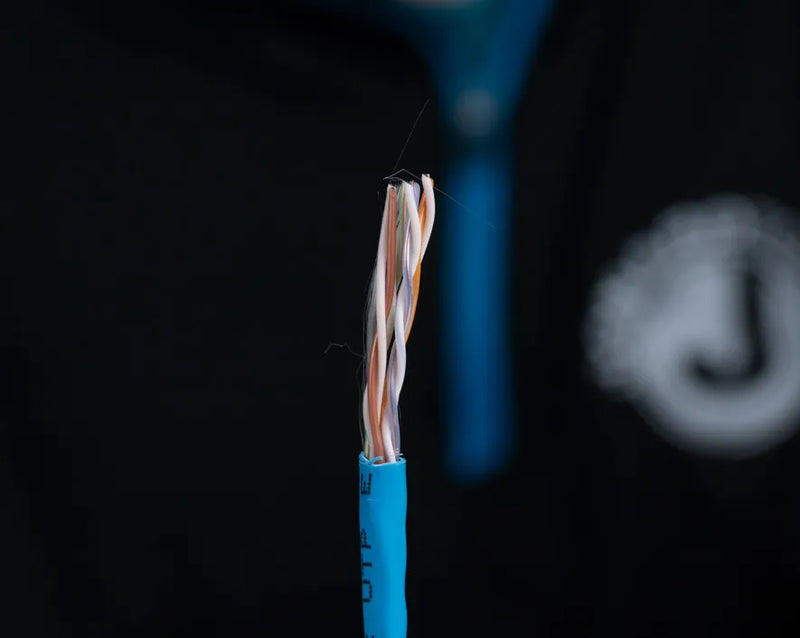

- Adjustable stripping hole strips CAT3 through CAT 8 PVC and Plenum network cables
- Cable stop on the cartridge ensures precise stripping without need to make adjustments

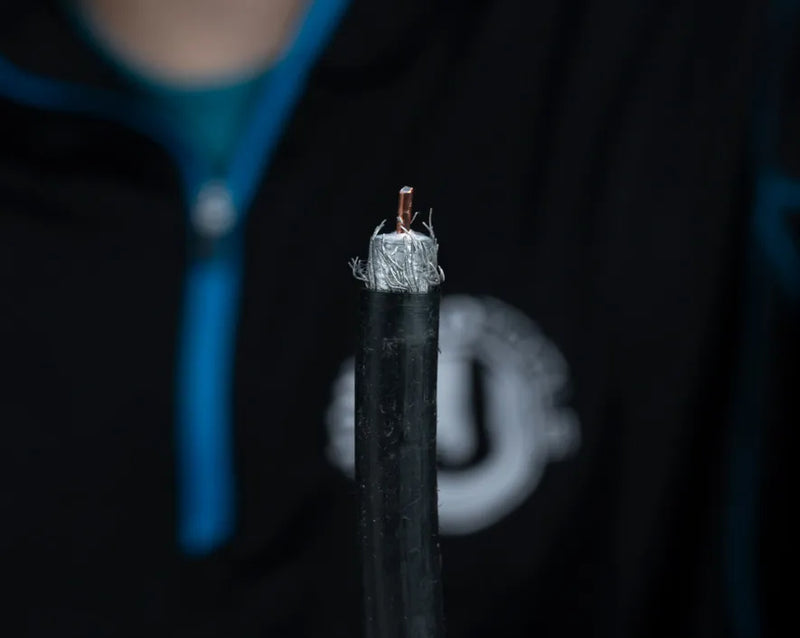

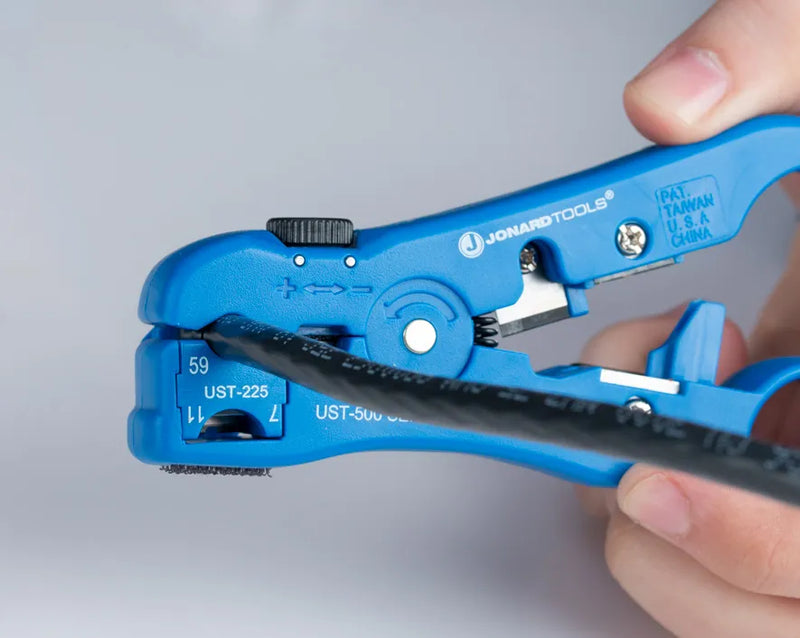

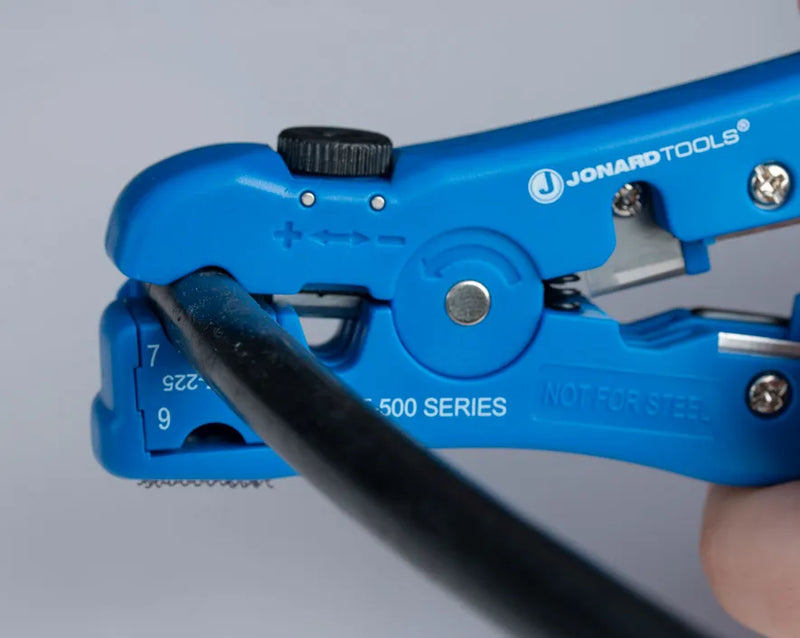

- Included blade cartridge (UST-225) provides a 2-level strip on RG59, RG6, RG7, and RG11 COAX Cables for F, BNC, and RCA connector termination
- High carbon steel blades last over 5,000 strips on each side

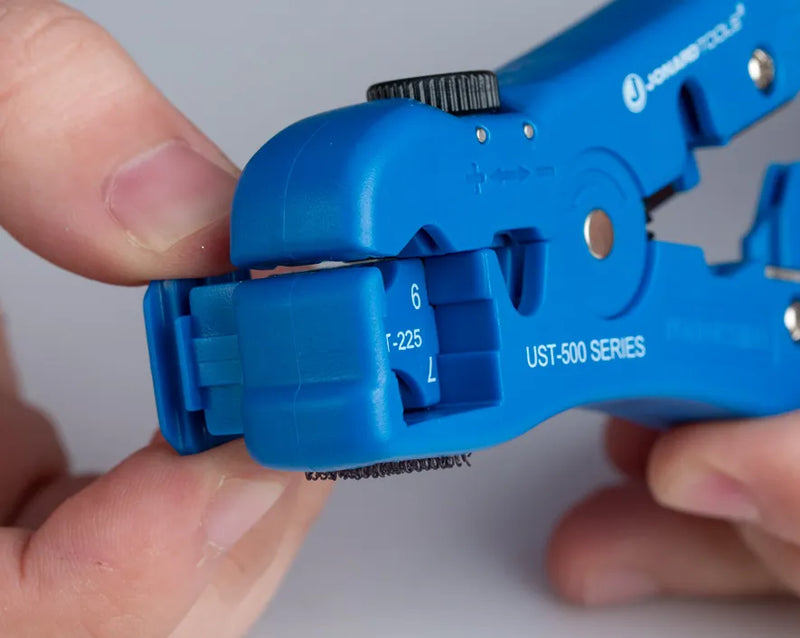

- Cartridge is reversible for ambidextrous use

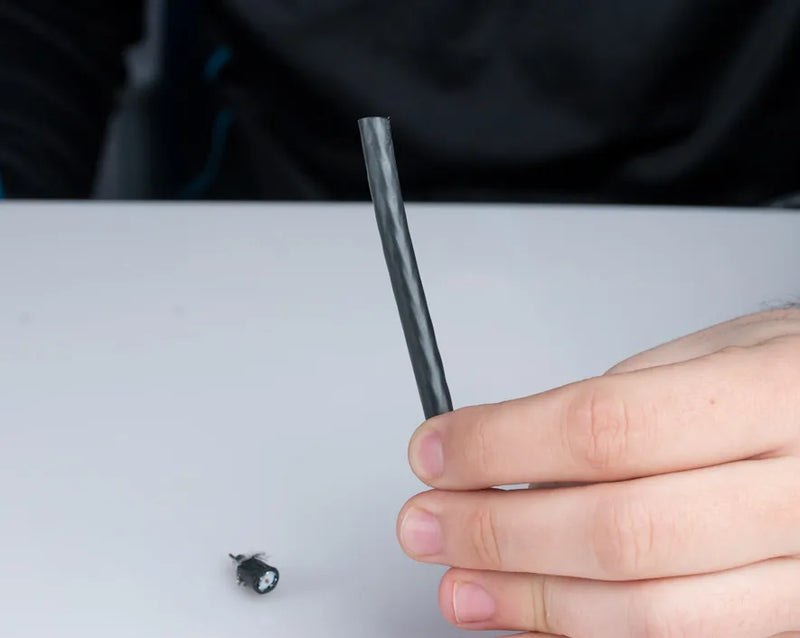

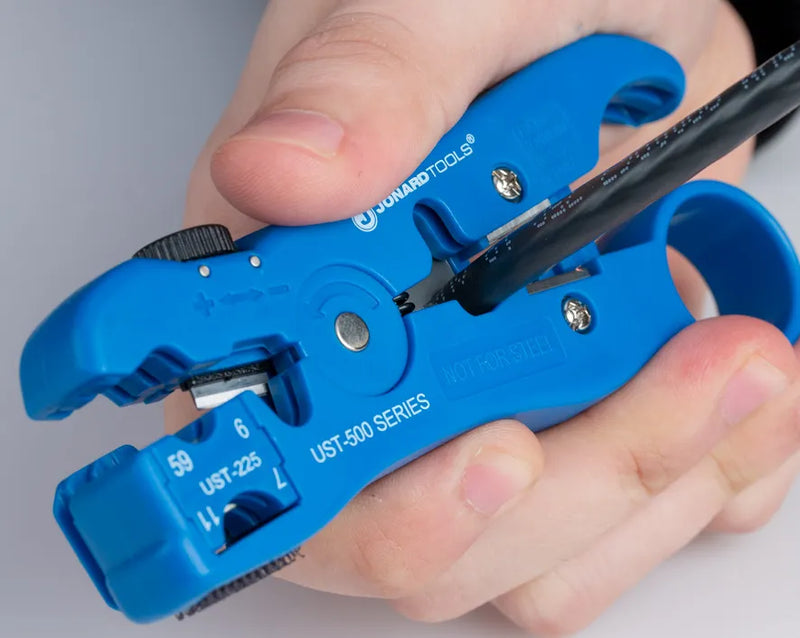

- Cutter is included to cut all types of cables

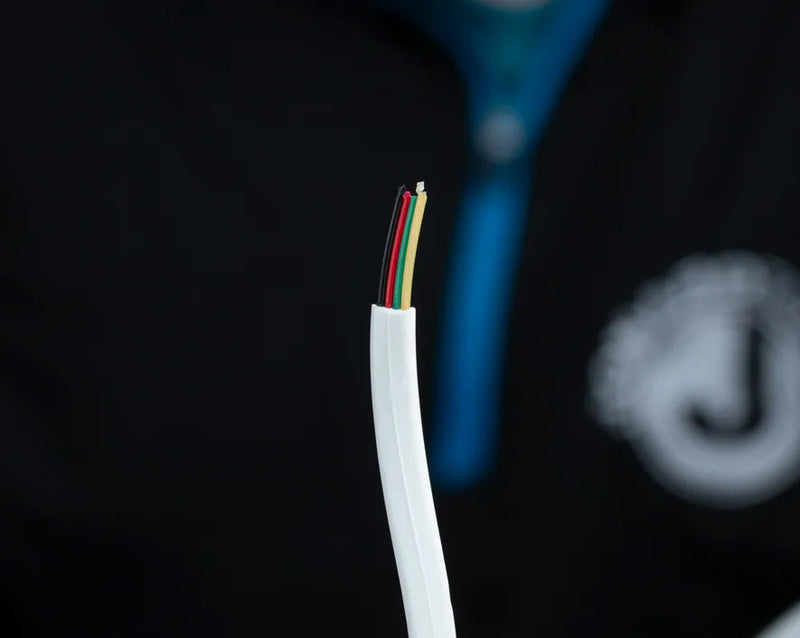

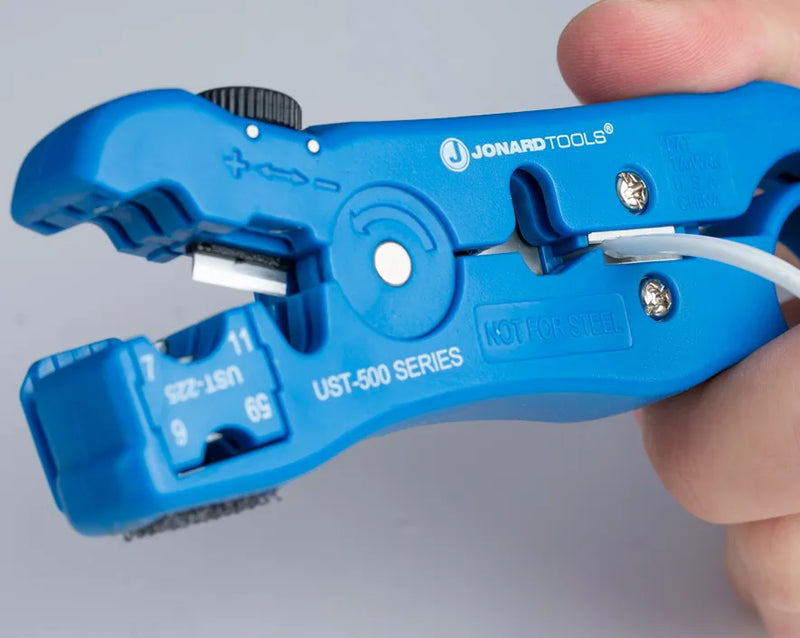

- Separate stripping slot included for stripping Flat Cable and 4P/6P style cable
- Hook and loop strip on bottom of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
-

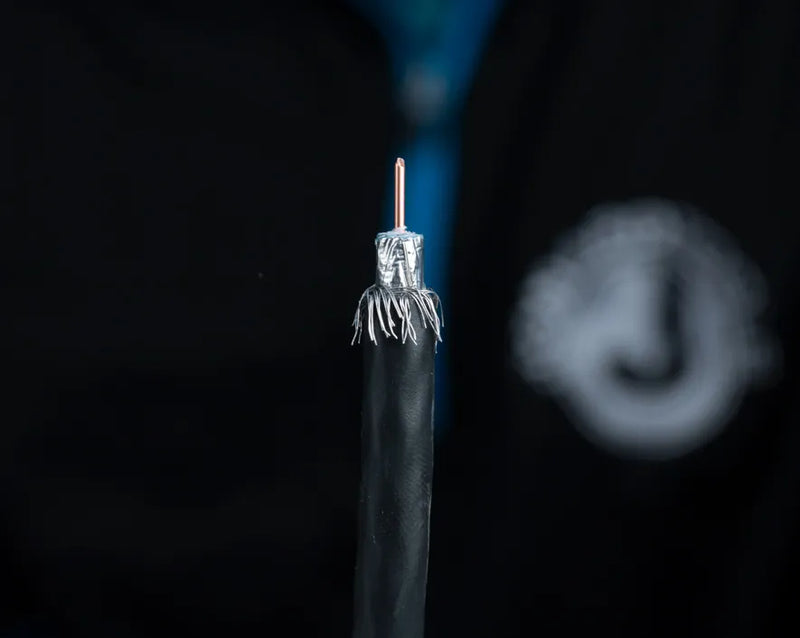

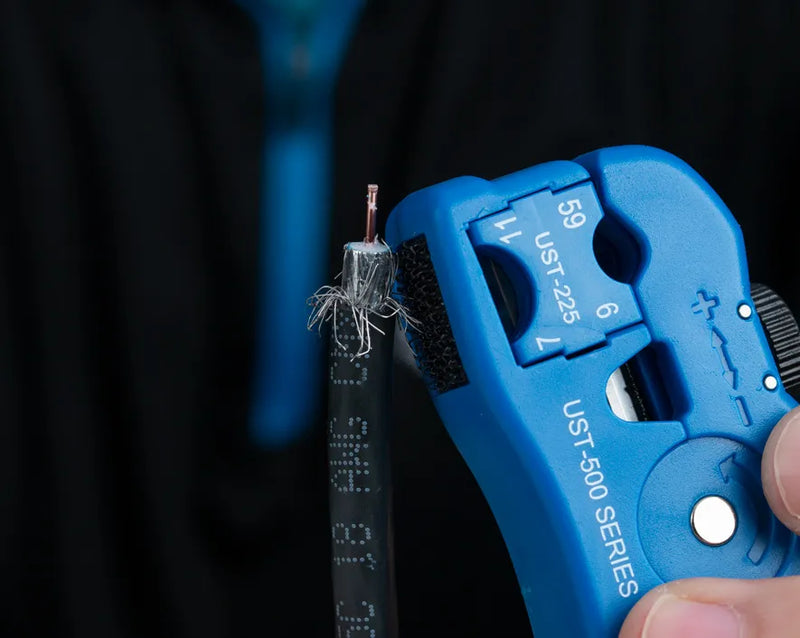

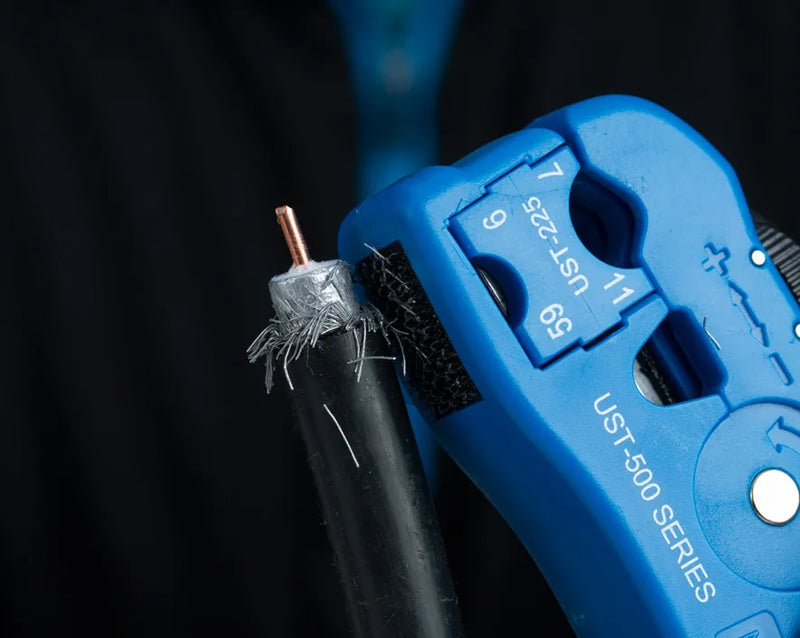

Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
DOCUMENTS
Universal Strip Tool Datasheet
SPECIFICATIONS
| Cable Type |
COAX, Network, Flat Telephone Cable, CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT7A, CAT 8 |
|---|---|
| Cable Size |
RG-59/6/7/11 COAX, Network up to 1 cm (0.39"), Flat Cable up to 1 cm wide |
| Strip Length |
Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Wire Gauge |
22 AWG to 26 AWG (23 AWG solid, 26 AWG stranded) |
| Dimensions | 4.96 in x 2.8 in x 0.94 in (12.6 cm x 7.1 cm x 2.39 cm) |
| Weight | 0.15 lb (65.83 g) |
| UPC # | 811490016071 |
Common Questions About the Jonard Tools UST 525 Universal Cable Stripping Tool
What is the Jonard Tools UST 525 used for?
The Jonard Tools UST 525 is used to strip coaxial, network, and telephone cables for fast, accurate termination during installation and repair work.
Who is this tool designed for?
This tool is designed for technicians, installers, and contractors working with coax, Ethernet, and flat telephone cables in telecom, networking, and residential applications.
What makes the UST 525 different from standard cable strippers?
The UST 525 combines multiple stripping functions in one tool, including a reversible cartridge, adjustable network cable stripping, flat cable stripping, and an integrated cutter for greater versatility in the field.
At a Glance
• Universal cable stripper for coax, network, and telephone cables
• Supports RG59, RG6, RG7, RG11, and CAT3 through CAT6A cables
• Reversible cartridge and adjustable stripping for precise results
• Compact design with integrated cutter for field efficiency
